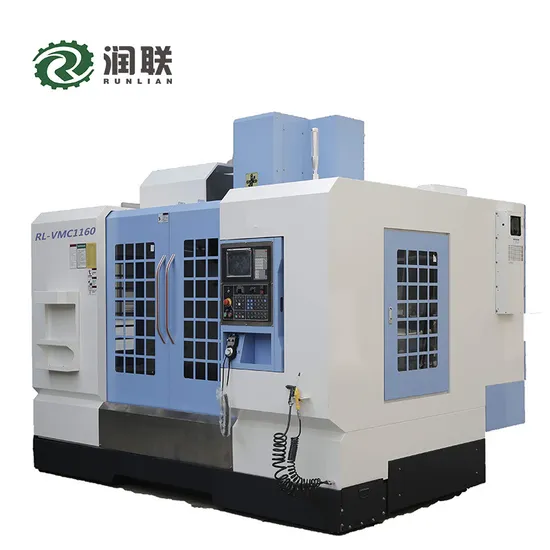

Metal Processing Electric Meter Parts CNC Vertical Machining Center
| US$33,000.00 | 1 unit (MOQ) |
Basic Info.
Model NO.
VMC1160
Type
Worktable Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE
Condition
New
X/Y/Z Travel
1100mm/600mm/600mm
Spindle Speed
10000rpm
Spindle Power
10/15kw
Spindle Taper
Bt40
Positioning Accuracy
0.003
Repeat Positioning Accuracy
0.0015
Table Size
1200mm*600mm
Max. Table Loading
900kg
T Slot
5-18-100
Cutting Speed
1-10000mm/Min
X.Y.Z Axes Ball Screw Diameter
40
Power
380V/220V/415V/50(60)Hz
Machine Net Weight
6.5t
Overall Dimension
3200mm*2550mm*2600mm
Transport Package
Wood Packaging
Trademark
OEM
Origin
China
HS Code
8457101000
Production Capacity
1000unit/Year
Packaging & Delivery
Package Size
3400.00cm * 2760.00cm * 2800.00cm
Package Gross Weight
6500.000kg
Product Description
CNC 3 Axis Vertical Machining Center Milling Machine For Metal
Product Description
vmc 1160 vertical milling machine is
composed of base, column, middle
sliding saddle, table, headstock,
operation panel, tool magazine,
pneumatic system, lubricant system,
cooling, lighting, protection system,
CNC system, electrical system.
Detailed Photos
Product Parameters
| Specifications | unit | VMC1160 |
| X/Y/Z travel | mm | 1100/600/600 |
| Distance from spindle nose to table surface | mm | 120-720 |
| Spindle Power | kw | 11/15 |
| Spindle speed | rpm | 10000 |
| Spindle Taper | BT40 (Φ150) | |
| Positioning Accuracy | mm | ±0.003 |
| Repeat Positioning Accuracy | mm | ±0.0015 |
| Table Size | mm | 1200x600 |
| Max.Table loading | kg | 900 |
| T-Slot | 5-18-100 | |
| X/Y/Z rapid speed | M/min | 36/36/36 |
| Cutting Speed | mm/min | 1-10000 |
| X/Y/Z axes ball screw diameter | Φ40 | |
| X/Y/Z axes servo motor power | kw | 3.0/3.0/4.5 |
| Linear width X/Y/Z | mm | 45/45/45 |
| Guideway No. X/Y/Z | 2/2/2 | |
| Slider No. X/Y/Z | 6/4/6 | |
| Max.power consumption | kw | 25 |
| Air | Mpa | 0.5-0.7 |
| Power | 380V/220V/415V/50(60)Hz/3ph | |
| Ambient Temperature | 0ºC-42ºC | |
| Relative humidity | ≤80% | |
| Machine Net Weight | T | 6.5 |
| Overall Dimension | mm | 3200x2550x2600 |
Hot Products
Company Profile
Packaging & Shipping
FAQ
1:How can I choose the most suitable machines?
Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Sharper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client's specifications requirements,it would be a little longer.
4.Where is our factory located? How can I visit there? Our factory is located in Weifang City, Shandong Province, 261071 China. You are warmly welcomed to visit us.
5. What is your trade terms?
FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
7: What's the MOQ?
1 set .(Only some low cost machines will be more than 1 set ).
