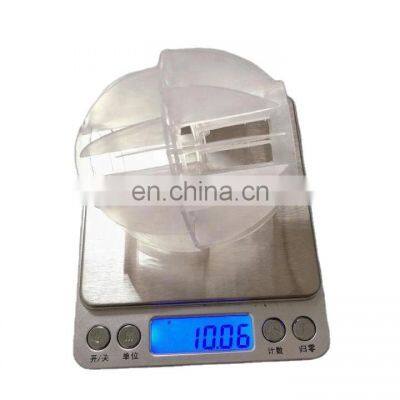

Polyhedral hollow ball for tower packing/ Plastic Tower Packing Filter Media

Product Description

Product Description
Product DetailsProduct DetailsPolyhedral hollow ball for tower packing/ Plastic Tower Packing Filter Media Polyhedral hollow ball for tower packing/ Plastic Tower Packing Filter Media is using polypropylene (PVC) plastic l, synthesized from two sides of a spherical, each hemisphere on twelve half the fan blade, the two hemispheres of the fan blade staggered.The specific surface area is big, packing is characterized by high void fraction.But because the leaf number, the more the shading effects between each other, is not conducive to the liquid distribution and wetting;Most liquid in sphere hollow column, hinder the gas flow, thus resistance is bigger.This kind of packing used in water treatment engineering.Specification (mm)Specific surface area(m²/m³)Accumulation number(n/m³)Packing density(kg/m³)Φ2546085000145Φ3830028500115Φ502361150058Φ76110780092.5Polyhedral hollow ball for tower packing/ Plastic Tower Packing Filter Media structurePolyhedral hollow ball synthesized from two sides of a spherical, each hemisphere on twelve half the fan blade, the two hemispheres of the fan blade staggered, in the middle of the polyhedral hollow ball along the circumference of a reinforcing ring, the ring of the up and down all the twelve pieces of ball valve.Ball valve mutual crisscross, up and down along the central axis in distribution. Polyhedral hollow ball for tower packing/ Plastic Tower Packing Filter MediaPolyhedral hollow ball structure performance1, high gas velocity and the blade, small resistance;2, large specific surface area, can fully solve the gas-liquid exchange;3, polyhedral hollow ball has great capacity of production, small resistance and large elasticity of operation, etc.4, light weight, high strength, large free space, high temperature resistance, corrosion resistance, good surface hydrophilicity can, small wind resistance, less power consumption, large specific surface area and adapt to a variety of processing equipment of the solvent. ApplicationApplication Polyhedral hollow ball for tower packing/ Plastic Tower Packing Filter Mediapolyhedral hollow ball widely used in chlorine gas, oxygen removal, in addition to carbon dioxide absorption tower, exhaust gas purification tower, acid mist purification tower, and other environmental protection equipment.Our WorkshopOur WorkshopPolyhedral hollow ball for tower packing/ Plastic Tower Packing Filter Media Packing & DeliveryPacking & DeliveryHigh Quality Moving Bed Biological Reactor for Water Treatment0.1m3/bag by woven bag, 20GP can load 28 m³, total is 280bag. 40GP can load 59m³, total is 590bags, 40HQ can load 68 m³, total is 680bag. We can disign different packing according to your requirements.Polyhedral hollow ball packing deliverytime20 ft container, within 7 days can finish production. 4-5m³ production per day Related ProductsRelated ProductsSuspended Ball Two-double ball which made of PP & PE,Outer structure is two net-shaped spheres, Inner structure is revolving sphere. Act as waste water treatment & Bio-film Reactor.Combined fillerCombined filler applied in waste water treatment of petrochemical, food, textile, Dyeing , leather, Pharmacy.Soft filler/water treatment .Elastic fillerHigh efficient water treatment process in purifying organic wastewater, whose most important part is the bio-membrane attached on the carrier.Polyhedral hollow ball fillerBiochemical ballTube settler Contact UsContact UsIf you have some interets about our Polyhedral hollow ball for tower packing/ Plastic Tower Packing Filter Media welcome to contact us. We will reply you with detail information within 24 hours.
