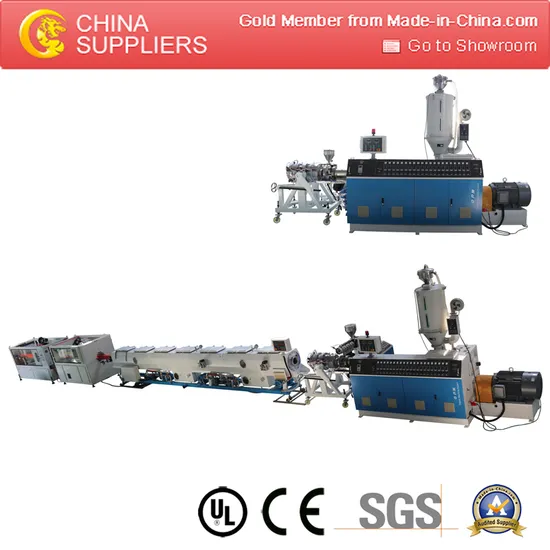

High Quality PE/HDPE Pipe Production Extrusion Line

Product Description

Product Application of PE/HDPE Pipe Extrusion Production Line
P:0086 13817556740;
GPM Company devoloped a new type of pipe production line for PE, PP and other polyolefin pipes, all models with advanced PLC/PCC modular intelligent control system, in order to realize the whole production line automation and real-time dta recording and closed-loop control, the production line has some high yield, wide adaption of raw materials, sustained and stable production of high quality products.

Technical specifications for PE/HDPE Pipe Production Line
Model	Pipe Spec(mm)	Single screw extruder	Max output(kg/h)		Total power(kw)
GWG63-PE	Φ20-Φ63	GW65/38	250-300		75/90
GWG110-PE	Φ63-Φ110	GW65/38	250-300		90
GWG250-PE	Φ75-Φ250	GW75/38	500-550		185
GWG450-PE	Φ160-Φ450	GW90/38	700-750		250
GWG630-PE	Φ315-Φ630	GW120/33	900-1100		280
GWG800-PE	Φ400-Φ800	GW150/33	1000-1200		315
GWG1000-PE	Φ630-Φ1000	GW150/33	1000-1200		315
GWG1200-PE	Φ800-Φ1000	GW120/33 & GW90/38	1500-1700		280/220

Main Features PE/HDPE Pipe Production Line
1) High output, capacity can be improved 30-50% at same main power motor condition.
2) High production line speed, Φ20mm pipe can reach 35m/min
3) Haul-off and cutter can use servo control
4) Optional equipment automatic weighing measurement and thickness control system.
High capacity Single Screw Extruder
Special design of barrel, screw structure inner cover and forced cooling system, 50% output higher than normal type.
2-16 claws haul-off machine, choosable acoording to different pipe diameters, all can equiped with servo control system.
High efficiency planetary cutter
Powerful pipe winding machine
For choosing the proper machine and saving your time, please read these bellow guides carefully
1). What kinds of plastic machinery do you need ? Or what material do you want to process?
2). What capacity do you want? (kg/h )
3). What is the max and min size of the finish products .For example, the width and thickness of sheet(mm)?
4) What is the electric device you need ? Siemens, Omron or domestic ?
5) When do you want the machine? (Times for delivery)
6) Other requirements about the machine you want.
if you are interested in this machine ,please contact me:
mob : +86 13915723896 ( or +86 13817556740 )

Jeremy He
