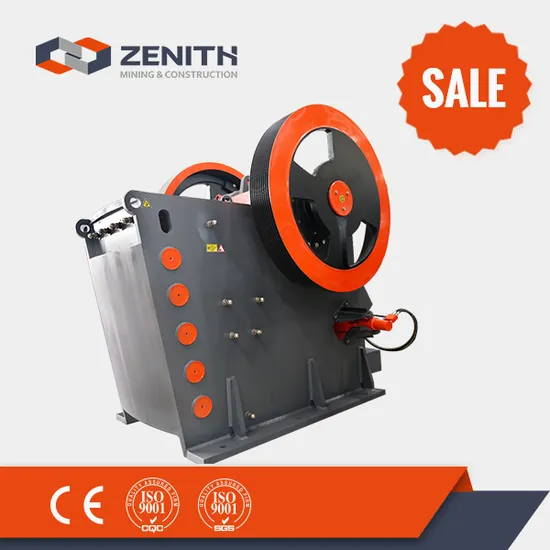

Environmental Protection High Efficiency Jaw Crusher Machine with 50-200tph

Product Description

Environmental Protection High Efficiency jaw crusher machine with 50-200tph
jaw crusher machine introduction:
jaw crusher machine is easy to install, operate and maintain. As per feedback, our experts will make continuous improvements on our products to meet customers' changing needs. Every feature of Zenith jaw crusher machine has been carefully designed to provide superior quality and performance. It is widely used in fields of mining, metallurgy, construction, smelting, hydropower and chemical industries etc. Zentih has competive jaw crusher price for you.
jaw crusher machine Advantages:
1. High efficiency and low operation cost
2. Flexible capacity
3. Simple structure and easy to operate
4. Over loading protection
5. Easy replacement of wearing parts
6. Long service life
7. High reliability
8. Wide ranges of choices
9. Alternative ordinary and hydraulic types
jaw crusher machine work principle:
The working principle of jaw crusher machine is very simple. The whole crushing process rely on the relative motion of the two jaw plates. One of the jaw plates stay still while the other move against it. And with the movement, the materials between the two plates would be crushed into small elements. While the plates move against each other, the materials would be crushed and while plates move away from each other, the broken materials which are smaller enough would drop through the discharging opening. And due to the simple structure, jaw crusher machine is easy to maintain and repair. These features promote its popularity to a great extant.
jaw crusher machine application
jaw crusher machine is a new type of crusher designed by our company which is following the traditional jaw crusher. The bearing of jaw crusher machine using integral cast steel structure, improve the stability of the whole, More to meet the automated production needs of customers.
[Applications]: Ore crushing, construction aggregate production, construction waste crushing, water conservancy and hydropower engineering, highway, railway, bridge construction and other industries.
[Applicable Materials]: Granite, marble, basalt, limestone, quartz stone, river gravel, iron ore, copper ore, etc.
jaw crusher machine technical data:

Model	Feed Opening (mm)	Max Feeding (mm)	Discharge Opening (mm)	Capacity (t/h)	REV (r/min)	Power (kw)	Motor Model	Machine Size (mm)
PEW250×1000	250×1000	220	20-40	15-50	330	6-37	Y250M-6/37	1400×1850×1310
PEW250×1200	250×1200	220	20-40	20-50	330	6-37	Y250M-6/37	1400×2050×1310
PEW400×600	400×600	350	35-85	15-70	250	6-37	Y250M-6/37	1920×1460×1840
PEW760	760×1100	620	75-200	150-350	270	6-110	Y315L1-6/110	2600×2500×2200
PEW860	860×1100	720	100-225	200-500	240	6-132	Y315L2-6/132	3300×2320×3120
PEW1100	1100×1200	930	150-275	300-650	210	8-185	Y355L1-8/185	4140×2660×3560
