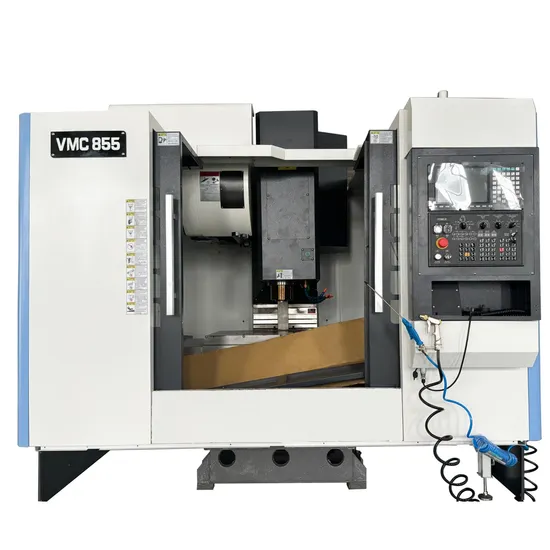

Vmc855 CNC Vertical Machining Center Optional 3/4/5 Axis CNC Drilling and Milling Machine
| US$23,500.00-24,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
VMC855
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools
Movement Method
Contour Control
Control Method
Semi-Closed Loop Control
Numerical Control
NC
Processing Precision
<=0.008
Performance Classification
Economical CNC Machine Tools
Condition
New
Rail
Hiwin
System
GSK or Syntec
Clamping
Pneumatic
Tool Magazine Capacity
24
Machine Weight
4800kg
System Language
English
Working Table Size
1000*550mm
X/Z/Y Drive
800/550/550mm
Tool Size
Bt40
Working Base Bearing Capacity
500kg
Installable Accessories
Chat with Supplier
Transport Package
Wooden Box
Specification
3200*2400*2600mm
Trademark
Xinshiheng
Origin
Taizhou
HS Code
8458110090
Production Capacity
2000 Pieces/Year
Packaging & Delivery
Package Size
340.00cm * 260.00cm * 280.00cm
Package Gross Weight
5000.000kg
Product Description
Product DescriptionDetailed Photos
| List of Main Accessories (VMC855) | ||||
| No. | Name | Quantity | Supplier | Remark |
| 1 | System | 1set | Syntec | Syntec 22MA |
| 2 | Spindle Set | 1set | ABIG | 8000rpm electric spindle |
| 3 | Timing Belt | 1set | Japan | UNITTA |
| 4 | Screw Bearing | Each 1 set | Japan | NACHI |
| 5 | Linear Guide Rail | Each 1 set | Taiwan | HIWIN |
| 6 | Breaker | 1 set | Delixi | / |
| 7 | X,Z axis ball screw | Each 1 set | Taiwan | HIWIN |
| 8 | Air Service Unit | 1pcs | Taiwan | AIRTAC |
| 9 | Power Switch | 1pcs | South Korea | LS |
| 10 | Contactor | 1 set | / | France(Sch-neider) |
| 11 | Tool Magazine | 1 set | / | 24 knifes/ATC |
| 12 | Cutting fluid pump | 1 set | Zegong | 40W |
| 13 | Auto Lubrication Pump | 1 set | Baoteng | / |
| 14 | Oil-water Separator | 1 set | / | / |
| 15 | Cleaning Air Gun | 1 set | / | / |
| 16 | Seperate Handwheel | 1 set | / | / |
| 17 | Cool-heat-exchanger for Electrical Cabinet | 1 set | / | / |
| Working Base | ||||
| Size | mm | 1000*500 | ||
| Bearing capacity | kg | 500 | ||
| T-slot size(each) | mm | 18*5 | ||
| Processing Range | X axis drive | mm | 800 | |
| Z axis drive | mm | 550 | ||
| Y axis drive | mm | 550 | ||
| Spindle nose to table | mm | 140-690 | ||
| Spindle nose to column | mm | 600 | ||
| Spindle | Taper hole | BT40 | ||
| Revolving Speed | rpm | 50-8000 | ||
| Max. output torque | N.m | 70 | ||
| Spindle Motor | Kw | 11/15 | ||
| Spindle type | Timing Belt | |||
| Tool | Shank | MAS403 BT40 | ||
| Rivet | MAS403 BT40-I | |||
| Feeding | Three-axis drive motor torque(X/Y/Z) | Nm | 18/18/28 | |
| Fast feeding velocity | m/min | X:24 / Z:24/Y:24 | ||
| Feed Speed | mm/min | 1-20000 | ||
| Power Capacity | Power Capacity | kVA | 25 | |
| Position | Positioning Accuracy | mm | 0.01 | |
| Repeat Positioning Accuracy | mm | 0.008 | ||
| Machine tool volume | Height of machine | mm | 2600 | |
| Floor space | mm x mm | 3200x 2400 | ||
| Weight | kg | 4800 | ||
Company Profile
Certifications
Customer Reviews
Exhibitions
Packaging & Shipping
FAQ
1.What is the payment Terms?
A:30% initial payment when order,70% balance payment before shipment;lrrevocable LC at sight.When we receive theadvance payment,we will start to make production.when the machine is ready,we will take pictures to you.after we gotyour balance payment we will send the machine to you.
2. What is your trade terms?
A:FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, it can be ready the machine within 15 days. if you need to customized, the time will be little longer.You can place order according to delivery time and ship time. We will give you the answer accordingly.
4. What is your minimum order quantity and warranty?
A: MOQ is one set, lathe warranty is one year and system warranty is three year
5. What is the package of the machines?
A:The machines standard will be packed in wood case. If the machine is very heavy, we will reinfore the box with iron frame.
