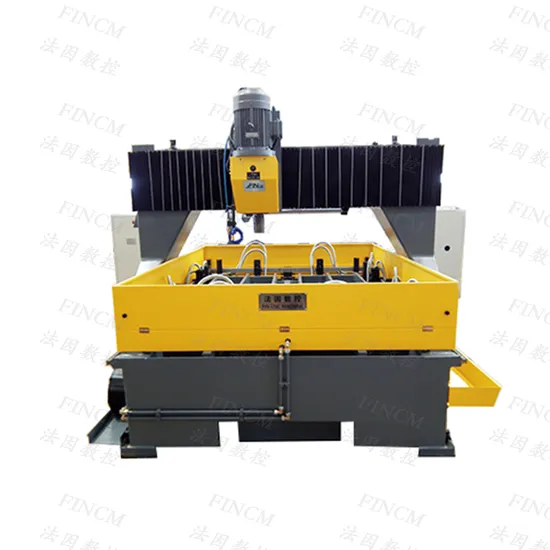

PHD2016 FINCM Gantry Movable Vertical Flatbed High Speed Carbide Alloy CNC Drilling Machines

Product Description

PHD2016 FINCM CNC Gantry Movable Flat Steel Plate High Speed Drilling Machine

Product Description
Product Parameters
Main Technical Specifications:

Specification name	Items			Specification valve
Workpiece dimension	Material overlapping thickness			Max. 100mm
	Width ×length			2000mm×1600mm one piece
				1600mm×1000mm two pieces
				1000mm×800mm four pieces
Spindle	Spindle boring			BT50
	Drill diameter			Max. Φ50mm
	Gearshift method			transducer stepless speed change
	Rotate speed			0-2000r/min
	Travel length			350mm
	Process feeding			Servo motor driven
Workpiece clamp	Clamp thickness			15-100mm
	Clamp cylinder number			12
	Clamp force			7.5kN
	Clamp start			Foot switch
cooling liquid	Recycle design			Forced circulation
	Cooling mode			Spray cooling
Hydraulic	Clamp pressure			6MPa(60kgf/cm2)
	Capacity of tank			About 120L
Air pressure	Air source			0.4MPa(4kgf/cm2)
Motor	Spindle			15kW
	Feeding			2.0kW
	Hydraulic pump			2.2kW
	Cooling pump			0.25kW
	X axle servo system			2.0kW
	Y axle servo system			1.5kW
	Chip conveyor			0.75kW
Machine dimension	LxWxH			About 5500×2950×2900mm
Weight	Motor			About 7500kg
	Clip system			About 800kg
Control axle number		X,Y,Z(X,Y,Z axle simultaneous control)
Travel range		X axle	2000mm
		Y axle	1600mm
		Z axle	Max. 350mm

List of Free Accessories to be shipped together with the machine:

NO	Code	Name	Quantity
1	BT50-40	Hilt	1
2	BT50-I	Pull nail	1
3		"O"ring 16×2.4mm	5 pcs
4		"O"ring 11×1.9mm	5 pcs
5		"O"ring 50×3.1mm	1 piece

Key Outsourced Components List:

NO.	Name	Brand	Country
1	Linear guide rail	PMI/HIWIN	Taiwan (China)
2	Hydraulic pump	JustMark	Taiwan (China)
3	Electromagnetic valve	Atos/Yuken	Italy/Japan
4	Servo motor	Inovance	China
5	Servo driver	Inovance	China
6	PLC	Inovance	China
7	Computer	Lenovo	China

Company Profile
Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.
The company drafted many China national standards for CNC angle line machine and CNC beam drilling sawing machine and CNC plate drilling machine.
Cooperative Supplier

Product Process Control

Customer Praise:

Sale Networks

Customer praise:
FAQ:
1. When can you arrange shipment?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. What can you do if my machines have problems?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Which machine model shall I choose when I purchase from you?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
5. What's your machine's market share in China?
Our market share in China is about 70%+, and we've exported to 50+ countries across the globe market, since year 1998.
