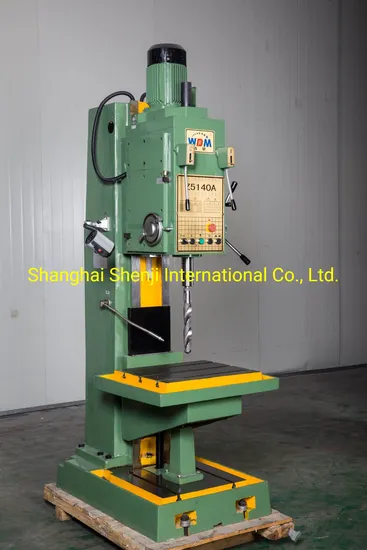

Z5140A Box Type Square Column Vertical Drilling Machine
| US$3,900.00-8,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
Z5140A
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
1
Hole Diameter
50-100mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE
Condition
New
Transport Package
Wooden Case
Trademark
SJMC
Origin
China
Production Capacity
50units/Month
Product Description
Vertical Drilling Machine Z5140A with box type and squre tableProduct feature
1. Max. drilling dia -40mm. Applicable to the work of the drilling expansion, technological requirements, such as tapping cutter.
2. Rigid tool strong, stable and high accuracy.
3. Resin sand bed casting process.
4.Hand wheel attached to Z5140B which makes the work table flexible, with coordinate table.But Z5140A can't, the worktable just can move up and down.
5.Applicable to the work of the drilling expansion, technological require ments, such as tapping cutter.
6.Rigid Tool strong, stable and high accuracy.
7.Bed resin sand casting process.
Technical parameters
| Specification | Units | Z5140A | Z5140B |
| Max. drilling diameter | mm | 40 | 40 |
| Spindle taper | morse | 4 | 4 |
| Spindle travel | mm | 250 | 250 |
| Spindle box travel | mm | 200 | 200 |
| Number of spindle speeds | step | 12 | 12 |
| Range of spindle speeds | r/min | 31.5-1400 | 31.5-1400 |
| Number of spindle feeds | step | 9 | 9 |
| Range of spindle feeds | mm/r | 0.056-1.80 | 0.056-1.80 |
| Table size | mm | 560×480 | 800×320 |
| Longitudinal (cross) travel | mm | / | 450/300 |
| Vertical travel | mm | 300 | 300 |
| Max.distance between spindle and table surface | mm | 750 | 750 |
| Motor power | kw | 3 | 3 |
| Overall dimension | mm | 1090×905×2465 | 1300×1200×2465 |
| Machine weight | kg | 1250 | 1350 |
