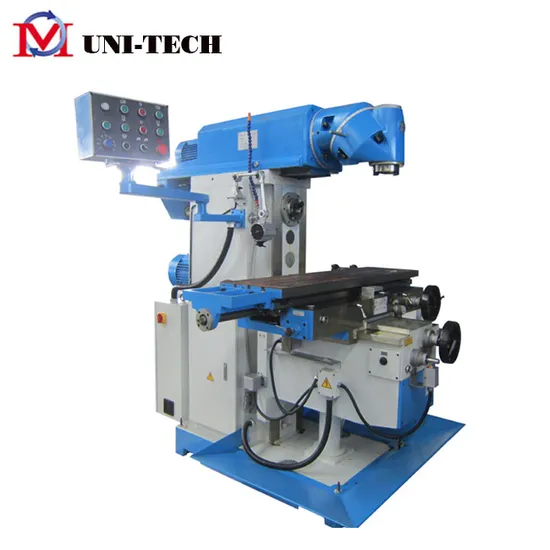

Universal Milling Machine Price for Sale XL6432
Basic Info.
Model NO.
XL6432
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Name
Unviersal Milling Machine
Table Size
1325X320mm
Table Travel
750X320X460mm
X Axis Feed
30-750mm/Min
Y Axis Feed
20-500mm/Min
Z Axis Feed
15-375mm/Min
Spindle Taper
ISO50
Arm Travel
550mm
Distance Vertical Spindle to Table
196-656mm
Distance Horizontal Spindle to Table
20-480mm
Vertical Spindle Speed
60-1750rpm
Horizontal Spinldle Speed
60-1800rpm
Vertical Motor
4kw
Horizontal Motor
5.5kw
Transport Package
Ply Wooden Case
Origin
China
HS Code
84595900
Production Capacity
80sets/Month
Product Description
universal milling machine price for sale XL6432Universal milling machine Feature:
1.Driven by servo motor;
2.Table automatic feed on X,Y,Z;
3.Automatic rapid feed X,Y,Z.
4.Rotary table can be ordered at special request;
5.ISO 50 spindle taper;
6.Milling head can swivel 360 degree;
7.The work table can swivel ±45 degree;
8.High spindle speed;
9.Powerful main motor.
Universal milling machine specifications
| Specifications | Unit | XL6432 | XL6432C | XL6432CL |
| Table size | mm | 1325X320 | 1600X320 | |
| Table travel (X/Y/Z) | mm | 750/320/460 | 1100/320/450 | 1300/320/450 |
| Table feed(X/Y/Z) | mm/min | 30-750/20-500/15-375 | ||
| Spindle taper | -- | 7:24 IS050 (H) 7:24 IS040 (V) | ||
| Arm travel | mm | 550 | ||
| Distance between spindle nose and table surface | mm | 196-656 | 196-646 | |
| Distance between horizontal nose and t able surface | mm | 20-480 | 20-470 | |
| Distance between spindle axis and arm surface | mm | 200 | ||
| Spindle speed range | r.p.m | 12steps 60-1750 (V) 12steps 60-1800 (H) | ||
| T-slots(NO./width/pitch) | mm | 3/18/70 | ||
| Main motor power | Kw | 5.5 (H) 4 (V) | ||
| 3 to feed Ac servo motor torque | N.m | 10 | ||
| Overall size | mm | 1800x2100x2000 | 2245x2100x2000 | 2520x2100x2000 |
| Net weight | kg | 2635 | 2700 | 2750 |
Universal milling machine standard accessories:
| Iterm | Model | Quanlity |
| 7:24 middle cover | 7:24 ISO50/MS4 | 1 |
| Horizontal arbor assembly | Ф27 | 1 |
| Horizontal arbor assembly | Ф32 | 1 |
| Drawbar | M24 | 2 |
| Double-ended wrench | S22-24 | 1 |
| Double-ended wrench | S17-19 | 1 |
| Double-ended wrench | S36-41 | 1 |
| Inner hexagonal wrench | 5 | 1 |
| Inner hexagonal wrench | 10 | 1 |
| Inner hexagonal wrench | 14 | 1 |
| sleeve | M24 | 1 |
| Washer | M24 | 1 |
| Taper shanl sets milling cutter arbor | 7:24 ISO50-Ф32 | |
| Operation manual | 1 | |
| The packing list | 1 | |
| certification | 1 | |
| EP100 series servo drive manual | 1 |
Universal milling machine optional accessories:
1.3-axis DRO(SINO)
2.LED work light
3. machine vice
4.Spindle cover
5. milling chuck
6.CE standard
7.Rotary worktable
Universal milling machine more photos:
If you are interested in universal milling machine, pls contact us
TENGZHOU UNI-TECH CO.,LTD
Contact person: Kitty Xu
