Vertical Universal Turret Milling Machines Manual Milling-Machine

Product Description

One-stop Shopping
Please click on the picture to view the product category you are interested in

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

Product Description

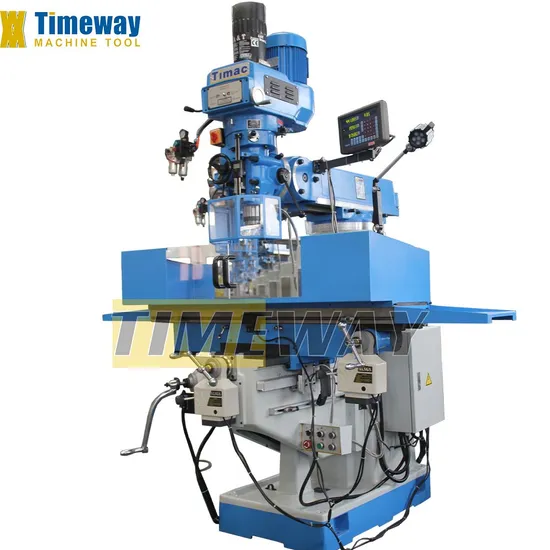

Turret Milling-Machine Manual Milling Machine
1 These robust and stable universal milling machines are ideal for drilling and milling simple to difficult workpieces in single part production, repair shop, training etc.
2 Base and column integrated casting, to gain better verticality and stability.
3 The bed, knee, table guide way and table surface are high-frequency quenched and precision polished, with hardness ≥HRC45.
4 The guide way on saddle is lined with TF wearable material, which make machine accuracy stability.
5 T-slots not extend to the end of table, which makes is with high rigidity and long using life; Both sides of the central T-slot was precision
polished with high linear and orientation accuracy.
6 Worktable features large clamping area, and expand the worktable size for customers to choose.

SPECIFICATION		UNIT	M250C(M250D)	M300(M300A)	M330(M330A)
Table size		mm	254x1270/254x1370	305x1370/305x1500	330x1370/330x1500
Longitudinal travel(X)		mm	820/920	870/1000	820/1000
Cross travel(Y)		mm	410	360	380
Vertical travel(Z)		mm	400	380	460
T-slot(No. /width)		mm	3/16	3/16	3/16
Ram travel		mm	470	500	500
Distance from spindle to table		mm	0-400	0-350	0-450
Spindle taper		-	ISO40	ISO40	ISO40
Spindle quill travel		mm	127	127	127
Spindle speed		rpm	16steps, 50HZ: 65-4500/60HZ: 80-5440(Optional: Variable 65-3750)
Spindle quill automatic feed		mm/r	0.038/0.076/0.152	0.038/0.076/0.152	0.038/0.076/0.152
Main motor power		kw	3.7	3.7	3.7
Mill head swivel angle		°	±90°	±90°	±90°
Mill head tilting angle		°	±45°(Fix)	±45°(Fix)	±45°(Fix)
Dimension of package	One	mm	1516x1550x2080	1566x1650x2080	1800x2020x2200
	Two	mm	1650x1790x2170	1720x1800x2175	1800x2200x2180
Gross weight(One)		kg	1490	1650	2200

X/Y/Z-axis guide type:
M250C: double dovetail guideway/rectangular guideway/rectangular guideway
M300: double dovetail guideway/rectangular guideway/rectangular guideway
M330: double dovetail guideway/rectangular guideway/rectangular guideway

STANDARD ACCESSORIES: Setp Pulley Mill Head; Draw Bar; Working Lamp; Oil Pump; Coolant Pump; Chip Collecting Tray; Electric Cabinet; Toolbox And Tools

OPTIONAL ACCESSORIES: Variable Speed Mill Head; Inverter Mill Head; Air Draw Bar; Slotting Head; DRO; Gear Box Power Feed; Power Feed; Vise; 8pcs/set Collet Chuck; 58pcs/set Clamping Kit; Universal Dividing Head; H/V rotary table; Tilting Rotary Table; Spindle Guard; Hung Up Panel Bracket; Luxury Panel Bracket; Luxury AI-alloy Panel Bracket; Table Guard; Luxury Table Guard; Quill Feed Ruler; Table Up-down Motor; Auto. Oil Pump; Plastic Splash Guard

Detailed Photos

Swivelable mill head from -90° to +90° allows for various operations

Table power feed and rapid feed on X, Y and Z-axis.

Lifting motor for Zaxis rapid moving up-to-down as optional.

Features:
1 For different model machines, mill head with standard spindle 16speed step pulley mill head driven 3HP/5HP motor, spindle diameter up to be100mm (only for 5HP motor).
2 All milling machines are also available with optional stepless mill head or inverter mill head, steplessly adjustable spindle speed with mechanic spindle brake.
3 Universal mill head can be turned by ram on the column, tilted ±45° front to rear, swivelled ±90° left to right; but user can choose fixed structure with no tilted ±45° for cutting intensity well.
4 X-axis adopts double dovetail guideways; Y-axis and Z-axis adopt double devotail guideways or rectangular guideways.
5 X/Y/Z-axis can optional equipped with electronic feeder for automatic feeds, Z-axis can also adopt high speed lifting motor for rapid lifting.
6 Spindle is chromium plated and features micrometer depth stop for quill automatic feeding cutting.
7 Standard lubrication system for all guideways; Powerful coolant device included in machine base.
8 Spindle guard, table guard, 2/3-axis digital readout, air draw bar, slotting head are optional. Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
