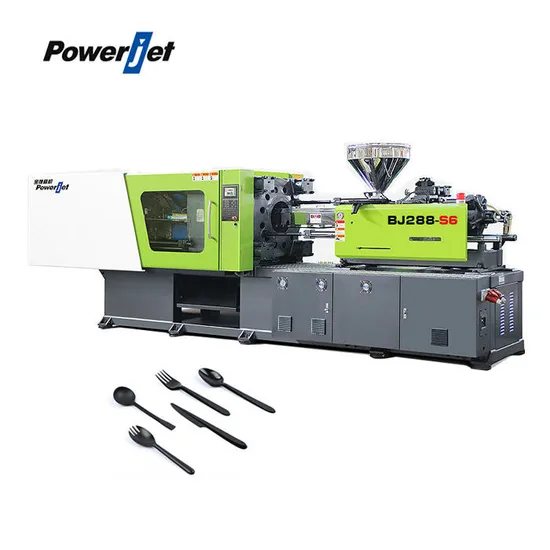

High-Speed Automatic Cutlery Manufacturing Machine - Powerjet 288ton

Product Description

Products Description
CLAMPING UNIT
Center-pressing toggle structure design, high clamping force, high rigidity, low deformation, production fast and stable.T-slot platen, convenient and fast mould change.
S6 Servo motor
With the adoption of servo control system, the injection pressure & speed 15 under closed loop controlled, and the stability and repeatability can be achieved.
V6 Variable Pump
Perfect combination between computer and high efficient proportional plunger variable pump saves electricity by 25%-50%. The economic efficiency is high.
Comparing with the hydraulic machine, S6 series can save more 50% of the power. Comparing with full electrical machine, energy saving is more obviously seen during pressure hold & cooling stage.
Imported top grade hydraulic components
High precision oil filter and full flow bypass oil filter
Screw is driven by low speed & big torque hydraulic motor
Finite element analysis is used on the structure of mould plates So that the structure of mould plate
is more logical,stronger and higher fatigue resistance.
Automatic dosing lubrication system guarantees mould clamping mechanism to be more stable and reliable.

High precision electric meter is used to control position. The control precision is +0.1mm.
Mechanical and double electric interlock protection devices guarantee the safety of the operators. (Machine above BJ400 is equipped with hydraulic safety device. )

Wear resistant hard chromium plated tie bar is featured with high-tensile and high strength.
Hydraulic motor with centering gear mould adjusting system makes mould adjusting system to be better.
Product Paramenters

DESCRIPTION			UNIT	BJ288-V6/S6
CLAMPING UNIT	Clamping force	KN	2880
		Opening stroke	mm	550
		Max.datlight	mm	1160
		Platen size	mm	890*890
		Space between bars	mm	610*610
		Max.mold height	mm	610
		Min.mold height	mm	280
		Ejector stroke	mm	145
		Ejector force	KN	77
INJECTION UNIT	Screw diameter	mm	60
		Screw L/D Ratio	L/D	21
		Injection Pressure	MPa	169
		Shot volume	cm3	791
		Screw stroke	mm	280
		Screw speed	rpm	170
POWER UNIT	Hydraulic system Pressure	MPa	17.5
		Pump motor power	KW	22/41
		Heater power	kW	13.8
