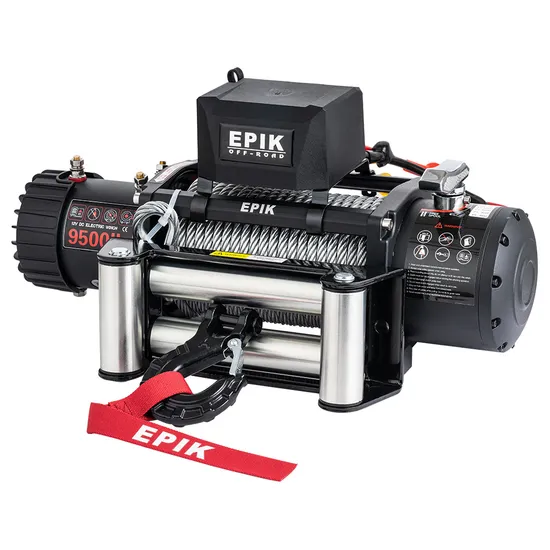

Epik Brand 9500lbs Waterproof Winch DC12V

Product Description

China Wholesale Quanlity 4x4 Car Winch 13500lb
SPECIFICATION:

SPECIFICATION:
Line Pull	9,500lbs/4,309kgs
Motor	5.2HP Sealed Series Wound
Gear Train	3-stage planetary
Gear Ratio	265:1
Brake	Automatic, 100% load holding
Clutch	Rotate 180 degrees
Solenoid	400A Sealed
Electric cables	23mm2, 40cm x 3pc, 180cm x 2pc
Wired Controller	3pin, 3.7m
Wireless Remote	Included
Rope	Wire Rope, 9.5mm×26m
Fairlead	4 way roller fairlead

LINE PULL

Layer of Wire Rope	Max Line Pull
1	9,500lbs/4,309kgs
2	8,432lbs/3,825kgs
3	7,640lbs/3,465kgs
4	7,086lbs/3,214kgs

LINE SPEED AND AMP DRAW (1st layer of rope on the drum)

Load	Line Speed	AMP Draw(12V)
No Load	30.2FPM/9.2MPM	75
2,000lbs/1,814kgs	20.7FPM/6.3MPM	95
4,000lbs/2,721kgs	18.0FPM/5.5MPM	195
6,000lbs/3,628kgs	13.8FPM/4.2MPM	240
8,000lbs/4,536kgs	10.2FPM/3.1MPM	291
9,500lbs/6,124kgs	7.9FPM/2.4MPM	325

DIMENSIONS
534 x 163 x 200mm (21.0" x 6.3" x 7.9")
STANDARD ACCESSORIES
Controller
Wire Rope with Hook
4 Way Roller Fairlead
Control Unit
Mounting Hardware
Hand-saver Strap
PACKAGE
Winch Weight: 36kgs/79.2lbs
Gross Weight: 38kgs/83.6lbs
Box Dimension: 600×245×370 mm (23.6"×9.6"×14.6")
FEATURES:
-20% higher loading test than rated line pull.
-Heavy duty series wound motor delivers superior torque output and faster line speed.
-3-stage planetary gearbox delivers the most reliable and durable performance.
-Automatic brake in the drum provide powerful braking.
-Rotating ring gear clutch for the rapid rolling out of rope with ease.
-Installation, operation and maintenance with ease.
-Much lower working noise.
-Waterproof IP67 certification.
-CE, RoHS certification.
