T3.6BMS 3.6HP 2-Stroke Outboard Engine
| US$299.00-499.00 | 2 Pieces (MOQ) |
Basic Info.
Model NO.
T3.6BMS
Engine Capacity
74.6cc
Engine
2 Stroke
Engine Position
Outboard
Condition
New
Engine Model
2-Stroke, 1-Cylinders, Reed Valve
Displacement
74.6cc
Borexstroke(Mm)
47*43
Full Throttle Rpm Range
4500-5500
Ignition System
TCI
Gear Shift
Forward-Neutral
Trim and Tilt System
Manual 1 Positions/Shallow Drive
Gear Ratio
2.08
Fuel Tank Capacity
Within 1.5L
Max Fuel Consumption
1.8L/H
Transport Package
Carton
Specification
pcs
Trademark
PARSUN
Origin
Suzhou
HS Code
84072100
Production Capacity
5000PCS
Product Description

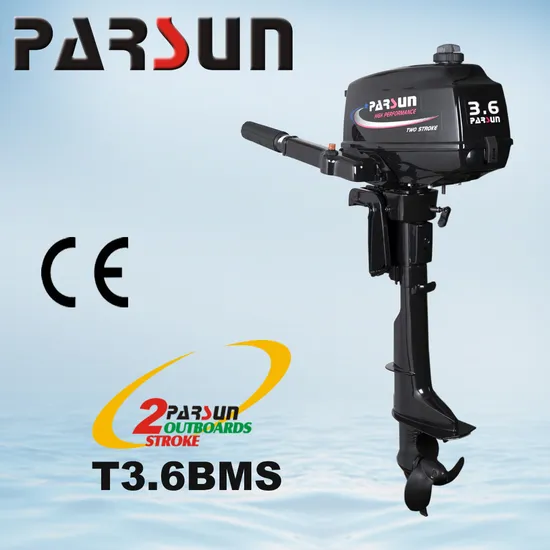

PARSUN 3.6HP 2-STROKE OUTBOARD ENGIEThis 3.6hp Parsun Outboard Motor 2 stroke short shaft outboard is perfect for a dinghy, tender, canoe or sailboat. Economical, compact and portable, providing you the most power in a small parcel. The lightweight Parsun 3.6hp outboard has a great horsepower to weight ratio and other features.
FEATURES
Compact and lightweight
Innovative TCI ignition system for easy starting
Twist grip throttle control for easy maneuverability and safety
Thermostat controlled water cooling system for consistent engine temperature
Safety Lanyard/Emergency Shutoff
Heavy duty aluminum propeller
360 degree with Forward-Neutral shifting
Convenient, easy to monitor oil level gauge indicator
Convenient 1.8L integral fuel tank
Heavy duty marine aluminum alloy for ultimate corrosion protection
Vibration reduction system
Start in gear protection
Through the prop exhaust
Shallow water drive
| Model | Unit | T3.6BMS | T3.6BML | |
| Item | ||||
| Overall length | mm(in.) | 597(23.5) | 597(23.5) | |
| Overall width | mm(in.) | 292(11.5) | 292(11.5) | |
| Overall height | mm(in.) | 968(38.1) | 1095(43.1) | |
| Transom height | mm(in.) | 381(15.0) | 508(20.0) | |
| Weight | Kg | 14.5 | 15.5 | |
| Full throttle operating range | r/min | 3800~5200 | 3800~5200 | |
| Maximum output | Kw (HP) | 2.643.6@5000 | 2.643.6@5000 | |
| @r/min | ||||
| Idling speed (Neutral) | r/min | 1.3E+07 | 1.3E+07 | |
| Cylinders | 1 | 1 | ||
| Displacement | cm 3 | 74.6 | 74.6 | |
| Bore ×stroke | mmin | 47×43(1.85×1.69) | 47×43(1.85×1.69) | |
| Ignition system | TCI | TCI | ||
| Control system | Tiller control | Tiller control | ||
| Starting system | Manual start | Manual start | ||
| Gear positions | Forward-Neutral-Reverse | Forward-Neutral-Reverse | ||
| Gear ratio | 2.08 (27/13) | 2.08 (27/13) | ||
| Trim and tilt system | Manual tilt | Manual tilt | ||
| Fuel tank capacity | L | Integral 1.5 | Integral 1.5 | |
| Maximum fuel waste | L /h | 1.8 | 1.8 | |
| Gear oil capacity | cm 3 | 100 | 100 | |
| Propeller options* | in | 3-7 1 /2"×7" or 3-7 1 /4"×6" | 3-7 1 /2"×7" or 3-7 1 /4"×6" | |
