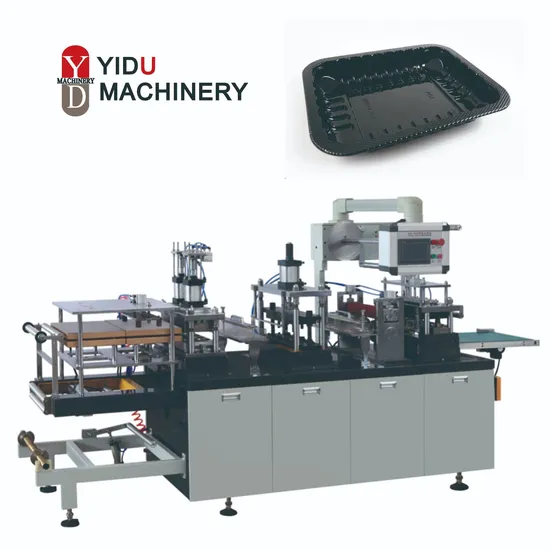

Factory Price Automatic Plastic Disposable Cup Lid Bowl Tray Container Thermoforming Forming Making Machine

Product Description

APPLICATION
Automatic plastic tray / lid making machine manufacturer is invented based on the mature technology of plastic thermoforming machinery, this is an improved model, more smart and easier to operate .It is mainly suitable for tho molding of HIPS PS PVC PET and other plastic sheets to produce various milk cup lids, milk tea cup lids, cola cup lids, coffee cup lids, spoons (soup spoons), saucer lids, snack trays, etc
FEATURES
1. Roll film loading, forming, hole punching, cutting, waste film winder, final products transmiting are working in the machine., compact structure& stable performance, easy operation.
2. Adjustable strock, easy and convenient mould change, suitable for variaty specifications
3. Adopt PLC controller and PC electric controller and touch screen.
4. Servo traction
PRODUCT DESCRIPTION

Model	DPP-550A
Punch frequency	8-30 time/min
Suitable Materials	BOPS HIPS PS PVC PET etc
Max Formed area	520×300mm
Max.Forming Depth	55mm
Thickness Range of Sheet (mm)	0.1-0.65mm
Air pressure	0.5-0.7MPa
Water Consumption (liters/min)	Use of water cooling or chiller cooling
Total power	380V/220V 50Hz
Heating Power (KW)	12kw
Overall dimension (L x W x H)	4250×1050×1800mm
Weight	1750kg
Noise indicators	≤75dBA

DETAILED PHOTOS
SAMPLES
PACKING &SHIPPING

Inner packing
Machines are wrapped with plastic film for protection
Outer packaging
Standard wooden case packaging for exporting
Loading
Loading goods by forklift
Port
Ningbo China / Shanghai China
