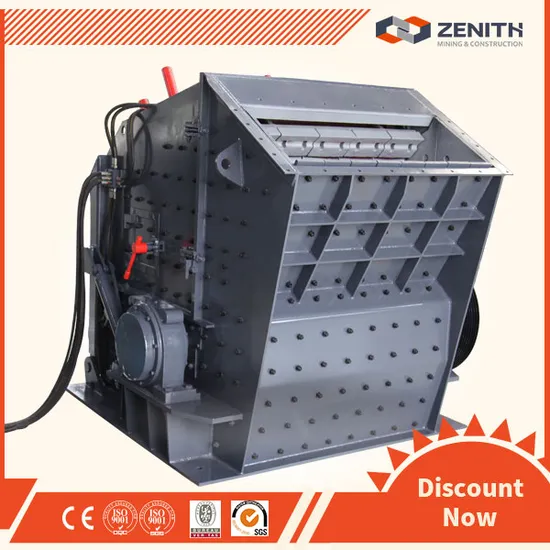

High Performance Used Granite Crusher Machine for Sale

Product Description

China supplier Used Granite Crusher Machine for Sale:

Granite Crusher Machine is the latest kind of impact crusher developed from PF impact crusher based on the Zenith's more than 20 years experience and leading technology in impact crusher. The PFW series impact crusher is also called European style impact crusher.
Used Granite Crusher Machine for Sale features:
1. Bearing adopts the integrated cast-steel structure, which ensures the perfect match with crusher frame. Meanwhile, it greatly increases the radial intensity of bearing seat;
2. Unique fixing device of blow bar brings higher reliability;
3. Reformative adjusting device decrease the time of machine stop and overhaul;
4. Self-own open-top device can quickly finish the replacement of wearing parts;
5. Larger bearing specification and higher carrying capacity;
6. Rotor analysis ensures stableness and reliability.
Used Granite Crusher Machine for Sale working principle :
This impact crusherGranite Crusher Machine materials with impact force. When the materials enter the blow bar area, they are crushed due to the high-speed impact of the blow bar and are thrown to the impact plates on the rotor for secondary crush. Then the materials will be shot back to the blow bar again for the third crush. This process repeats until the materials are crushed to the required size and discharged from the lower part of the machine.
Used Granite Crusher Machine for Sale technical data:
Two-curtain cavity hydraulic impact crusher

Model	Rotor Φ×L (mm)	Feed Opening (mm)	Max Feeding (mm)	Capacity (t/h)	Power (kw)	Motor Model	Machine Size (mm)
PFW1214II	1150×1400	1100×1430	500	130-200	4-132	Y315M-4/132	2400×2310×2550
PFW1315II	1300×1500	1200×1530	600	180-320	4-160	Y315L1-4/160	2700×2570×2800
PFW1318II	1300×1800	1200×1830	700	240-400	4-200	Y315L2-4/200	2700×2870×2800
PFW1415II	1400×1500	1450×1530	800	240-450	4-200	Y315L2-4/200	3000×2700×3070

Three-curtain cavity hydraulic impact crusher

Model	Rotor Φ×L (mm)	Feed Opening (mm)	Max Feeding (mm)	Capacity (t/h)	Power (kw)	Motor Model	Machine Size (mm)
PFW1214III	1150×1400	570×1430	250	90-170	4-132	Y315M-4/132	2550×2310×2100
PFW1315III	1300×1500	625×1530	300	180-270	4-160	Y315L1-4/160	2960×2570×2380
PFW1318III	1300×1800	625×1830	300	220-300	4-200	Y315L2-4/200	2960×2870×2380
PFW1415III	1400×1500	800×1530	350	280-350	4-200	Y315L2-4/200	3120×2650×2660
