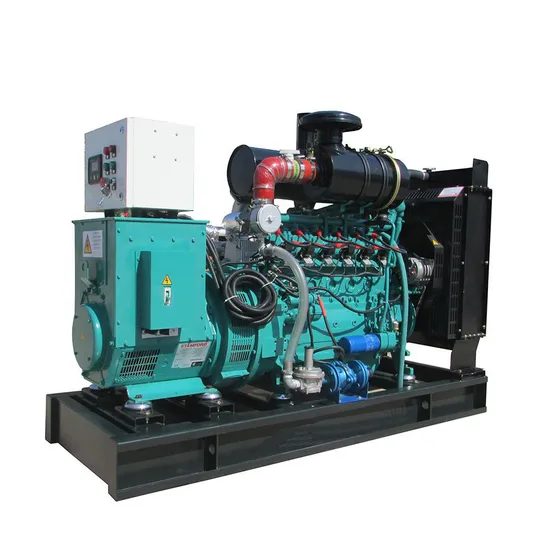

Man Weichai Cummins Engine Methane Biogas Natural Gas LPG Power Generator

Man Weichai Cummins Engine Methane Biogas Natural Gas LPG Power Generator

US$3,500.00-19,000.00 1 set (MOQ)

Basic Info.

Model NO.
PLG-XXGF
Output Type
AC Three Phase
Gas Source
Natural Gas
Certification
CE, ISO
Rated Power
10kw
Start Method
Electric Start
Rated Voltage
400/230V
Engine Brand
Weichai/Weifang Ricardo
Alternator
Alternatorbrushless
Used Field
Animal Farm or Others
Certificate
CE ISO
Frequency
50/60Hz
Rated Current
18A
Transport Package
Plywood Package by Seaway
Specification
gas
Trademark
PULITA ENERGY
Origin
Shandong, China
HS Code
85022
Production Capacity
500sets/Month

Packaging & Delivery

Package Size
250.00cm * 110.00cm * 150.00cm
Package Gross Weight
2600.000kg

Product Description

Product Description
Man Weichai Cummins Engine Methane Biogas Natural Gas LPG Power Generator
Requirments for Man Weichai Cummins Engine Methane Biogas Natural Gas LPG Power Generator
1.Methane should be at least 50%
2.The natural gas temperature should be between 0-60 ÂșC
3. No inpurity should be in the gas. Water in the gas should be less than 20g/Nm3.
4. Heat value should be at least 5200kcal/m3, if less than this value, the power of the engine will be declined.
5. Gas pressure should be 3-100KPa, if the pressure is less than 3KPa, booster fan is necessary.
6.The gas should be dehydrated and desulfurated. Make sure that there is no liquid in the gas. H2S<50mg/Nm3
Our Advantages of Man Weichai Cummins Engine Methane Biogas Natural Gas LPG Power Generator
This series gas genset choose HT485 engine which developed by our company assembled with Stamford ,Marathon , Leroy Somer or pther well - known brands alternator .
The power range from 8-60kw suit for natural gas , biogas , liquefied petroleum gas , landfill gas , biomass , applies to 8-10 hours uninterrupted power supply or standby power using .
1. unit-specific components, convenient maintenance, low cost.
2. good economy, low operating costs, long life unit.
3. using high-profile cabinet, integrated treatment diagnostic techniques. explosion-proof integrated process control technology. unit to achieve multi-level protection, run more secure

Advantages of our sales service :
1. we have obvious competitive on before-sale and after sale service.
2. our company can provide the products according to your requirements as soon as possible.
3. we have professional engineers to teach you use the generators and sophisticated workers provide 18 months warranty on spare parts .
4. six hours testing before out factory.
5. ISO9001 and CE approval.
6. The technical engineering personnel are qualified and experienced in poviding customers with all-round service
7. fast delivery.
Specifications of Man Weichai Cummins Engine Methane Biogas Natural Gas LPG Power Generator
Model of genset
PLTC-20GF
Model of engine
Ricardo,Man,Weichai,Cummins
Type
Four Stroke,Spark Plug Ignition
Model of alternator
Faraday
Rated speed(r/min)
1500
Rated power(kW/kVA)
20KW/25KVA
Rated voltage(V)
400V/230V
Rated frequency(Hz)
50/60
Rated power factor
0.8 lagging
Voltage regulation
Automatic
Supply connecting
3 phase 4 wire
Governor
Electric governor
Control model
Remote electric control, Hand control
Starting method
12V DC electric starting motor
Cooling method
Water cooling system

Model List of Man Weichai Cummins Engine Methane Biogas Natural Gas LPG Power Generator
Genset Model Engine Model Rated
Power
No. of
cylinders
Cylinder Piston Air intake
Mode
Alternator Brand Controller Brand
Bore Stroke
kW mm mm
PLTC-16GF PLT4B3.9-G1 16KW 4 102 120 Natural Faraday Smargen HGM6110
PLTC-20GF PLT4B3.9-G1 20KW 4 102 120 Natural Faraday Smargen HGM6110
PLTC-25GF PLT4BT3.9-G1 25KW 4 102 120 Turbo Faraday Smargen HGM6110
PLTC-30GF PLT4BTA3.9-G1 30KW 4 102 120 Turbo Faraday Smargen HGM6110
PLTC-34GF PLT4BTAA3.9-G1 34KW 4 102 120 Turbo Faraday Smargen HGM6110
PLTC-40GF PLT6B5.9-G1 40KW 6 102 120 Turbo Faraday Smargen HGM6110
PLTC-50GF PLT6BT5.9-G1 50KW 6 102 120 Turbo Faraday Smargen HGM6110
PLTC-60GF PLT6BTAA5.9-G1 60KW 6 102 120 Turbo Faraday Smargen HGM6110
PLTC-80GF PLT6CT8.3-G1 80KW 6 114 135 Turbo Faraday Smargen HGM6110
PLTC-100GF PLT6CTA8.3-G1 100KW 6 114 135 Turbo Faraday Smargen HGM6110
PLTC-120GF PLT6CTA8.3-G1 120KW 6 114 135 Turbo Faraday Smargen HGM6110
PLTC-150GF PLT6LTAA8.9-G1 150KW 6 114 135 Turbo Faraday Smargen HGM6110
PLTC-200GF PLTKTA19-G1 200KW 6 159 159 Turbo Faraday Smargen HGM6110
PLTC-250GF PLTKTA19-G1 250KW 6 159 159 Turbo Faraday Smargen HGM6110
PLTC-300GF PLTKTAA19-G1 300KW 6 159 159 Turbo Faraday Smargen HGM6110
PLTC-500F PLTKTA38-G1 500KW 12 159 159 Turbo Faraday Smargen HGM6110

Optional parts
FAQ: Q1.Are you a factory or trading company?
We have two modern factory. We have 50 factory workers and 5 of them are quality control and engineer guys. Welcome to visit our factory.
Q2. Is Your products the lowest price?
HAITAI take the quality into consideration prior. The price is based on the quality level and the order quantity. We have different quality level products for buyers option and discount is available from us when the order is big.
Q3.What's your warranty?
Re: All our products we offer one year warranty or 1500 hours which comes first.
Q4. If the goods in transit damage, how to do?
First of all, we will use stable packing, the possibility of the goods damaged during the shipping is low. If the goods is damaged during shipping and we covered the insurance, we will claim the insurance company and let them cover the loss. If there is no insurance cover, we will claim the shipping company and some times, we cover the loss of the goods for client.
Q5. Can we add our logo on products?
Yes, there are several ways to do this. We can put the label of your logo on the products or make the silk print of your logo on the products. It is free.
Q6. can we customize product?
OEM and ODM are welcomed from GT. We have rich experiences in this area.
