High Speed Auto Tissue Packaging Bundling Machine with Best Price

Product Description

Scope of Application:
Suitable for automatic packaging of flexible shaft paper multi-pack bagging.
Main performance and structural characteristics
1.Adopting servo drive, touch screen and PLC control system, the parameter setting is convenient and quick. Full automation of loading, material handling, bag opening, bagging, corner insertion, sealing and so on.(a);
2.Free, motorized and fast changeover between various package sizes.(b);
3.Fault self-diagnosis function, fault display at a glance(b);
4.Temperature is controlled by independent PID control, better suited to various packaging materials.;
5.All controls are realized by software, which is convenient for function adjustment and technology upgrading and performance upgrading.;
6.From bagging to sealing and forming, the whole process is protected by side guards, effectively avoiding the phenomenon of broken bags.The whole process is protected by side guards, which can effectively avoid bag breakage;
7.The sealing platen and the side guards cooperate to meet the user's demanding requirements for package tightness.(c);
8.Servo control of the four directions of the dynamic tensioning and bracing mechanism, effectively improving the stability of the bag opening and loading.The bag opening and loading stability is effectively improved.
Product Description

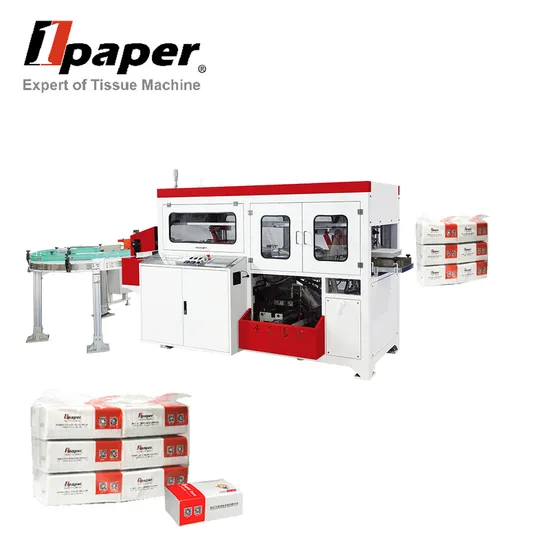

Automatic Soft Facial Tissue Bundler Packaging Machine
Application: Automatic packing and sealing for soft tissue, dry wipes and wet wipes.
Features: Double bag warehouse and double pusher design; small and exquisite machine;
can be used for both single-row and double-row.
Value: The simple production changing can save time. Small floor space improves the
utilization rate of the workshop.
Main parameters: High speed 60 sets/min, Middle speed 30 sets/min.

Tem/model		OPZ-30
Output		Stable speed: 15-20 bags/min
Packing Size		L150-500*W130-400*H75-110(mm)
Configuration		3-10 bags/packet
Mini air pressure requirement		5Mpa
Power supply		380V50HZ
Packing Film		PE precast bag
Surface		carbon steel
Power consumptio		18KW
Power supply type		Three-phase five-wire 380V 50Hz
Machine size		L2600mm*W1500mm*H1950mm
Machine weight		≈2000Kg
Color		white or customize

Product Parameters

Tem/model		OPFD Serirs
Folding type		V type
jumbo roll material		pulp paper
Folding specification	Length	depends on jumboroll width (1450/1800/2000/2800mm,optional)
	Width	175/180/190/210 optional
	Height	30-200sheets
Machine dimensions		L8629×W3000×H2190mm
Folding speed		160m/min
Driving power		1.5KW/SET
Motor power		5.5KW
Vacuum power		30KW
Power supply type		Three-phase five-wire 380V 50Hz
Machine noise		≤80dB
Air supply		0.5-0.7 MPa
Air consumption		200-260L/min
Auto transfer		speed:8-15logs/min
		counting sheet 30-200sheet
Machine weight		≈6000Kg

Tem/model		OPQ-358S
Original paper width		260-2000mm
cutting speed		0-360cuts/min
Diameter of blade		Ф610mm
Blade speed		1350R/min
Cutting length		90-300mm
Finished products height		20-150mm(20-250mm)
Cutting waste size		≥20mm
Total Power		6.02KW
Power supply type		Three-phase five-wire 380V 50Hz
Air supply		0.5-0.6MPa
Outline dimensions		2000mm×1880mm×1960mm
Machine weight		≈2000Kg

Tem/model		OPR Serirs
Packaging form		Three-dimensional
Packing material		CPP film,PE film,BOPP film
Packing specification	Length	95-230mm
	Width	80-120mm
	Height	30-150mm
Maximum packing dimensions		L230×W120×H150mm
Packing speed		≤128(bags/minute)
Heating power		7KW
Motor power		16KW
Total power		23KW
Power supply type		Three-phase five-wire 380V 50Hz
Machine noise		≤80dB
Air supply		0.5-0.7 MPa
Air consumption		200-260L/min
Outline dimensions	Main machine	L4280×W1450×H1915mm
	Conveying mechanism	L3850×W750×H1420mm
Machine weight		≈4000Kg

Company Profile Found in 2010
ZHEJIANGONEPAPERSMARTEQUIPMENTCO.,LTD.is a national high-tech enterprise and Zhejiang Specialising in ultra new enterprise . Focus on tissue paper equipment for 15 years, the main automatic tissue paper production line, automatic cotton soft production line, etc. It has rich experience in new factory preparation consulting of tissue paper. production workshop layout design, digital factory construction, production line transformation and upgrading, etc. it has sold well as 1000 customers in Kimberly-Clark, Vinda,Hengan, Gold Hongye and other 1000 customers in 60 countries or regions, etc., and is highly recognized.
ZHEJIANGONEPAPERSMARTEQUIPMENTCO.,LTD.
Our Workshop
Exhibition
Our Parthers
Certification
FAQ Q: Are you manufacturer or trading company?
A: We are the professional machinery manufacturer in packaging and printing industry for 15+ years covering an area of 8,000 square meters,have more than 104 workers.
Q: Where is your factory located? May I have a visit?
A: Warmly welcome! Our factory is located in Wenzhou city, Zhejiang Province, China.
Q: What is the advantages of your factory compared with other suppliers?
A: 1. Technical strength: We are the leaders of the Chinese packaging machinery industry. We have strong technical strength and can develop and produce high -quality and efficient packaging machines. we currently have 9 successful packaging and printing projects. We can provide you with a full set of solutions to meet the packaging needs of different industries. 2. Product quality: From accessories to finished products, we have strict quality control and detection processes to ensure the stability and reliability of the product.Providing solutions and services to 1,000+ customers across 50+ countries and regions, earning high recognition. Our product repurchase rate reaches 72.8%, with the highest individual customer repurchasing 27 times. Leading sales in the Arab and North African regions. 3. Product customization: We can customize design and production according to the needs of customers to meet the special requirements of different customers. Provide personalized solutions to help customers improve production efficiency and reduce costs. 4. After -sales service: After -sales service is one of our biggest advantages. We provide timely and professional technical support and maintenance services to ensure that we can quickly respond to the needs of customers, solve problems, and ensure the normal operation of the equipment. 5. Innovation ability: We continue to carry out technological innovation and product upgrade to meet the changes in the market and customer needs. Continuously improve the performance and functions of products and provide customers with better solutions.
Q: What information should I provide if I want to get a quotation?
A: First, paper type which you wanna make, second, the size of paper bag, third, the thickness of paper bag, after collect the basic information, then we will suggest the right machine model to you!
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from finished installation.
Q: How could we do after one year warranty period?
A: We also can do service for you, but you need pay salary for my technician 100-150USD/day.
Q: How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.
