Wide Format Digital Printing Machine UV Printer for Splashbacks Printing

Product Description

Wide Format Digital Printing Machine UV Printer for Splashbacks printing
Product Description

Technical Data	UV2030 Industrial series
Print Technology
Print Format	200 x 300 cm
Print Height	10 cm / 4 in ( Max. 40 cm / 16 in )
Head Model	Toshiba CE4, Auto Heating, 4~16 ph;Ricoh G5/G6,2-8ph
Color Set	CMYK+LM+LC+W+V; CMYK+W+V, CMYK+2W+2V; CMYK+W+CMYK
Control System	KNFUN, Toshiba Official Partner
RIP Software	UnitedFancy, Developed by Holland Aurelon
Print Direction	Uni / Bi-directional , Front / Rear Alternative
Resolution	4 PASS : 600 x 600 dpi 6 PASS : 600 x 900 dpi 8 PASS : 600 x 1200 dpi
Print Speed	Production mode: 15-18 sqm/h Quality mode: 12-15 sqm/h High resolution mode: 10-12 sqm/h
Machine Highlight
Heavy Duty Frame	Strengthened aluminum beam + Thicken steel base
Driving Mode	HIWIN linear rail + Servo motor + Lead screw + IGUS Drag chain
Protective Device	Anti-collision + Static eliminator
Work Table	Anodized aluminum table + Independent vacuum control
Ink System	Negative pressure Ink supply + White Ink stirring and circulation
Curing System	Imported UV lamp, 30000 Hours Lifespan + Water cooling Chiller
Height Detection	Automatic sensor
Others
Print Media	Glass, Ceramic, Acrylic, Metal, Leather, Plastic, Wood, PVC .. etc
PC configuration	Win7/ Win10, 64 bit, CPU≥ i5, RAM ≥8GB, Space for Disk C≥100G
Signal Transmission	Optical Fiber + USB 3.0
Color Control	Comply with ICC standards, With curve and density Adjustment function
File Format	TIFF/ JPEG/ POSTSCRIPT3/ PDF
Power Supply	AC220V,50/60HZ
Working Power	3.5 KW
Noise	Standby < 32 dB ; Working < 65 dB
Machine Size	4.6 m x 2 m x 1.45 m
Net Weight	1600 KG

Decoration Glass Printing
Decoration Wallpanel & Wall arts printing
YDM 2030 UV Printer with newest configuration 2030 uv printer equipped with 3500ml ink carriage with low ink warning system and white ink circuration&stiring system 2030 uv printer equipped with negative ink supply system,save your ink,and make printing work more frequently 2030 uv printer equipped with anti-collision device for printhead THKGuide Rail&ONK Belt for YDM 2030 UV Printer Higher printing accuracy Printing more stability

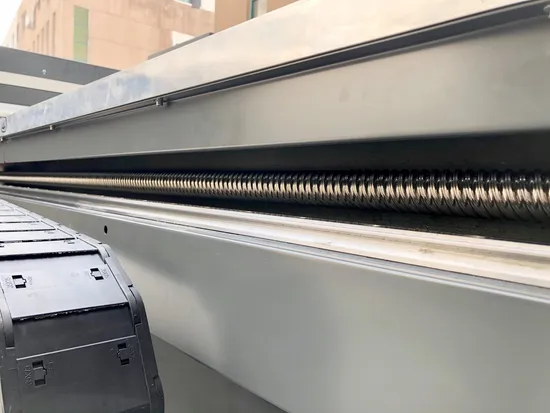

YDM 2030 UV Printer equipped with double static eliminators and anti-collision device Printing on plastic material more frequency,avoid inks splashing when printing printing work more safe and easier YDM 2030 UV Printer equipped with double lead ball screw instead of belt Higher printing accuracy Printing more stability Printer Applications 2030 UV Printer is usually used in Advertising,decoration and other industry 2030 printing machine equipped with Ricoh G5/G6,or Toshiba CE4M printhead,12-15sqm/h,it can reach your mass production demand. 2030 inkjet printers is used to print on advertising signs,bill board,shoes,leather,acrylic,metal,glass,aluminum sheet,ceramic tiles,plywood,furniture and other materials.
Team&Certifications YDM as the leading manufacturer of Inkjet printers and uv printers with around 20's experience in China,we have a professional service team to fix the problem on time for our customers from all over the world. YDM uv printers and inkjet printers already were certificated by CE,SGS,TUV officially 24 hours*7,professional service
Customers feedback:
Related Products YDM is the Professional manufacturer of Printing Machine,like A3 Printer,UV6090 Flatbed Printer,UV1313 Printer,UV2513 Industry Printing machine,UV2030 Industry Printing Machine,UV4030 Industry Printing Machine,More information,Pls clik below items:
FAQ
1.Do I Need White and Varnish Ink?
The limits to what you can print on are seemingly non-existent if you go with a printer that has white ink capabilities. That's
because white ink will help create high-quality graphics on rigid or flexible substrates, like acrylic sheets or backlit films,
and can also be used as a "base coat" for printing on non-white materials.
Varnish can make the printed picture more shiny, and at the same time can extend the fading cycle of UV ink. 2.What materials can UV flatbed printer print on? All flatbed media , such as PP/PVC board, KT board, Acrylic, Organic Glass,Metal,Tile, Phone case, Wooden etc. The UV printing reduce much work and trouble like lamination, fading, blistering,and save much working hours. Rigid signs board, hard carton or corrugated paper box, special market(like customize and decoration market): glasses, ceramic tiles, wood, even furniture.
3.What's RIP installation interface supported language?
Korean, German, French, Finnish, Dutch, Portuguese, Japanese, Spanish, Italian, English, Chinese (Simplified), Chinese
(traditional)
4.What about the after-sales service ?
We have many experienced technician, Provide the technical support for all of our customers ,We will teach you how to operate the machines until you master it. Sometimes our technician team will go abroad to test and repair the machines.
5.What about maintenance of the printer?
We suggest to power on the printer once a day. If you don't use the printer more than 3 days, please clean the print head with cleaning liquid and put in the protective cartridges on the printer (protective cartridges are specially used for protect print head) .
6.Are you a factory or a foreign trade company .
A factory, so we can supply the reasonable price printer and good service. Wide Format Digital Printing Machine UV Printer for Splashbacks printing
