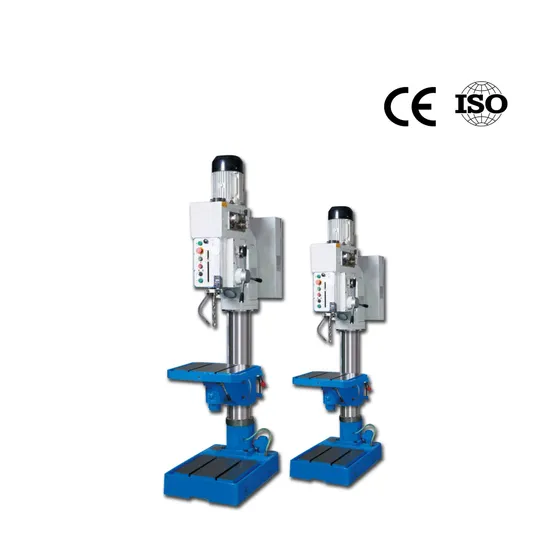

Vertical Drilling Machine Z5040 Senmo Cylindrical Vertical Drilling Machine
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
Z5040
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Max. Drilling Diameter
40mm
Max. Tapping Diameter
M27mm
Column Diameter
160mm
Spindle Travel
180mm
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84592900
Product Description
| Drilling Machine |
| Gear-driven Drilling Machine |
| Feature |
| New designed, pleasing appearance, compact construction, wide speed change range, easy to operate. Unique table with electric and manual lifting mechanism for easy operation. The table can be rotated 180°and can be tilted ±45° also, it is reliable and easy job can be done. Equipped with coolant system and tapping mechanism. Equipped with shortcut and overload protection, its electric system with powerful spindle motor, it is designed according to IEC standard. Characteristic protection device is safe and reliable. Ideal choice for single piece, small batch and mass production for drilling, counterboring, reaming, tapping, spot facing, etc. |
| Specifications | Z5040 | Z5050 |
| Max. drilling diameter | 40mm | 50mm |
| Max. tapping diameter | M27mm | M30mm |
| Column diameter | 160mm | 180mm |
| Spindle travel | 180mm | 240mm |
| Distance from spindle center to column center | 360mm | 360mm |
| Max. distance from spindle nose to table | 590mm | 570mm |
| Max. distance from spindle nose to base | 1180mm | 1160mm |
| Spindle taper | MT4 | MT4 or MT5 |
| Spindle speed range | 42-2050r/min | 42-2050r/min |
| Spindle speed steps | 12 | 12 |
| Spindle feed | 0.07 0.15 0.26 0.40mm/r | 0.07 0.15 0.26 0.40mm/r |
| Table size | 550x470mm | 550x470mm |
| Table travel | 550mm | 550mm |
| Base size | 450x440mm | 450x440mm |
| Overall height | 2330mm | 2380mm |
| Main motor | 2.2/2.8kW | 2.2/2.8kW |
| Coolant motor | 40W | 40W |
| N.W./G.W. | 755/815kg | 985/1045kg |
| Packing size | 105x68x253cm | 105x68x259cm |
| Standard Accessories | Optional Accessories |
| Drill chuck | Multi-spindles |
| Arbor | Angle vice |
| Taper sleeve | Safety guard |
| Drift | |
| Eyelet bolts | |
| Wrench |
Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
