Brightsail Chilli Crushing Machine Chilli Grinding Machine Spice Grinding Machine

Product Description

chilli crushing machine chilli grinding machine spice grinding machine Product Description
BSDF Chilli Crushing Machine Chilli Grinding Machine spice grinding machine is our latest advanced spice hammer mill set.
It combines coarse crusher,middle fine milling fine milling area(3 milling areas)together.

Material will be milled three times at the same time.
This machine has a very good effect for milling different kinds of food, like spice, herbs, milk powder and chemicals, animal feed...etc.
Technical data:

Model	BSDF-350	BSDF-450	BSDF-550	BSDF-750
Capacity(kg/h)	100-300	200-600	300-1000	700-1800
Output size(mesh)	12-150
Crusher motor(kw)	22	37	45	75
Blower(kw)	7.5	11	1.1	1.5
Discharge motor(kw)	0.75	0.75	15	18.5

Working method:
Material is fed into the mill chamber, pass through the high speed rotation caused by the three groups of knives one by one.
Material is crushed three times in one mill chamber, then become fine powder.
Between middle fine crush knife group and fine mill knife group, there is a device designed for preventing coarse granule go to fine milling area, so powder fineness is assured.
The rotor speed is controlled by inverter, different particle size is achieved by adjusting rotation speed. Detailed Photos
There are 3 groups of hammers in one mill chamber
1)This is the mill part, it combines coarse crusher area, middle fine milling area, and super fine milling area together.
2)It can grind big raw material into fine powder directly.(combines 3-stage grinding in one mill chamber)
3) From right to left, they are coarse crush area, middle fine mill area and fine milling area and blast area.Material fed in will be milled by the three areas to become fine powder directly.4) No screen in the mill chamber, change powder size by changing speed of inverter.
Features of BSDF Chilli Crushing Machine Chilli Grinding Machine spice grinding machine
1) no need screen or sieve in mill chamber, change powder particle size by changing speed through inverter;
2) Because it has no screen in mill chamber,when milling, there is no heat rising in mill chamber;
No need to worry power get stuck in the screens or product quality get affected by the heat from the mill.
That's why it is very suitable for grinding heat-sensitive material or material contains fiber or oil.
3) The mill part combines coarse crusher, middle fine mill and fine mill together, which means it can makes fine powder directly from big raw material, very effective.
Then,NO need to crush big material firstly.
4) It can save more power, its capacity is much bigger than other same motor type traditional hammer mill.
That's why when grinding most spices,you don't need to worry spice powder get stuck on the screens.
It can grind dry spices into 20~80 mesh.
And when grinding cassava chips,chickpea,powder can reach 150 mesh. (much finer powder than common hammer mill).

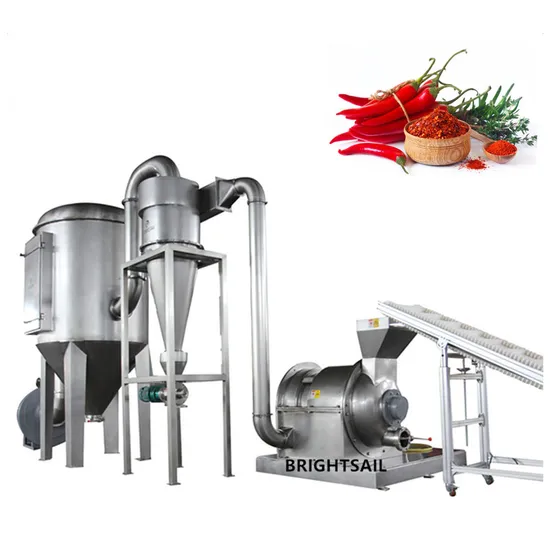

This picture below is our BSDF-750 Chilli Crushing Machine Chilli Grinding Machine spice grinding machine with screw feeder, sifting machine.
Our client uses this grinding system to make spice powder,grain flour, herb powder...etc
Company Profile
Our company-Brightsaill Machinery Co., Ltd is focus on the research of powder equipment, such as spice grinding machine, herb grinder machine, chemical powder mixer machine, pharmacy powder making machine... etc.
Our products can be applied in food, medicine, chemical and other industries and had won a good reputation.
After 15 year's development and accumulation, our company has been one of the most influential equipment manufacturers in the industry.
And we wish to grow up and develop together with all new and old customers.
Till 2022 year, we have exported machines to more than 75 countries.
Feedback
After Sales Service
Packaging & Shipping
*Usually small machine(BSDF chilli crushing machine chilli grinding machine) will be packed in the wooden case, and we can also pack it according to customers special request.*If machine is big(such as BSDF Chilli Crushing Machine Chilli Grinding Machine spice grinding machine), we will fix the machine inside container with steel wires and nails.Machine won't move inside the container.
