24X24 Woodcore/Chipboard Raised Access Floor with Vinyl/PVC/HPL Office Data Center Servo Room

Product Description

Woodcoe / chipboard raised access floor
anti static wood core raised floor
HPL PVC woodcore raised floor Light duty,Medium duty,heavy duty FS668 FS800 FS1000
data center ,office servo room , office building
Product Description
Description of woodcore raised access flooring 600x600x40,600x600x30,600x600x25,610x610x38

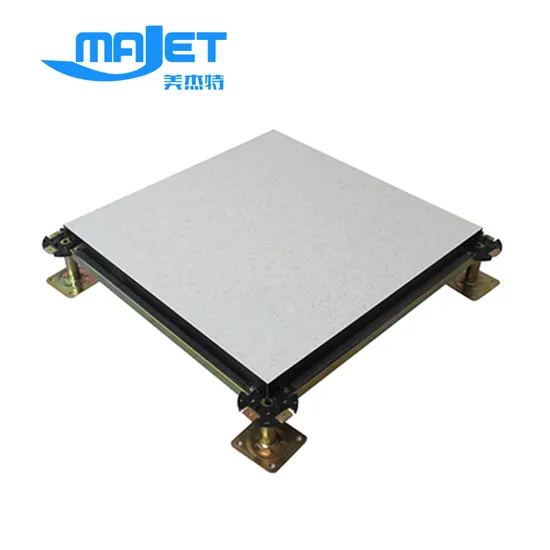

The raised access floor panel are made of woodocre with bottom galvanized steel sheet and ABS sealed side edges. The various of top coverings are available for customer choices. It used with pedestals and stringers support system.
Encapsulated woodcore Panel top bare
woodcore access Panel Structure: Encapsulated with high density woodcore
Size: 600x600
Feature:
-Full Steel Encasement and Good Sealing
-Constituted by All Steel Sheet, Good Loading Capacity
-High Dimension Accuracy and Excellent Interchangeability Water Proof, Fire Proof, Anti-Sepsis and Sound Insulation
-Application:- Anti-static calcium sulfate raised floor is widely used in Telecommunication Room,Power Station,
Computer Room,Factory Clean Room and other Anti Static Requiring PVC sealed antistatic woodcore raised flooring
woodcore Panel is available with Various Top Finishes Like HPL ,PVC ,Vinyl ,Linoleum,Timber ,Granite ,Ceramic Tile etc.
It is #Water proof #Fire Proof #Anti Sepsis#Sound Insulation
It is widely use in Telecommunication Room,Power Station ,
Computer Room,Factory Clean Room and other Anti Static Requiring Places. Application: HighGradeRooms: Banks, Telecommunication centers, Smart Offices and Computer Rooms.
This panel is particularly suitable for High Humidity areas. High dimension accuracy and environmental friendly. Other kinds solution of woodcore raised floor
for PVC sealed woodcore raised floor , you can choose use steel sheet or not use . and choose different finish materials, so there are many kinds solutions.
top bare + bottom steel
top PVC or HPL + bottom steel
top steel + bottom steel
top ceramic + bottom steel
Encased all sides with steel plate
Finish material of woodcore raised flooring
laminate HPL (high pressure laminate) anti static , PVC conductive , vinyl ,ceramic or porcelain ,wood parquet , linoleum
Product Parameters
How to choose load bearing of woodcore raised access flooring system ?
When considering load-bearing, it is important to take into account all objects and people that will exert pressure on the floor. Including but not limited to the load of equipment and furniture in the office, as well as the load that may be caused by the number of employees, appropriate flooring needs to be selected based on the number of employees. At the same time, it is also necessary to consider the characteristics of the office use and whether there will be gatherings of people to ensure that the floor will not be damaged or unstable due to gatherings of people during peak hours.
The load-bearing selection of large office buildings should be scientifically evaluated by professionals to select floors with better load-bearing levels.
MAJET's raised floor follows the CISCA standard for load-bearing classification. You can refer to the table below to select the appropriate load-bearing level.

Model	Concentrated (N)	Impact load (N)	Ultimate load (N)	Uniform load (N/m2)	Rolling load
					10 times	10000times
SC668	≥2990	670	≥8890	≥12500	2215	1548
SC800	≥3590	670	≥10799	≥19796	2959	2215
SC1000	≥4498	670	≥13494	≥23294	3596	2959
SC1250	≥5595	670	≥16797	≥33084	4498	3596
SC1500	≥6693	670	≥20090	≥42581	5595	4498
SC2000	≥8898	670	≥26685	≥49784	6693	5595
SC2500	≥11093	670	≥33290	≥58280	8898	6693

Application
Application place of woodcore raised access panel
office , data center , servo room , casino , commercial building, hotel , business centers
what place can use woodcore rasied floor access panel ?
1. Data Centers and Server Rooms
woodcore panel has a high load capcity , make it can bear heavy weight of cabinets in the data center. its good resist fire , anti static also is necessary for the data center.
2. Control Rooms
subway, high speed rail, or air port , and some other public facility need very high load capacity to bear much equipment.
also need very high pedestal to give space under floor to treat calbes.
woodcore access panel can reach it .
3. Laboratories
woodcore access floor is resist-chemical , risit-fire , be good at management of cables and air flow system .
4. Office Buildings
woodcore rasied floor is good to bear groups of people , and much furnitures on the office.
5. school or university
anti static raised floor is suit for compter rooms or servo rooms in the school . why choose anti static woodcore raised flooring for data center ?
Improved Anti-Static Performance
Antistatic performance is the most important feature of a data center raised floor. With the continuous development of data centers and the continuous upgrading of electronic components, data centers have higher requirements for anti-static. In order to meet this demand, anti-static flooring has achieved a high level of anti-static performance, which can effectively prevent the impact of static electricity on equipment.
Improve the wear resistance of data center raised floors
With the rapid development of computer technology, the number and type of data center equipment continue to increase, which also puts forward higher requirements for the wear resistance of Gaojia flooring. In order to meet these high requirements, manufacturers are creating more anti-static veneer products. At present, the raised floor of the data center has reached a high level of wear resistance, which can effectively prevent equipment from causing wear and tear on the floor.
Making data center raised floors easier to maintain
With the rapid development of computer technology, the number and types of data center equipment continue to increase, which also puts forward higher requirements for the daily maintenance of data center floors. After using the raised floor, each floor can be freely disassembled and replaced. You can easily and quickly dismantle an area you want, providing the greatest convenience for equipment maintenance, equipment replacement, etc.
Related products
Product Process
Certifications
Company Profile
As one of the largest access floor manufacturers in China, We have been concentrating on Raised Access Floor over 35+ Years which established since 1988.
MAJET is one of the first batch of anti-static raised flooring manufacturers in China, established in the year 1988.
From the initial anti-static floor, after continuous development and innovation, the current products have increased to dozens of categories. Including but not limited to calcium sulfate core raised floor , wood core raised floor, aluminum access floor , glass raised floor, FRC raised floor.
MAJET has a large factory area of 60,000 square meters and more than 150 workers.
In recent years, MAJET has invested heavily in the construction of automated production lines. At present, it has achieved a high degree of automation, with a complete steel floor automation production line, calcium sulfate floor automation production line, aluminum floor automation production line. The out-put of one day is 5,000 square meters.
Since the 1990s, our company's overseas export business has developed vigorously, and we have established a professional export operation team to provide high-quality export supporting services.
FAQQ1. What are the advantages of each type of flooring in office applications?
Steel flooring is the most cost-effective choice among all raised floors. Therefore, it is also the most widely used variety in offices. The weight of the high floor is lighter than that of calcium sulfate floor, and its load-bearing effect is higher than that of wood core board. Overseas shipping is more convenient and saves money. Because steel is not an environmentally friendly material, some countries and floors do not advocate the use of steel floors.Calcium sulfate flooring has better load-bearing capacity than steel flooring. It can be used for a long time, is not easy to rust, and is a recyclable and environmentally friendly material. It is also a widely used floor. However, its own weight is heavier, which increases transportation costs.Wood core boards are relatively less load-bearing among these types of floors, but they are also the lightest in weight. The good walking feeling and silent effect have also won him many users. This is also a recyclable and environmentally friendly material that is very popular in some countries and regions.Aluminum flooring is the highest performance flooring, but because its price is much higher than other floors, it is usually rarely used as office flooring. But there are also some special offices that use aluminum floors.FRC flooring, FRC flooring has better load-bearing capacity than steel floors of the same size, but its own weight is heavier, which also limits its overseas export business. If transportation costs are not considered, FRC flooring is a very cost-effective office movable floor.Q2. how to choose finish material for anti static raised floor ?
The main materials include HPL(high pressure laminate), conductive PVC, ceramic tiles, etc. follow, we will compare their respective characteristics.
HPL(high pressure laminate):
Rigid anti-static special fireproof board, made of a variety of special papers treated with phenolic and melamine resins, and a thermosetting resin decorative laminate made of high temperature and high pressure.
It is a commonly used veneer in the anti-static floor industry. During use, the maintenance of HPL veneer is quite simple, and the surface is wear-resistant (hempy surface is highly wear-resistant), high temperature resistant, cleaning resistant, impermeable, dustproof, shockproof, Anti-smoke and fire, open flame, not easy to scratch, bright color, bright and smooth, etc.
It is widely used in the monitoring of various industries such as program-controlled computer rooms, laboratories, colleges and universities, computer rooms, financial system digital databases, national defense, aerospace,television stations, electronic systems, telecommunications, and mobile industries in electronics, telecommunications, and medical hospitals. Computer rooms, dispatching stations, digital libraries, etc. require anti-static and clean places, which are more popular with the public and can be used as indoor and outdoor floor decoration materials.
PVC (polyvinyl chloride) :
It has long-lasting antistatic properties and stable electrical conductivity. This product utilizes the electrostatic conductive network formed by the interface of plastic particles, and has multiple patterns on the surface. The appearance resembles a marble pattern and has a good decorative effect. And it has the characteristics of wear resistance, long-lasting anti-static, aging resistance, and low dust generation.
This product is suitable for program-controlled computer rooms in electronics workshops, clean workshops, microelectronics workshops, communications, electronics, microelectronics, hospitals, power plants and other industries, clean rooms and other grounds that require anti-static, and is widely used in anti-static raised flooring.
conductive ceramic tiles :
Anti-static ceramic tiles are a new type of anti-static material that overcomes the problems of aging, wear resistance, pollution, durability, and poor fire resistance in current polymer materials such as melamine, PVC anti-static flooring, and anti-static rubber sheets.
Anti-static ceramic tiles combine the advantages of ceramic tiles, with features such as aesthetics, durability, fire resistance, slip resistance, compression resistance, wear resistance, corrosion resistance, stain resistance, water resistance, low radiation, environmental friendliness, and easy installation. They are a functional anti-static ceramic tile with permanent anti-static properties and high-end artistic decorative effects.
Anti-static ceramic tiles are widely used as the surface layer of anti-static raised floors, such as fully steel ceramic surface anti-static floors, composite ceramic surface anti-static floors, and other types of raised floors. They can be used as the surface layer of movable floors (replacing ordinary HPL veneer and PVC veneer floors), or directly laid on the ground as anti-static flooring (using cement mortar for direct installation).
Anti-static ceramic tiles are suitable for places that require dust and static electricity prevention, such as computer rooms, microelectronics cleanrooms, energy, defense, aerospace, clean production workshops, petrochemical workshops, hospital operating rooms, etc.Q3 . Cost analysis of office raised floor?
The cost analysis of office raised floors needs to comprehensively consider the price of the floor itself, the cost of installation, and the cost of timely transportation. This is a more professional job that requires a comprehensive calculation based on the area to be used, the type of flooring you choose, and the destination of transportation.
You can contact MAJET company for professional solutions.
Q4 . Study on the long-term effects of office raised floors.
From the perspective of long-term use, calcium sulfate board has high density, good load-bearing, and corrosion resistance, so it is more suitable for long-term use.
Wood core boards are also corrosion-resistant, but microorganisms or moisture in the environment will cause some changes in the wooden structure. After long-term use, it may cause changes such as bulging and uneven surfaces.
The steel floor itself is not resistant to rust, but it can also be protected by some surface coating materials to achieve a better service life.
Q5 . What accessories can be used in conjunction with the office raised floor?
The modular design of the office raised floor facilitates its use in conjunction with other air conditioning circulation equipment and electronic equipment.
There are currently some ventilation units designed according to the dimensions of the raised floor, which makes them more convenient to use.
The surface of the raised floor can have holes to install floor boxes, diffusers, fans and other equipment. This results in a better user experience.
FAQ of raised floor ?
Q1.What is your product Range?
A: Our products include bare steel raised floors, laminated steel raised floors, calcium sulfate raised floors, aluminum raised floors, wood core raised floors PVC/Vinyl floors, etc. We also supply airflow panels, raised floor stringers, air diffusers, bush grommets, outlet boxes,raised floor-cutting machines, and raised floor fan
Q2:Can I get a sample for testing before the bulk order?
A: Yes, free samples will be provided to you according to your detailed requirement
Q3 Are you a manufacturer or trading company?
A: We are a direct manufacturer, and our price is very competitive
Q4:What is your MOQ?
A: 100pieces each type
Q5.What certification do you have?
A: ISO certification, KS certification,Static report,QAS report,VOC report,CISCA report,MOB report.SGS report
Q6: What is the loading quantity in one 20GP?
A:1100-1500pieces, depending on the raised floor type.
Q7.When is your delivery time?
A: 30 days after receiving the prepayment.
Q8. What is your package?
A: Packed in wooden pallet, covered with plastic paper.
Q9. What is your payment term?
A:T/T,L/C, Western Union.
