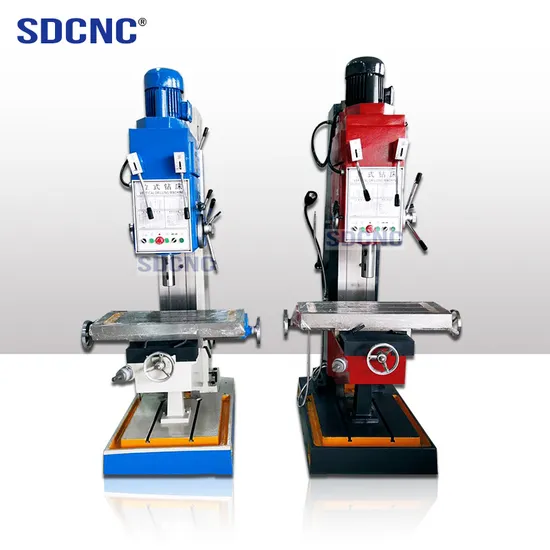

SDCNC Z5125 Taladro Magnetic Drill Vertical Milling Machine CNC Vertical Borehole Drilling Machine
| US$2,250.00-3,860.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z5125
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Max Drilling Dia.
25mm
Max Feed Resistance
9000n
Spindle Taper
Morse No. 3
Spindle Travel
200mm
Transport Package
Wood Packaging
Specification
980*807*2302mm
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
980.00cm * 807.00cm * 2302.00cm
Package Gross Weight
1200.000kg
Product Description
Product description:1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling,
drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep
hole is very convenient. Widely used in machinery manufacturing, workshop production and construction processing,
etc..
2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range,
high speed operation, novel appearance, convenient maintenance and so on.
COMPANY PROFILE
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's
Shandong Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The company with strong technical force, high quality and good reputation to win the trust of foreign
trade users. Mainly produces CNC machine tool equipment (CNC lathe, machining center horizontal machining center,
vertical machining center, CNC vertical lathe, CNC pipe thread lathe, CNC milling machine, CNC drilling machine,
CNC slotting machine, CNC sawing machine and other CNC products) ordinary lathe, milling machine series, shaper
machine, metal sawing machine, slotting machine series, radial drilling machine, vertical drill Bed and other machine t
ool Product Parameters
Product main technical specifications:
| Specifications | Z5125 |
| Max drilling dia. | 25mm |
| Max feed resistance | 9000N |
| Max. spindle allowable torque | 160N.m |
| Spindle taper | Morse No. 3 |
| Distance from spindle axis to column guide way | 280mm |
| Spindle travel | 200mm |
| Spindle box travel | 200mm |
| Spindle speed | 50~2000r/min(9) |
| The amount of feed(mm/rev) | 0.056-1.80mm/r (9) |
| Working table stroke | 310mm |
| Working table surface size | 400×550mm |
| Distance from spindle nose to table surface | 710mm |
| Main motor power | 2.2kw |
| Cooling pump flow | 25L/min |
| Overall dimension | 980*807*2302mm |
| N/W | 1200kg |
