55kw Bx216 Forestry Waste Scrap Disposal Crushing Machine Drum Wood Chipper Machine for Sale

Product Description

55kw Bx216 Forestry Waste Scrap Disposal Crushing Machine Drum Wood Chipper Machine for Sale
Product Description

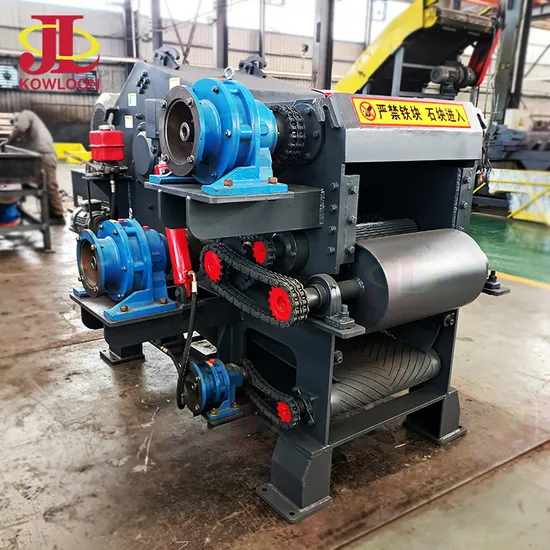

Wood Drum Chipper
Tree log bamboo chipper drum wood chipping machine is a new style and widely applied machine. It is composed of a machine base, a knife roll, an upper and lower feeding system, a feeding system and a hydraulic buffering system, and is mainly used for crushing materials such as logs, small-diameter wood, branches, boards, slats, and bamboo. The crushing material can be used in paper mill, power plant, pellet factory, boiler factory...

Model	JLBX216	JLBX218
Infeed size (H*W)	230x590mm	300x680mm
Process range	≤φ230mm	≤φ300mm
Moving blade	2/3/4 blades	2/3/4 blades
Rotary speed	590 rpm	650 rpm
Main motor	55kw	90-110kw
Feeder motor	4kw+4kw	5.5kw+5.5kw
Hydraulic motor	1.5kw	1.5kw
Feeding conveyor motor	3kw	4kw
Weight	5030kg	7000kg
Dimensions	1800*1900*1210mm	2200*2150*1500mm

Details Show

Drum Wood Chipping Machine Wood chips are required as the starting material in the wood processing line, which places wood chipper in an indispensable role in the wood processing industry. With the high strength steel, double feeding system, the drum wood chipper is mainly suitable for processing logs, wood residue (twigs, branches) and fiber agro waste such as reed stalks, bamboo etc. Distinct design, compact structure and simple operation make wood chipping machine enjoy popularity during wood processing industry and biofuel processing industry.
The Structure of Drum Chipper
knife rotor, feeding rollers, feed and discharge conveyors, hydraulic system and other parts. The body of drum chipper made of high strengthen steel, the moving knives on rotor could be 2 knives, 3 knives, 4 knives. The moving knife fixed by high strength bolts and press board; hydraulic system helps chipper has ability to process different diameter materials.

Features of Drum Wood Chipper
1.Compact structure, simple operation, the drum wood chipper has a wide application for wood materials chipping and biomass materials processing. 2. Adopting the double roller feeding system, the drum wood chipper has a higher efficiency than the common one. 3. The chipper body is made of high strength steel, firm, shock-resistant, with less noise. 4. A series of screen for choice, the drum wood chipper can process wood chips with a variety of size and thickness for different requirements. 5. Special design and reliable blades layout, the drum wood chipper works more efficiently. The wood chips is of even length and uniform thickness. 6. With the hydraulic buffer system, the maintenance of the chipping machine is simple. Raw Materials Kowloon Machinery JLBX drum wood chipper raw materials: logs, branches, veneers, waste veneers, bamboo, cotton stem and other non wood fiber stems. These raw materials can be cut into wood chips of different specifications at one time, these chips can be used as the basic raw material for making particleboard, fiberboard, non wood-based board and pulping and papermaking.

Installed Projects
Packaging and Shipping
Company Profile
Company Introduction
Kowloon Machinery located in industrial hub of Zhengzhou city, China, design and manufacture industrial shredder, wood processing machinery, waste tire recycle equipment and scrap metal recycling machines. Kowloon products approved by CE and ISO certificates. Up to now, we have exported to more than 30 countries and share markets in worldwide, and now are still growing continuously.
We effort on improving and researching, in past years, various of new products were developed and becomes popular in domestic and abroad market, won good reputation and corporate image, we always effort on best quality and service, welcome to inquiry!
Certificate
Customer Cooperation
Zhengzhou Kowloon Machinery has always won the trust and recognition of many users with its excellent quality and excellent after-sales service. The company has CE, ISO, SGS, CMIC and multiple certification certificates and invention patents. New and old friends are welcome to visit our factory and Trial machine test.
FAQ
1. Are You Trading Company or Factory?
Machinery is a Factory with 31 years experience in machinery manufacturing; we provide you completive Factory Price and good After-sale Service!
2. What about the Machine Installation?
For a single machine or a simple line, we provide you Foundation Drawing ,Installation Instruction Books or successful installed machinery picture or video; for large machines and complex production line, we could send our engineers to guide the installation if necessary.
3. How About the Spare Parts?
We offer some free spare parts like belt, gasket etc small parts, for the BLADES, KNIVES, SHAFTS etc important wearing parts, we suggest customers buy some along with the machines to save the shipping cost, and we have enough spares parts in stock.
4. What Will We Do If We Have Problems in Machine Working After We Buy the Machine?
Kowloon has people special for after-sale service,if customers outside China have problems when machine working, just feel free to send us the picture or video to show us, we will give you solutions in 24hours.
5. Could We Visit Your Factory and Test the Machine?
We warmly welcome you to visit our factory anytime, and we are very glad to test our machine with your raw material.
