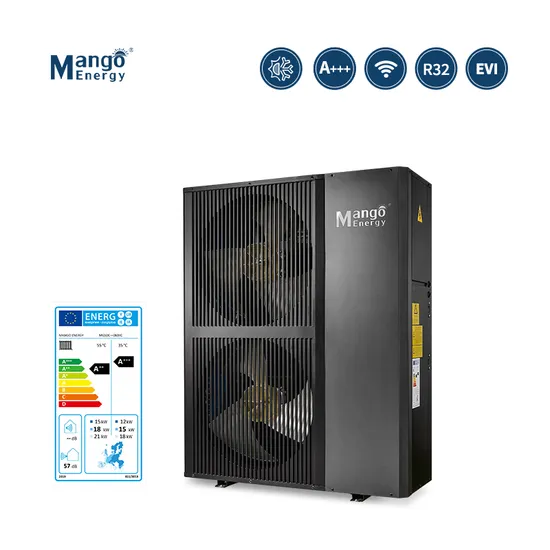

Europe Air to Water Monoblock DC Inverter Heat Pump for Home Heating and Cooling

Product Description

Product Description

Name:Europe Air to Water Monoblock DC Inverter Heat Pump for Home Heating and Cooling

Material:Metal

Function:Hot Water/Heating/Cooling

Package:Wooden package

1.R32 Refrigerant pipe connection for best system stability even in tough weather.
2.E-heater, diverter valve,water pump,and expansion tank can be included
3.A+++ Energy Rating Level,with CE,TUV test report.
4.Low noise sound power level as low as 45 dB(A)
5.Work down to -30 degree C
6.WIFI solution available,Carel controller.7.Function: Heating +Cooling+ Hot water Product Parameters

HP				3HP	5HP	6HP	8HP	10HP
Ambient	Outlet	Power Supply		220-240V / 50-60Hz / 1ph or 380-415V / 50-60Hz / 3ph				380-415V / 50-60Hz / 3ph
+7°C	45°C	Heating Capacity	kW	9.65	16.45	19.90	24.90	30.90
		Power Input	kW	2.65	4.53	5.50	6.98	8.67
COP				3.64	3.63	3.62	3.57	3.56
+7°C	35°C	Heating Capacity	kW	9.00	14.00	16.00	24.00	30.00
		Power Input	kW	2.00	3.04	3.50	5.40	7.30
COP				4.5	4.6	4.56	4.45	4.1
-12°C	41°C	Heating Capacity	kW	6.85	11.44	13.50	16.52	20.61
		Power Input	kW	2.72	4.49	5.31	6.56	8.21
COP				2.52	2.55	2.54	2.52	2.51
-20°C	41°C	Heating Capacity	kW	5.79	9.55	11.80	14.52	17.45
		Power Input	kW	2.63	4.32	5.39	6.66	8.04
COP				2.20	2.21	2.19	2.18	2.17
-35°C	41°C	Heating Capacity	kW	3.42	5.68	7.39	8.80	10.92
		Power Input	kW	2.46	4.12	5.32	6.33	7.86
COP				1.39	1.38	1.39	1.39	1.39
+35°C	7°C	Cooling outlet	kW	7.62	13.18	16.21	20.51	23.80
		Power Input	kW	2.61	4.51	5.59	7.15	8.32
EER				2.92	2.92	2.90	2.87	2.86
Maximum Working Pressure			Bar	44 Bar
Compressor			-	Panasonic DC Inverter Compressor with EVI System
Refrigerant			-	R32
Fan Motor			-	Nidec DC Brushless Motor
Controller			-	Touchscreen LCD Controller with WIFI and 13 Languages
Water Heating Exchanger			-	SUS 316 Brazed Plate Heat Exchanger
External Cabinet			-	1.5MM Galvanized Steel With Powder Coating
EEV			-	Dunan
Certificates			-	CE	FCC	UKCA	ISO	ERP A+++
Outdoor Air Flow			m3 / h	2600	5600	5600	7800	7800
Water Flow (Built in Pump)			m3 / h	>1.6	>3.1	>3.1	>3.4	>3.4
Expansion Tank			L	2L
Water Pipe			inch	1"	1"	1"	1-1 / 4"	1-1 / 4"
Noise in 1M			dB(A)	≤50	≤56	≤57	≤59	≤60
Unit size			mm	925*375*770	1050*400*1350		1175*400*1482
Net Weight / Gross Weight			Kg	76 / 85	120 / 146	125 / 151	165 / 194	175 / 212

FeaturesA.Top SCOPPanasonic/Toshiba/Sanyo Inverter Rotary compressor and ECO R32/R410 refrigerant for max heat capacity and less
refrigerant, large volume of latent heat from the air via evaporator in coldest season.
B.Ultra frequency conversion technology
Based on the principle of proportional relationship between motor speed and input frequency of working power supply: n = 60f(1-s)/p and changing motor speed by changing working power frequency of the motor, it adopts AC-DC-AC power conversion technology, relying on our powerful control system with PWM generation ability, integrate V/F, vector control (VC) and direct torque control (DTC) to achieve control method of variable frequency PID calculus, mainly drive variable frequency by way of PWM synthesis drive, fully integrate power, electronics, microcomputer control and other technologies.
C.Advanced Carel Operate System, ultra intelligent
Especially superior heat dissipation circuit board design, longer service, over 3 time of other brand's, simple click and fully
play the characteristics of DC inverter frequency conversion system to achieve overlocking performance.
D.Multi-speed mute fan motorROHS fan blades, ultra-low noise, durable & reliable, constant max air flow to satisfy heat supply.
E.Soft-start and soft-shutdown
Protecting both electrical system and all key parts, such a EEV, SANHUA 4-way valve, LG AC contactor & other World famous brand components ensure heat pump device 2-3 time longer service by1) making output torque of the motor meeting the requirements of mechanical system for starting torque, ensuring smooth acceleration & smooth transition, and avoiding destructive torque impact;
2) achieving both starting current meeting the requirements of motor's bearing capacity, and the insulation damage or burnout caused when it starts.3) reducing both voltage sag range and the content of high-order harmonics etc.
F.High-tech shock-absorption all copper construction piping
High-accurate completely automatic silver welding, easy maintenance.
G.High-density protective jacket for minimum heat lost
Aviation class insulation foam with outstanding sound absorption.
H.Classic European outlook forming
Fashion taste, never out of time.
I.Portable compact design
Saving room for installation & operation.
J.Fast heating and cooling speedBefore the indoor temperature reaches the set value, the Panasonic rotary compressor delivers high levels of efficiency, enabling the unit to operate at high frequency so that it can heat water or provide house heating/cooling at a faster speed.
Key parts 1) More compact with slim body;2) Much lighter for transportation & stallation;3) Dual rotary, more stable operating & lower operate noise, more ECO;4) Permanent magnet, no power driving, rapidly ware & tear decreasing, higher efficient.5) R32, R410A refrigerants are capable, green enough for the world.
Hydrophilic plus-size-area fins, ripple copper pipe... Instalation Reference
Mango's factory
Mango Project
Our quality management system was certified in conformity with ISO9001 Standard, heat pumps with CE, TUV, ErP, certificated.And also with customized OEM/ODM services for distributors all over the world.Now Mango brand heat pump has been
exported to more than 100 countries, even well installed.Send your inquiry, right away!
