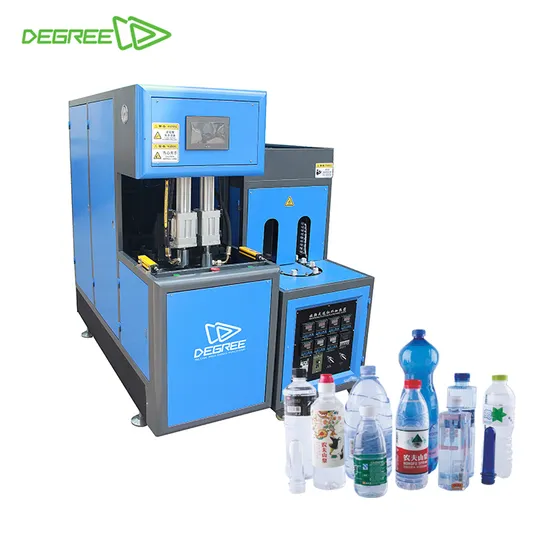

Factory Directly Supply Semi-Automatic Pet Bottle Blowing Machine
Basic Info.
Model NO.
DEG-3L
Raw Material
PET
Making Method of Parison
Stretch Blow
Automation
Non-Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Machine Type
Pet Stretch Blow Molding Machine
Mould Cavity
2
Bottle Neck
18-120mm
Bottle Size
100-2000ml
Output
500-1000bph
High Air Compressor
1.2m3/3.0MPa
Low Air Compressor
1.6m3/1.0MPa
Mould Chiller
3HP
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Transport Package
Wooden Case
Specification
10kw
Trademark
Degree
Origin
Taizhou, Zhejiang
HS Code
8477309000
Production Capacity
100 Sets/Year
Product Description
Product DescriptionWhat is Blow Molding Machine?
Blow Molding Machine is one kind of two step stretch type bottle making plant.
Blow Molding Machine is suitable to produce plastic bottles based on PET raw material.
Blow Molding Machine is widely used to produce carbonated soft drinks
bottles, mineral water bottles, cooking oil bottles, medicine bottles, cosmetic bottles, wide mouth Jars and hot filling juice bottles etc
Detailed Photos
Product Parameters
| Model | DEG-3L (One Blower & One Heater) |
| Clamping Force | 100KN |
| Clamping Stroke | 160 MM |
| Max. Stretching Stroke | 360MM |
| Number of Cavities | 2 Cavity |
| Theoretical Output | 900 BPH(500ml) |
| Max. Mold Thickness | 300MM |
| Voltage Standard | 380v/3PH/50Hz or special order |
| Number of Heating Zone | 4 Sections |
| Total Power (Full Loaded) | 10KW |
| Max. Container Volume | 2L |
| Neck Diameter Range | 18-120mm |
| Max. Container Diameter | 360mm |
| Max. Container Height | 380mm |
| Low Air compressor | 10Bar |
| High Air compressor | 30-40Bar |
| Blow molding machine | 1450*600*1700mm |
| Preform Heater | 1800*700*1400mm |
| Net Weight | 850kgs |
Certifications
Packaging & Shipping
Company Profile
FAQ
Q1 :What kinds of product you supply?
A1: Blow Molding Machine, Extrusion Molding Machine ,Preform Mould ,Cap Mould, Blow Mould,Filling Machine, Packaging Machine, Plastic Products, etc
Q2: How to tell your enquiry ?
A3: Contact us by email,phone call, fax,instant Messenger (Trade manager , Whats app, Skype) and let us know your inquiry.
Q3: How to choose suitable machine?
A3: Tell us your requirement, and we will advise you.
Q4: Do you have technical support after we purchased your machine?
A4: - We will provide video technical support,online support.
- If you need,we can also arrange our professional technical to go aboard to your factory,they will help and teach you how to install and maintenance the machine.
