Full Series NEMA 11 14 17 23 24 34 42 Outboard Boat Servo DC Electric Hybrid Micro Gear Stepper Motor/Step/Stepping Motor with Reducer, Encoder

Product Description

57 Closed-loop Stepper Motor We are a company specializing in the R&D, production and sales of brushless motors, stepper motors, DC motors. Through technical innovation and customization, we help you create outstanding application systems and provide flexible solutions for various industrial automation situations.Product Description
57 Closed-loop Stepper Motor:

Projects	Specifications
Temperature Rise	under 80K
Resistance Accuracy	±10%
Inductance Accuracy	±20%
Ambient Temperature Range	-10~ + 50°C
Ambient Humidity Range	20%RH - 90%RH
Insulation Resistance	100MΩMin.@500VDC
Insulation Class	Class B 130°
Step Angle Accuracy	±5%
Shaft Radial Play	0.06Max.(450g-load)
Shaft Axial Runout	0.08Max.(450g-load)

57 Closed-loop Stepper Motor Parameters:

Model	Current	Resistance	Inductance	Rotational Inertia	Holding torque	Body Length	Weight
	A	Ω	mH	g.cm2	N.M	mm	kg
57BHS78-D0821	3	0.7	3.6	200	1.2	78	0.9
57BHS98-D0821	4	1	4.4	480	2	98	1.35
57BHS122-D0821	4	1.2	1.1	550	2.8	122	1.85
57BHS134-D0821	4	1.5	2.8	600	3.2	134	1.95

Note: The above are standard parameters. Motor can be customized, brake ready, can be equipped with reducer, encoder and other devices.
Detailed Photos

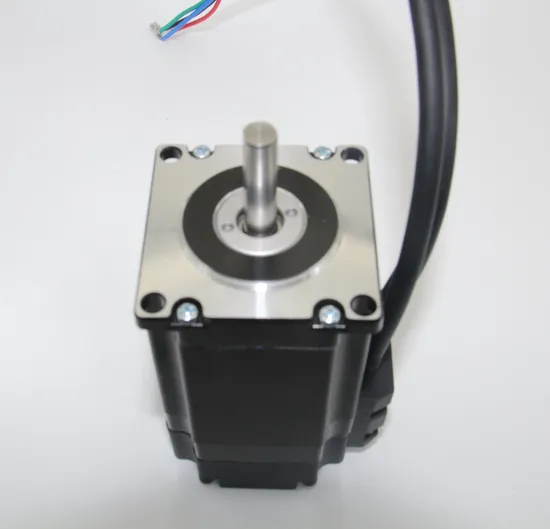

57 Closed-loop Stepper Motor Photos:Our Service:
1). General Service:

Quick Reply	All enquiry or email be replied in 12 hours, no delay for your business.
Professional Team	Questions about products will be replied professionally, exactly, best advice to you.
Short Lead time	Sample or small order sent in 7-15 days, bulk or customized order about 30 days.
Payment Choice	T/T, Western Union,, L/C, etc, easy for your business.
Before shipment	Take photos, send to customers for confirmation. Only confirmed, can be shipped out.
Language Choice	Besides English, you can use your own language by email, then we can translate it.

2). Customization Service:
Motor specification(no-load speed , voltage, torque , diameter, noise, life, testing) and shaft length can be tailor-made according to customer's requirements.
Other Product Parameters
20 Series screw stepper Motor 1.8°(8H series)

Model		Current	Resistance		Inductance	Rotational Inertia		Holding torque|	Body Length		Weight
		A	o		mH	g.cm2		N.M	mm		kg
20HS28-0504TS		0.5	14.3		8.o	1.6		0.018	28		0.05
2oHs30-0504Ts		0.5	11.5		1.7	1.8		0.02	30		0.06
20Hs33-0604TS		0.6	6.5		2.2	20		0.022	33		0.07
20Hs38-0604TS		0.6	10		5.5	3.2		0.044	38		0.08

28 Series screw stepper Motor 1.8°(11H series)

Model		Current	Resistance		Inductance	Rotational Inertia		Holding torque|	Body Length		Weight
		A	o		mH	g.cm2		N.M	mm		kg
28HS32-0704Ts		0.7	5.6		3.4	9		o.09	32		0.11
28HS40-1004TS		1.o	4.1		3.1	11		0.13	40		0.13
28HS45-1004TS		1	3.8		3.3	12		0.15	45		0.14
28HS51-1004Ts		1	4.3		3.9	18		0.18	51		0.2

42HS Series step motor/stepping motor/stepper motor 1.8°(17H Series )

Model	Current	Resistance		Inductance	Rotational Inertia		Holding torque	Body Length	Weight
	A	o		mH	g.cm2		N.M	mm	kg
42HS34-1504	1.5	2.1		4.2	35		0.25	34	0.22
42HS40-1704	1.7	1.65		4.o	54		0.45	40	0.28
42HS48-1704	1.7	1.65		4.1	68		0.55	48	0.35
42HS60-1704	1.7	3		6	80		0.7	60	0.48

42 Series screw stepper Motor 1.8°(17H series)

Model		Current	Resistance	Inductance	Rotational Inertia		Holding torque|	Body Length		Weight
		A	2	mH	g.cm2		N.M	mm		kg
42HS34-1504TS		1.5	2.1	4.2	35		0.25	34		0.22
42HS40-1704TS		1.7	1.65	4	54		0.45	40		0.28
42HS48-1704TS		1.7	1.65	4.1	68		0.55	48		0.35
42HS60-1704TS		1.7	3	6	80		0.70	60		0.48

57 Series Stepper Motor 1.8°(23H series)

Model	Current	Resistance		Inductance	Rotational Inertia		Holding torque	Body Length	Weight
	A	o		mH	g.cm2		N.M	mm	kg
57HS56-3004	3	0.7		3.6	200		1.2	56	0.7
57Hs76-4004	4	1.0		4.4	480		2	76	1.15
57Hs100-4004	4	1.2		1.1	550		2.8	100	1.65
57HS112-4004	4	1.5		2.8	600		3.2	112	1.75

86 Series Stepper Motor 1.8°(34H series)

Model	Current	Resistance		Inductance	Rotational Inertia		Holding torque|	Body Length	Weight
	A	o		mH	g.cm2		N.M	mm	kg
86Hs80-5004	5	0.65		7	1600		4.5	76	2.4
86HS10o-6004	6	0.50		11.6	2200		6.5	100	3.2
86HS118-6004	6	0.60		3.4	3200		8.5	118	4
86HS150-6004	6	0.7		6.3	4800		12	150	5.5

Application Area
Product Recommendation

Stepper motor

Brushless motor

Synchronous motor

Company Profile
Changzhou Sino-pan Electric Co., Ltd. is an export-oriented enterprise. Located in Xinbei District, Changzhou City, Jiangsu Province, China. After years of operation, the scale of our enterprise has continued to expand. Gradually grow into a group company. At present, our company mainly produces automotive bulbs (such as halogen bulbs and automotive LED bulbs/as well as household LEDs and commercial LEDs), motors (brushless motors/stepping motors/synchronous motors/asynchronous motors). At the same time, we are also appointed by many clients as purchasing and quality inspection agents in China.We provide you with high-quality, fast, efficient and inexpensive automotive lighting, motors and auxiliary electrical services. Zhongpan welcomes your patronage with a smile, and we will provide you with a variety of satisfactory products and a full range of consulting services. We firmly believe that the cooperation with us will be infinitely better! Strive to create a stronger tomorrow for our customers!
Packaging & Shipping
FAQ
Q1. Can I provide sample orders for your products?A: Of course, you can check our quality before ordering. If you have any requirements, please contact us.Q2. What is your delivery time?A: It depends on the order quantity. Usually, it takes about 3-7 days after receiving the small deposit. Bulk ordering takes 10-20 days.Q3. What kind of customers and what kind of companies do you work with?A: We have 20 years of export experience and serve more than 100 customers, such as retailers, wholesalers, and online store owners.Q4. Is it possible to put our logo on your product or product packaging?A: Of course, we have a factory, welcome to customize your brand, LOGO, color, product manual, packaging, etc. Q5: Can you OEM for me?A: We accept all OEM orders, just contact us and give me your design. We will provide you with a reasonable price and make samples for you as soon as possible. Q6: What are your payment terms?A: According to T/T, LC AT SIGHT, 30% deposit in advance, and the balance 70% before shipment.
