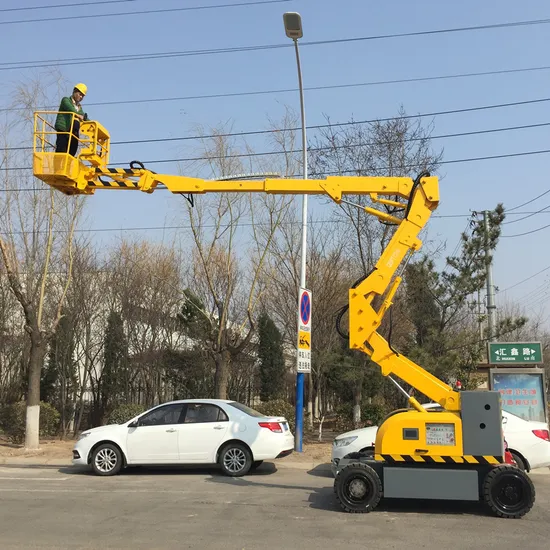

8m-30m Work Height Aerial Working Platform Telescoping Lift Cherry Picker Diesel Electric Self-Propelled Articulating Boom Lift
| US$15,000.00-137,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SJYZQ
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Articulated Lift
Carrying Capacity
230kg/350kg/500kg
Moves
Self-propelled
Driven Type
Hydraulic Pressure
Running Mode
Moving
Feature
Intelligent
Certification
CE, ISO 9001
Drive Type
Electric/Diesel
Support Customization
Yes
Rotation Angle
360 Degree Continuous
Move
It Can Be Moved at Any Height
Transport Package
No Packaging
Specification
8m/10m/12m/14m/15m/16m/18m/20m/22m/24m/26m/28m/30m
Trademark
Can be branded
Origin
China
HS Code
8428109000
Production Capacity
5000
Packaging & Delivery
Package Size
800.00cm * 220.00cm * 235.00cm
Package Gross Weight
10000.000kg
Product Description
Product Parameters| Model | Max height (m) | load (kg) | Table size (mm) | External dimensions (m) | Maximum external dimensions (m) | Weight (kg) |
| SJYZQ0.23-8 | 8 | 230 | 1600*800 | 5.2*1.65*2.35 | 5.3 | 4900 |
| SJYZQ0.23-10 | 10 | 230 | 1600*800 | 5.5*1.65*2.35 | 5.8 | 5800 |
| SJYZQ0.23-12 | 12 | 230 | 1600*800 | 6.3*1.78*2.35 | 6.9 | 6596 |
| SJYZQ0.23-14 | 14 | 230 | 1600*800 | 7.0*1.93*2.35 | 8 | 6900 |
| SJYZQ0.23-16 | 16 | 230 | 1800*800 | 7.18*2.18*2.2 | 8.9 | 8550 |
| SJYZQ0.23-18 | 18 | 230 | 1800*800 | 8.35*2.2*2.63 | 10.6 | 9200 |
| SJYZQ0.23-20 | 20 | 230 | 1800*800 | 8.86*2.25*2.53 | 11.7 | 11000 |
| SJYZQ0.23-22 | 22 | 230 | 1800*800 | 11.2*2.4*3.2 | 12.2 | 13200 |
| SJYZQ0.23-24 | 24 | 230 | 1800*800 | 11.2*2.6*3.2m | 12.5 | 14200 |
| SJYZQ0.23-26 | 26 | 230 | 1800*800 | 11.5*2.8*3.1m | 12.8 | 16200 |
| SJYZQ0.23-28 | 28 | 230 | 1800*800 | 12.3*2.8*3.2 | 13.2 | 18200 |
| SJYZQ0.23-30 | 30 | 230 | 1800*800 | 12.8*2.8*3.3 | 13.6 | 21000 |
| Optional work platform rotation (± 80 °) + $2000 USD | Optional wireless remote control + $3000 USD | |||||
| You can choose between diesel or battery power at the same price | ||||||
