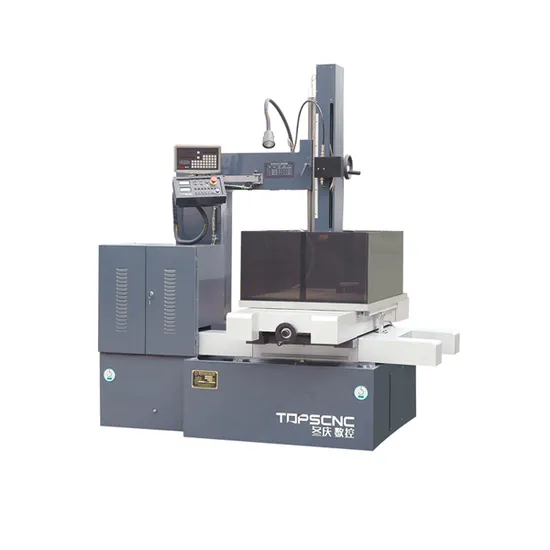

Ex-Work Large Size High Speed Micro Hole Drilling EDM
| US$18,000.00-32,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
DD703.50
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
0.3~3.0 mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Worktable Travel(X *Y)
500*630 mm
Main Spindle Speed
60 Rpm
Water Tank
25L
Power Supply
3n-380V/50Hz
Transport Package
to Be Packed in Wooden Cases, Suitble for Export
Specification
1950*1500*1600 mm; weight 2500kg
Trademark
TOPSCNC
Origin
Taizhou, Jiangsu, China
HS Code
8456301090
Production Capacity
100set/Month
Product Description
Technique parameters
| Technique parameters | unit | DD703.50 |
| Worktable size | mm | 700x1000 |
| Worktable travel | mm | 500x630 |
| Z-axis travel by motor drive | mm | 600 |
| Z-axis travel by hand control | mm | 500 |
| Main spindle speed | rpm | 60 |
| Diameter of electrode | mm | φ0.3-φ3 |
| Distance from guider to worktable | mm | 80~580 |
| water tank | L | 25 |
| Filtering model | Shallow-gap filter | |
| Working medium | water | |
| MAX.working pressure | Mpa | 7 |
| Power supply | 380V,3Ph,50Hz | |
| Max.woking current | A | 30 |
| Power consumption | Kw | 3 |
| Max. workpiece weight | kg | 800 |
| Machine weight | kg | 2500 |
| Machine demensions | mm | 1950x1500x1600 |
Our Factory
Founded in 1958 and developed more than half a century, Jiangsu Dongqing CNC Machine Tool CO. Ltd., has now became a forge ahead modern enterprise for production of CNC machine.
The R&D, production and marketing are the main component of the company. As shown on the website, the main product of the company covers five series, CNC milling machine & vertical machining center, CNC engraving machine, CNC wire cut EDM, Die sinking EDM and Micro hole drilling EDM.
The company has always engaged in improving the quality, function and performance of CNC machine in the past several years. It has successfully passed identification of ISO, CE, SGS, TUV & Bureau. "Innovation, development and win-win situation" makes TOPSCNC enjoy high reputation in this line.
TOPSCNC people wish to share success with you in the future!
TOPSCNC Customer
Certification
Service
1) Quality : We take care of the product quality in order to provide good service to our customers.
2)Warranty: One year after shipment,consumables are not included.
3)The quotation do not include installation and education training fee.
4) Payment Method: T/T or L/C
5) Delivery time : 18--25 days
6) Packing : Standard export wooden cases
7)Port: Shanghai
Contact us
Company:Jiangsu Dongqing CNC Machine Tool Co.LtdAddress:East Suburb Development Zone,Taizhou city,Jiangsu Province,ChinaTel:0086-523-86290115Mobile: 0086-15161067708Web:topscnc.en.made-in-china.com
