a+++ R290 House Heating Cooling Dhw Heat Pump Monoblock Warmtepomp

Product Description

Product Description

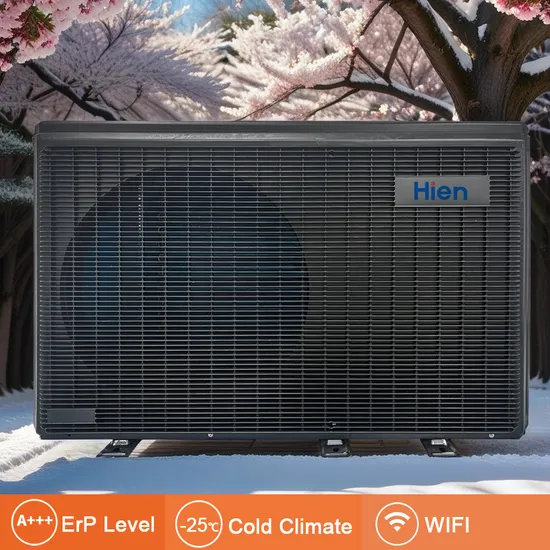

RR290 DC Inverter heat pump has heating, cooling and hot water function, so it can be used all year round.With R290 refrigerat, users can get DHW with a high temperature up to 75ºC,Stable running at -20°C ambient temperature.Our hydronic box equipped with circulation pump and expansion vessel which makes heat pump easy to install and maintain.
CloverLife Series Features:

1	Function: heating + cooling + hot water DC Inverter Monoblock all in-one heat pump
2	Voltage: 220v-240v -inverter - 1n or 380v-420v -inverter- 3n
3	Compact units available from 8kw to 22kw
4	Using R290 green refrigerant
5	Super low noise as low as 50 dB(A)
6	Energy-saving up to 80%
7	Stable running at -20°C ambient temperature
8	Adopted twin-rotor DC inverter compressor
9	High efficiency A+++energy level
10	Wi-Fi DUT ,Tuya app smart controlled,LOT Plat form
11	Can be connected with PV solar system
12	Max.Outlet Water Temperature 75ºC

Can be connected with PV solar system Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes. Heat pump with a powerful sterilizing mode With the ability to reach temperatures as high as 75ºC, this cutting-edge product guarantees the elimination of harmful Legionella bacteria and viruses, ensuring the highest level of water safet. Invest in your health and that of your loved ones with our state-of-the-art heat pump. Experience the unmatched convenience, energy efficiency, and superior performance this product has to offer. Don't compromise on safety and hygiene when it comes to your water supply. Choose our heat pump with its exceptional sterilizing mode, and enjoy the reassurance of pristine water quality every single day. Take the next step towards a healthier and safer environment - choose our heat pump today!
SMART CONTROL FAMILY
The intelligent controller with RS485 is adopted to realize the linkage control between the heatpump unit and the terminal end, Multiple heat pumps can be controlled and connected to be welmonitored.With Wi-Fi APP enables you to operate the units through a smart phone wherever and wheneveryou are.
WIFI DTU
To deliver the best user experience, EcoForce series is designed with a DTU module for remote datatransferring, and then you can easily monitor the running status of your heating system.
IoT Platfrom An IoT system can control multiple heat pumps, and salespersons can remotely view and analyze usage conditions of individual users through the IoT platform.
Smart APP control Smart APP control brings a lot of convenience to users. Temperature adjustment, mode switching, and timersetting can be achieved on your smart phone. Moreover, you can know power consumption statistics andfault record at anytime and anywhere.
Product Parameters

Dc Inverter Heat Pump		New	WLRK-8IBM	WLRK-10IBM	WLRK-12IBM	WLRK-14IBM
Cooling Conditions			Outdoor Air Temperature 35°C DB / -, Indoor Water Tem.Inlet/Outlet :23°C / 18°C.
Rated Cooling Capacity		kW	1.5 ~ 5.8	2.2 ~ 7.6	2.8 ~ 13.0	3.3 ~ 14.2
Cooling Power Input		kW	0.34 ~ 2.15	0.51 ~ 2.81	0.64 ~ 3.90	0.75 ~ 4.40
Current Input Range		A	1.55 ~ 9.83	2.33 ~ 12.88	2.93 ~ 16.92	3.43 ~ 19.17
Cooling EER		W/W	4.4 ~ 2.7	4.4 ~ 2.7	4.4 ~ 3.33	4.4 ~ 3.22
Heating Conditions			Outdoor Air Temperature 7°C / 6°C, Indoor Water Tem.Inlet/Outlet: 30°C / 35°C.
Rated Heating Capacity		kW	3.3 ~ 8.6	3.8 ~ 9.9	4.3 ~ 12.0	4.8 ~ 14.0
Heatinging Power Input		kW	0.55 ~ 1.88	0.64 ~ 2.19	0.72 ~ 2.60	0.81 ~ 3.04
Current Input Range		A	2.51 ~ 8.59	2.93 ~ 10.51	3.30 ~ 11.32	3.71 ~ 13.23
Heating COP		W/W	6.02 ~ 4.58	6.02 ~ 4.52	6.02 ~ 4.61	6.02 ~ 4.60
Heating Conditions			Outdoor Air Temperature 7°C / 6°C, Indoor Water Tem.Inlet/Outlet: 50°C / 55°C
Rated Heating Capacity		kW	3.1 ~ 7.8	3.5 ~ 9.6	3.9 ~ 11.4	4.4 ~ 13.1
Heatinging Power Input		kW	0.67 ~ 2.67	0.76 ~ 3.29	0.85 ~ 3.91	0.96 ~ 4.49
Current Input Range		A	3.12 ~ 12.21	3.52 ~ 15.13	3.93 ~ 17.88	3.16 ~ 21.3
Heating COP		W/W	4.63 ~ 2.92	4.63 ~ 2.92	4.63 ~ 2.92	4.63 ~ 2.92
Voltage		V/Hz	220V- 240V ~/50Hz
Rated Water Flow		m³/h	1.48	1.7	2.06	2.4
Rated of Waterproof		/	IPX4
Control Mode		/	Heating, Cooling, DHW, Heating+DHW, Cooling+DHW
Refrigerant		/	R290
Compressor	Form	/	Double-rotor type	Double-rotor type	Double-rotor type	Double-rotor type
	Brand	/	Highly Inverter	Highly Inverter	Highly Inverter	Highly Inverter
Net size		mm	1200*470*765	1200*470*765	1370*500*935	1370*500*935
Weight		kg	100	110	130	138
Nosie Level		dB(A)	≤55
Fan	Form	/	Inteligent variable frequency fan motor
Operation ambient temperature		°C	-20 ~ 43
Max.Outlet Water Temperature		°C	75
Inlet pipe diameter		mm	G1"	G1"	G1"	G1"
Outlet pipe diameter		mm	G1"	G1"	G1"	G1"
Packing size		mm	1270*555*808	1270*555*808	1440*570*1080	1440*570*1080
WI-FI function		/	√	√	√	√
ErP Energy class		/	35ºCA+++/ 55ºCA++
Test Standard		/	EN 14825
