Automatic Coffee Disposable Paper Cup Box Bowl Bag Square Food Dinner Plates Plate and Fans Water Ink Forming Making Flexo Printer Punching Die Cutting Machine

Product Description

Technical Specification

Model	FDC-920*400
Max cutting width	920
Cutting precision	±0.20mm
Paper gram weight	150-350gsm
Production capacity	260-380times/min
Air pressure requirement	0.5Mpa
Air pressure consumption	0.25m³/min
Total power	10kw
Weight	4.5T
Max roller diameter	1500mm
Dimension	3500x1700x1800mm

Introduction:

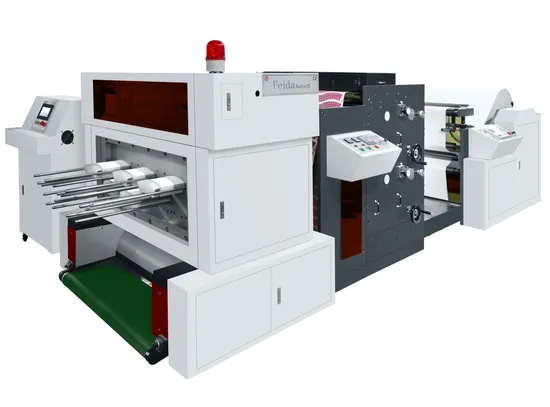

FD series automatic roll punching machine based on international advanced technology, it's widely used in printing, packaging and paper products industries. It adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, manual pneumatic lock plate, photoelectric correcting deviation system, centralized oil lubrication. All the key parts and controls of the machine are imported from international top brand.
Main structure
Main Technical Variables:

Web width	850mm
Print width	850mm
Unwind Diameter max	1200mm
Press Speed max (Production speed depending on process, job etc.)	80m/min
Gear Pitch	1/8" (3.175mm)
Flexo Print Units (IR dryer):	3
Min.Max repeat Print Cylinder	10" - 22.5"
Web Guiding: number	1
Overprint precision	±0.15mm
Machine weight	5500kg

FAQ
Q1. What Kinds Of products Can Be Made On Feida die cutting Machine ?
Feida roll die cutting machine is suitable for creasing,die cutting,embossing paper cup,paper plate,paper box,square box,etc paper packaging

Q2. What Is The Packing Way Of The Machine for delivery?
Usual , flexible packaging with iron underframe

Q3. What Is The Machine Delivery Time ?
As Generally speaking,45-55 days shippment after confirming layout.

Q4. How About The Machine Guarantee?
One year. During this period, any parts damaged caused by machineself, the seller will repair/replace the spare parts for free. After one year, the seller will supply the spare parts to buyers as the cost. The machine service is all around the machine life.

Q5. What About The Machine Installation And Training ?
If customer request, we will send our technician to install and train operation.Buyer bears 100USD allowance per day,tickets,accomadation,food
Q6.What Is The Terms Of Payment ?
By 100%T/T , 30% of deposits should be paid in advanced , then 70% of balance should be paid before shippment . or L/C at sight , both are ok .
