2 Pairs 12AWG 16AWG Audio Cable Speaker Cable

2 Pairs 12AWG 16AWG Audio Cable Speaker Cable

US$0.50 5,000 Meters (MOQ)

Basic Info.

Model NO.
Audio Speaker (HP-SP01)
Type
Double PVC Speaker Cable
Species
Speaker Cable
Connector
RCA
Material Shape
Round Wire
Wire Core Material
Bare Copper Wire
Certification
RoHS, CE, ISO9001, CCC
Brand
Fulsan
Gauge
2X12AWG,2X14AWG,2X16AWG,2X18AWG
Conductor
OFC or CCA
Connector Type
RCA
Jacket
Soft PVC, or Transparent or LSZH
Used in
Audio System
Standard
Ce, RoHS
Pacakge
Paper Spool , Plastic Spool , Blister
Transport Package
Clamshell Packing, Printing Polybag, Gift Box
Specification
CE, ROHS, UL
Trademark
FULSAN
Origin
China
HS Code
854442
Production Capacity
10, 000, 000meters Per Month

Product Description

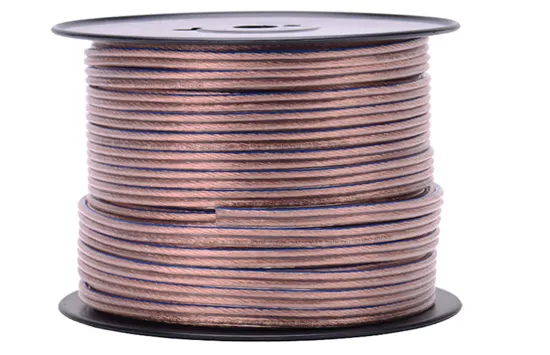

Type: Red Black Speaker Cable
Conductor Material: 100% Oxygen-Free Bare Copper
Cable Structure: 65 Stranded Wires, Individual Size of 0.254mm
Jacket Material: PVC
Rip cord: Nylon Thread
Cable Gauge: 12 AWG
Outer Diameter: 7.8mm
Conductor resistance (20° C) Max: 5.43Ω /KM
Insulation resistance (20° C) Min: 0.75Ω /KM
Spark Test: 3.0KV/ Sec NOBREAKING
Cable Rating: CM, UL, & CL2 Rated
APPLICATION
Used in AUDIO & VIDEO series, worked as the connective cable in AUDIO & VIDEO
They are of good electric capability. Also, the efficiency either of high frequency or low frequency is good too. Its attenuation is low while its prevention is high.
FEATURE
The products can be devided in three kinds: The colored AUDIO & VIDEO cable, the perspective AUDIO & VIDEO cable and the perspective gold and silver AUDIO & VIDEO cable.
The coiored AUDIO & VIDEO cable and the perspective AUDIO & VIDEO cable can choose the multi-phase tag according to the requst to sign the polarity. The polarity line should be blus or red.
THE STRUCTURE LIST OF COLORED AUDIO & VIDEO CABLE
SERIAL No. DESCRIPTION AREA (m m2) SPECIFICATION OUTER Φ mm WEIGHT (Kg/Km)
V-001 0.24 2*30/0.10 1.6*3.3 9
V-002 0.4 2*50/0.10 1.8*3.6 13
V-003 0.5 2*64/0.10 1.9*3.8 15
V-004 0.6 2*80/0.10 2.1*4.3 19
V-005 0.75 2*96/0.10 2.2*4.5 22
V-006 0.8 2*100/0.10 2.3*4.5 22
V-007 1 2*7*18/0.10 2.6*5.1 28
V-008 1.5 2*7*27/0.10 2.9*5.8 38
V-009 2 2*7*36/0.10 3.3*6.5 50
V-010 2.5 2*7*46/0.10 3.5*7.1 61
V-011 4 2*7*72/0.10 4.1*8.3 90
V-012 6 2*7*110/0.10 5.0*10.1 135
V-013 0.4 2*13/0.20 1.9*3.8 14
V-014 0.5 2*16/0.20 2.0*4.0 16
V-015 0.6 2*19/0.20 2.1*4.2 18
V-016 0.75 2*24/0.20 2.2*4.5 22
V-017 0.8 2*26/0.20 2.3*4.5 23
V-018 1 2*32/0.20 2.4*4.8 27
V-019 2 2*48/0.20 2.7*5.4 38
V-020 2 2*64/0.20 2.9*5.9 48
V-021 3 2*7*11/0.20 3.5*6.9 59
V-022 4 2*7*18/0.20 4.1*8.2 90
V-023 6 2*7*27/0.20 5.0*10.0 133
THE STRUCTURE LIST OF COLORED AUDIO & VIDEO CABLE
SERIAL No. DESCRIPTION AREA(m m2) SPECIFICATION OUTER Φ mm WEIGHT (Kg/Km)
V-024 20 2*41/0.12 1.9*3.9 16
V-025 18 2*65/0.12 2.3*4.6 23
V-026 16 2*7*15/0.12 2.8*5.6 15
V-027 14 2*7*23/0.12 3.3*6.6 20
V-028 12 2*7*37/0.12 3.9*7.7 26
V-029 10 2*7*59/0.12 4.8*9.5 39
V-030 8 2*7*95/0.12 5.7*11.4 182
