US$22,000.00-23,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Automatic Grade
Automatic
Certification
GS, CE, ISO 9001
Transport Package
Wood Packaging
Specification
1800*1650*2150
Packaging & Delivery
Package Size
180.00cm * 165.00cm * 215.00cm
Package Gross Weight
1500.000kg
Product Description
Product Description

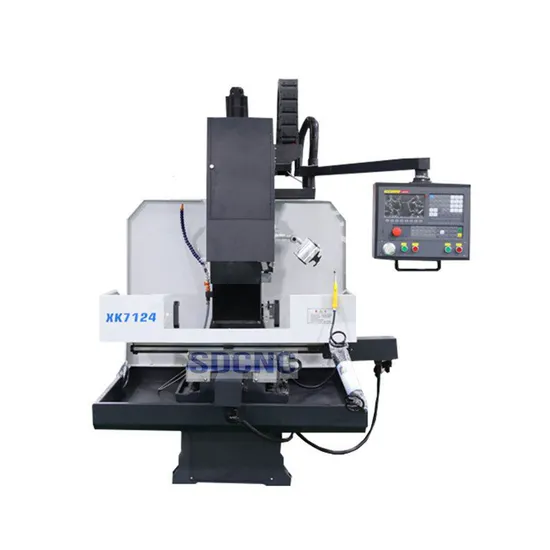

XK7124 China Small CNC VMC Vertical Milling Machine for sale
Features:
1.Manual and pneumatic Tool Change available
2.Stand and body separately designed
3.Semi-protection.
4.Steel welded stand and cast iron stand available
5.Big size oil collecting assuring ground cleaning.
6.Suitable for Box parts , shell parts, disc-shaped parts machining.
7.Tool released and clamped pneumatically for model
Product Parameters
Specification
| XK7124B
|
Worktable size length(mm)×width(mm)
| 1000×240
|
T-slot quantity-width(mm)
| 5-14-44
|
The max loading weight(kg)
| 200
|
X axis stroke(mm)
| 500
|
Y axis stroke(mm)
| 350
|
Z axis stroke(mm)
| 450
|
The distance from end face to worktable surface (mm)
| 80-530
|
Teh distance from spindle ctnter to column surface(mm)
| 310
|
Spindle tapper
| BT40
|
Spindle speed (Rpm)
| 6000
|
Main motor power (kW)
| 3.7K(servo)
|
Feeding motor
| X axis torque(N.M)
| 6(servo)
|
Y axis torque(N.M)
| 6(servo)
|
Z axis torque(N.M)
| 10(brake automatically)
|
Quickly moving speed(m/min.)
| 4000
|
Cutting feed speed(mm/min)
| 1-4000
|
Screw specification(diameter mm/screw pitch mm)
| 32/6
|
Accuracy
| Position accuracy (mm)
| 0.01
|
Repeat position accuracy(mm)
| 0.008
|
Machine weight kg
| 1500kg
|
The machine standard accessories :
Item
| Name
| Specification
| quantity
|
Standard accessories
| Collect chuck shank
| BT30
| 1PCS
|
Milling chuck
|
| 1SET(8 pcs)
|
Rivet
|
| 1PCS
|
Hook spanner
|
| 1pcs
|
Inner hexagonal spanner
|
| 1set
|
