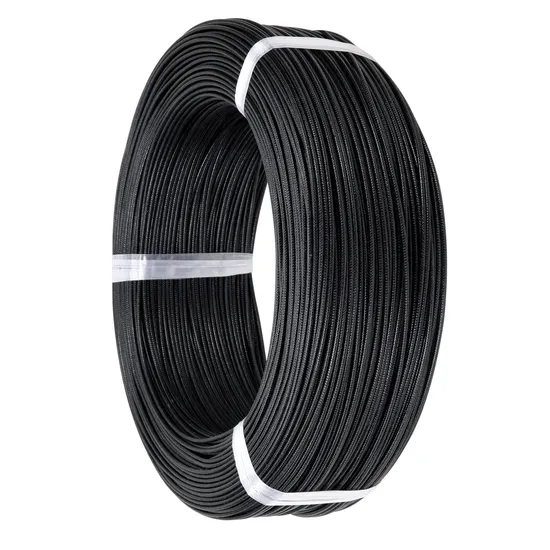

Electric Wire Cable XLPE Electrical Wire Tinned Copper Insulated 26-9AWG 600V Cable
Basic Info.
Model NO.
UL3173
Application
Home Appliance/New Energy Automobile
Conductor Material
Tinned Copper
Sheath Material
XLPE
Insulation Material
XLPE
Material Shape
Round Wire
Range of Application
Home Appliance/New Energy Automobile
Certification
ISO9001, CE, CCC, RoHS, VDE
Brand
Mysun
Rated Voltage
600V
Rated Temperature
125c
Standard
UL758
Color
White, Black, Red, Brown, Yellow, Blue, Green
Transport Package
Roll
Specification
26-9AWG
Trademark
MYSUN
Origin
Shenzhen
HS Code
8544492900
Production Capacity
2000000m/Day
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 20.00cm
Package Gross Weight
0.210kg
Product Description
UL3173 XLPE Wires Cable Tinned Copper Insulated 26-9Awg 600V used in lighting electrical wiresShenzhen Mysun Insulation Materials Co.,Ltd is a comprehensive enterprise integrating the manufacture, distribution and trade.We spe cialize in producing all sorts of wires with high temperature. home appliances,electronic
products, lightings.medical unitscommunication and office equipment with connecting wiring harness and processing service. Our wires have passed the evaluations of UL.CULVDE and SGS certifications. Our company has been managed according to international standard management system of ISO9001.We are looking forward to serving you with our management principle of"group, service. innovation and responsibility and quality policy of "full participation, prevention first, persisting improvement and satisfying service".
| Conductor | Insulation | Max.Cond Resistance | Unit length | |||
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | (Ω/KM) | (M)(Ft) |
| 26 | 7/0.16 | 0.48 | 0.78 | 2.04 | 143 | 305/1000 |
| 24 | 11/0.16 | 0.60 | 2.16 | 89.3 | ||
| 22 | 17/0.16 | 0.76 | 2.32 | 56.4 | ||
| 20 | 21/0.18 | 0.94 | 2.49 | 35.2 | ||
| 18 | 16/0.254 | 1.18 | 2.73 | 22.2 | ||
| 16 | 26/0.254 | 1.50 | 3.06 | 14 | ||
| 14 | 41/0.254 | 1.89 | 3.45 | 8.78 | ||
| 12 | 65/0.254 | 2.37 | 3.93 | 5.53 | ||
| 10 | 105/0.254 | 3.02 | 4.58 | 3.476 | ||
| 9 | 133/0.254 | 3.36 | 4.92 | 2.73 | ||
