DD50/2 FINCM Hydraulic High-Speed Deep Hole CNC Drilling Machine

Product Description

Product Description

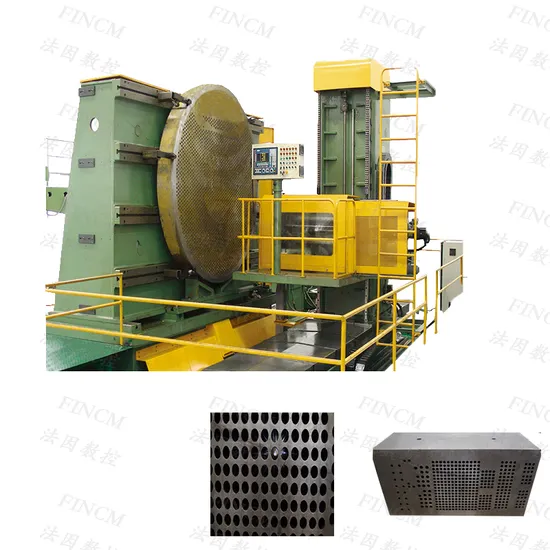

DD50/2 FINCM Hydraulic High-Speed Deep Hole CNC Drilling Machine
This equipment is mainly composed of longitudinal sliding table, vertical column sliding table, double-spindle feed sliding table, worktable and bending plate, hydraulic system, cooling system, automatic lubrication system, electrical system, chip conveyor, etc.
This DD50N/2 is mainly used for processing the holes on the tube plate of the shell and tube heat exchanger used in the petroleum, chemical, pharmaceutical, thermal power station, nuclear power plant and other industries. The maximum diameter of the workpiece is φ4000mm (need to be turned 180°), and the maximum drilling The depth is 750mm. The machine tool has high efficiency and good accuracy. The surface roughness of the drilling can reach Ra6.3~Ra3.2, the precision of the hole diameter can reach IT9~IT10, and the straightness of the hole is 0.3-0.8mm/800mm.
Equipment advantages:
1. This machine is a horizontal deep hole drilling machine.
2. The X, Y, and Z axes of the machine tool are guided by linear roller guides, which have extremely high load-bearing capacity and superior dynamic response performance, no backlash, and high motion accuracy.
3. The worktable of this machine tool is separated from the bed, and the clamping workpiece is not affected by the vibration of the bed. The working table is a casting with stable precision. The bending plate holding the workpiece is divided into two pieces, and the spacing is adjustable to adapt to workpieces of different diameters.
4. This machine tool has two spindles, which can work at the same time, and the efficiency is nearly double that of a single-spindle machine tool.
5. This machine is equipped with a flat chain type automatic chip conveyor, which is fully automatic.
6. This machine tool is equipped with an automatic lubrication system, which can regularly lubricate the parts that need lubrication such as guide rails and lead screws to effectively ensure the stable operation of the machine tool and increase the service life of each component.
7. This machine tool numerical control system adopts FAGOR8055 numerical control system, equipped with electronic handwheel, which is convenient for operation and management.
8. This machine tool has a variety of detection functions, including: 1) Spindle feed torque detection. 2) Spindle motor torque detection. 3) Flow detection. 4) Pressure detection. 5) Liquid level detection. 6) Temperature detection.
9. The machine tool's linear guide pair, ball screw pair, servo motor and its driver, planetary reducer, internal cooling joint (for gun drill), CNC system, hydraulic pump, valve and other machine tools have very high reliability. Comparable to imported machine tools, with fewer failures and high start-up rate. Detailed Photos
Main Technical Specifications:

Parameter name	Project		Parameter value
Processing range	Maximum workpiece diameter		Φ5000mm
	Borehole diameter	BTA drill	Φ14~Φ40mm
	Maximum drilling depth		750mm
Drilling head	Quantity		2
	Spindle center distance (adjustable)		170~220mm
	Main shaft front bearing diameter		φ65mm
	Spindle speed		200~2500r/min
	Spindle variable frequency motor power		2×15kW
Longitudinal slide movement (x-axis)	Travel		4000mm
	Maximum movement speed		4m/min
	Servo motor power		4.5kW
Vertical slide movement of column (Y-axis)	Travel		2000mm
	Maximum movement speed		4m/min
	Servo motor power		4.5kW
Movement of double spindle feed slide (Z axis)	Travel		900mm
	Feed rate		0~4m/min
	Servo motor power		2.0kW
Hydraulic system	Hydraulic pump pressure / flow		2.5~4MPa,25L/min
	Motor power of hydraulic pump		3kW
	Capacity of hydraulic oil tank		120L
Cooling system	Cooling pump pressure / flow		6.5MPa,2×200L/min
	Cooling pump motor power		2×22kW
	Cooling tank capacity		3000L
	Industrial refrigerator power		14kW
	Flux of magnetic roller paper tape filter		2×200L/min
	Filtration accuracy		25μm
Chip removal	Chip conveyor type		Flat chain
	Chip removal speed		2m/min
	Chip removal motor power		0.75kW
	Pump motor power / flow		2×1.5kW/2×200L/min
electrical system	Numerical control system		FAGOR8055
	Number of NC axes		3
	Total power of motor		About 112kW
Machine tool dimensions	Length × width × height		About 14×7×6m
Machine weight			About 70t
Accuracy	X-axis positioning accuracy		0.10mm/ overall length
	X-axis repeat positioning accuracy		0.05mm
	Positioning accuracy of y-axis		0.08mm/ overall length
	Y-axis repeat positioning accuracy		0.04mm
	Tolerance of hole spacing	Drilling face	±0.10mm
		Drill out	±0.3-0.8mm/800mm
	Hole roundness		0.02mm
	Aperture accuracy		IT9~IT10

Working temperature: 0ºC~40ºC
power:3 phase 4 wire; voltage:380±10%V ; frequency:50HZ
List of the Key Outsourced Components:

NO	Name	Brand	Country
1	linear guide rail	HIWIN/PMI	Taiwan(China)
2	Numerical control system	FAGOR8055	Spain
3	Planetary gear reducer	APEX	Taiwan(China)
4	Internal cooling joint	DEUBLIN	USA
5	Oil pump	JUSTMARK	Taiwan(China)
6	Hydraulic valve	ATOS	Italy
8	Feed servo motor	Panasonic	Japan
9	Switch, button, indicator light	Schneider/ABB	France / Germany
10	Automatic lubrication system	bijur/herg	USA / Japan

Note: The above is our fixed supplier. If the supplier can not supply the components in case of any special matter, we will adopt the components with the same level, but the quality is no worse than the above.
