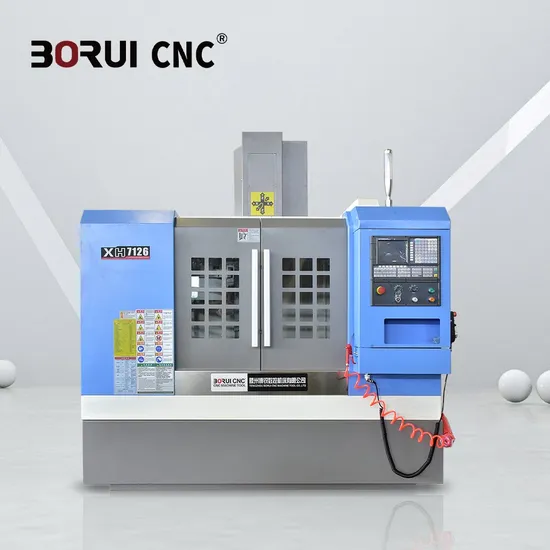

CNC Milling Machine China High Precision Xh7126/Xk7126 Vertical Milling Machine

CNC Milling Machine China High Precision Xh7126/Xk7126 Vertical Milling Machine

US$11,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
XH7126
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Table Size
800*260mm
T Slot Qty-Width*Distance
3-14X70
Spindle Speed
100-8000 R P M
Spindle Nose to Table Surface
125-525mm
Spindle Center to Column Surface
315mm
Spindle Taper
Bt30/Bt40
X Axis Trave
460mm
Y Axis Travel
300mm
X/Y/Z Axis Rapid Feed
8/8/6m/Min
X/Y/Z Axis Travel
460/300/400mm
Transport Package
Free Fumigation Plywood Packaging Steel Base
Specification
2200*1960*2000mm
Trademark
BORUI
Origin
Shan Dong China
HS Code
8459619000
Production Capacity
500 Pieces/Year

Product Description

CNC Milling Machine China High Precision Xh7126/Xk7126 Vertical Milling Machine Product Description
This product X, Y, Z three-axis servo direct control semi-closed vertical machining center, three-axis linear ball guide, guide rail load, span wide, high precision, suitable for heavy load, compact structure and size reasonable, the spindle is servo motor driven by the timing belt. It can realize the clamping of various parts such as discs, boards, housings, cams, and molds at one time. It can be used for drilling, milling, boring, expanding, reaming, rigid tapping, etc. The production of medium and small batch products can satisfy the processing of complex and high-precision parts. The fourth rotary shaft can be equipped to meet the processing requirements of special parts..
CNC milling machine have stronger bearing capacity, three direction guide for quenching hardened rail, guide rail, wide span is big, reasonable, compact structure and dimension spindle for servo motor through the synchronous belt drive.Can be milling and drilling, reaming and reaming and other functions, can be achieved to the plate class, plate class, shells, mold and other complex, high precision parts processing, applicable to many varieties, in a variety of small parts of the plane, inclined plane,groove slots and other process, is the mechanical processing and mould manufacturing ideal processing equipment, canadapt from roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widelyused in aerospace, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other industries.
1.vertical 3 axis mini fresadora cnc for sale : the body casting technology is advanced, the aging process, casting label
2.vertical 3 axis mini fresadora cnc for sale, guide rail are of high precision and high precision.
3. Two type change tool available, manual, pneumatic.
4.metal cvc milling machine with high precision and ATC can be used to step motor or servo motor, to provide customers with a good price.
5. metal cvc milling machine with high precision and ATC Can be customized according to customer requirements of the corresponding products. Product Parameters

Specificiton
XH7126
Worktable size (LXW)
800X260mm
T-slot (NXWXD)
3/14/80mm
X axis travel
450mm
Y axis travel
320mm
Z axis travel
450mm
Distance from spindle nose to worktable surface
90-470mm
Distance from spindle center to column
360mm
Rapid feed speed (X/Y/Z)
15/15/15 m/min.
Spindle taper
BT40
Spindle speed
6000rpm or 8000rpm
Main motor power
3.7Kw
Servo motor torque (X/Y/Z)
6/6/7.7 N.m
Overall size (LXWXH)
2100X1800X1960mm
Net weight
2400kg

Detailed Photos
Company Profile


FAQ
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online , or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q: How can I make the payment?
A: We can make the deal online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q: How about warranty?
A: warranty is one year, but we will offer lifetime service for machine.
