US$700.00-900.00
|
5 Pieces
(MOQ)
|
Basic Info.
Application Field
Agriculture, Livestock, Aquaculture, Fisheries, Forestry
Farming Policy
Dry Cultivating Machinery
Operation
Soil Preparation Machinery, Movable Operation
Arbor Configuration
Horizontal Axis
Transport Package
Wooden Package or Steel Crate
Production Capacity
1000PS/1 Month
Packaging & Delivery
Package Size
170.00cm * 78.00cm * 73.00cm
Package Gross Weight
365.000kg
Product Description
Product Specifications
Model | IGN90 | IGN105 | IGN125 | IGN135 | IGN150 | IGN180 |
Weight | 255kg | 270kg | 293kg | 308kg | 326kg | 358kg |
Tilling Width | 895mm | 1045mm | 1245mm | 1345mm | 1495mm | 1795mm |
Tilling Depth | 150mm |
No. Of Blade | 18 | 24 | 30 | 30 | 36 | 42 |
PTO Turning Speed | 540r/min |
Tractor HP | 16-20hp | 20-28hp | 25-30hp | 30-50hp | 40-75hp |
Product Description

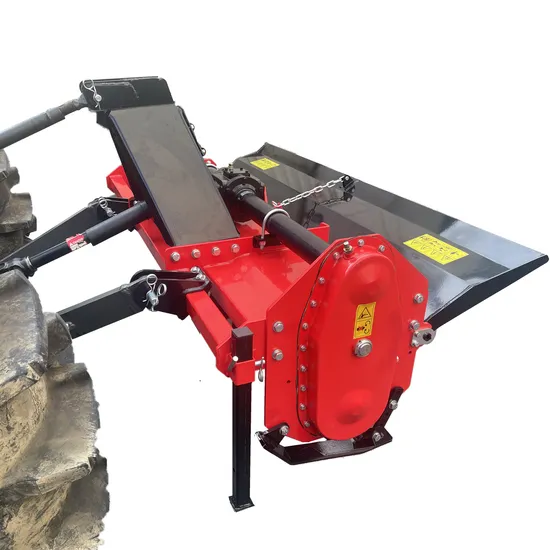

Rotary tillers manufactured by Breviglieri are all PTO-driven and are used to loosen and mix both firm soil, during primary tillage, and tilled soil (e.g. during secondary tillage to prepare the seed bed).
The tilling implements, which can consist of hoe, radial blade or spike assemblies mounted on a horizontal rotor (4 or 6 per flange), work by cutting and ripping clods of soil.
Rotary tiller cultivation can be performed as an alternative to plowing. It is useful in that it effectively breaks up the earth, even uprooting crop residue, and therefore generally eliminates the need for additional soil preparation.
These machines are most widely utilized in the horticulture sector and on naturally loose ground; the working depth is generally not greater than 15 cm. Our Advantages
A whole complete set of production equipment lead to short lead time and better prices of machine.
Guarantee one year warranty of all our products.
Produce machines according to any requirements from our customers.
New machines will be developed every year.
Every model of our machine will be tested before the delivery to the port.
If you want to visit our factory, our boss will give you a best reception.
Beautiful gifts will be provided for all of our customers before every year's Christmas. Work shop and office
