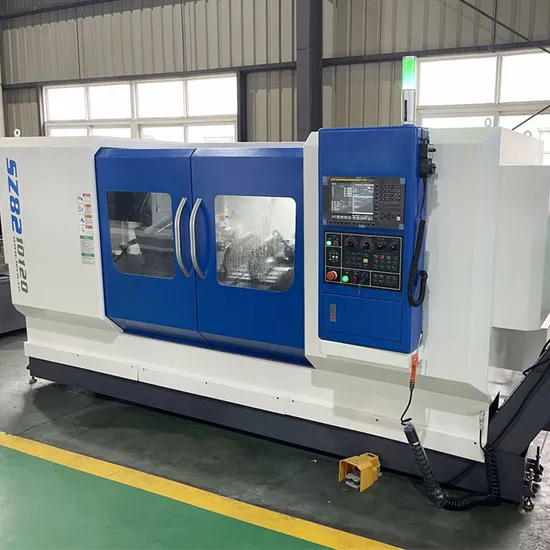

CNC Lathe Horizontal Shaft Turning/Facing Centering Machine for Milling Face/ Drilling Hole Half Shaft

CNC Lathe Horizontal Shaft Turning/Facing Centering Machine for Milling Face/ Drilling Hole Half Shaft

US$30,000.00-46,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
sz8210
Type
Horizontal Lathe
Processing Accessory
Centre CNC Lathe
Power Source
Hydraulic Pressure
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Machinable Diameter
20 -100mm
Machinable Length
400 - 1200mm
Features
Clamping Reliable, Accuracy Stability
Automation
Truss Robot Support Automated on-Line
Transport Package
Wooden Case Package
Specification
standard
Trademark
GOLP
Origin
China
Production Capacity
500sets/Year

Packaging & Delivery

Package Size
400.00cm * 200.00cm * 190.00cm
Package Gross Weight
6500.000kg

Product Description

Δ The machine can accommodate D21, 27, 32, 38, 45, 67, 78 diameters and the fixture can be used for 7 types of parts.
Δ Clamping one time can milling face, drilling hole, roping, chamfer etc;
Δ Horizontal integral casting body , stronger rigidity than vertical ;
Δ High rigidity rectangular hardened rails,durable;
Δ Hydraulic self-centering jig, clamping reliable,accuracy stability;
Δ Special high rigidity spindle,long life;
Δ Can carry with truss or joint robot and automatical line;
Δ More suitable for truss robot support automated on-line;
ITEM SZ8210120 SZ8210150 SZ821080 SZ821060
Clamping diameter scope φ20 -100mm Φ15 -100mm Φ15 -100mm Φ15 -100mm
Workpiece length scope 400 - 1200mm 300-1500mm 200-800mm 200-600mm
Max center drilling clamping diameter Φ26 Φ26 Φ26 Φ26
Max milling amount (one side) 5mm 5 5 5
weight 6500kg 8500kg 5000kg 5000kg
Length x width 4500 × 2000mm 4000 x 2000mm 3200 x 1600 kg 3200 x 1600mm

Hydraulic self-centering fixture , CNC spreading tool, CNC tapping , Automation,
WUXI GOLP CNC MACHINERY CO.,Ltd is located in Wuxi--the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry. The company is mainly engaged in Die-casting machine, CNC Punching machines, Powder compacting machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.

Q: What are your normal lead times?
A: Normally, 30 to 60 days
Q: What kind of package do you offer?
A: Standard wooden case packing
Q: Do you have certification of your machine?
A: CE certificate
Q: How about the warranty service?
A: 24 months
Q: How about the installation and commissioning?
A: we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to debug machinery overseas.
Q: How to select the suitable machine?
A: Pls tell us the machine you need, Includes drawings, specifications and other requirements.
Q: How to do it if we meet the issue during the operation?
A: We provide completely after sales service, and our engineers are available to service machinery overseas.
Q: If we want to learn how to operate the machine, Can you provide it?
A: Yes, we have special service team which will offer you professional guidance.
