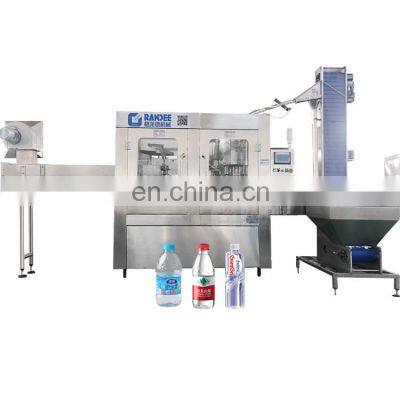

Best price Distilled water filling machine production line mineral water bottling plant

Best price Distilled water filling machine production line mineral water bottling plant

Product Description

Product Description
Best price Distilled water filling machine production line mineral water bottling plantProduct DescriptionMachine description:1.The automatic water filling machine use direct connection technology between air conveyor and in-feeding starwheel to substitute in-feeding screw and conveyor to ease the process of bottle-size-changing. 2.Neck-hanging technology is applied in bottle transportation of the automatic water filling machine. Instead of traditional starwheel, we use neck-hanging gripper to make bottle-size-changing easily , without equipment height adjustment ,only arch board and starwheel such little nylon parts need to be changed. 3.Specially-designed rinser grippers which are made of stainless steel are firm and endurable, with no contact to screw part of the bottle to prevent second pollution in this automatic water filling machine. 4.Rapid gravity filling valve with high flow makes filling faster with accurate liquid level and without any liquid loss. 5.Splint of starwheel using twist descending way to simplify the process of bottle-size-changing. The automatic water filling machine applies to the production of purified water and mineral water. Monoblock 3 in 1 water washing filling capping machine: Automatic water filling machine production line packaging specificationsMaterial: SS304/316Bottle materialShapeFilling volumeFilling level(mm)Neck typePET/Glass bottleSquare/round/flat bottle100-2250mlAccording request±1mmAs requiredAdjustable specificationsBottle size: bottle diameter≤110mm, bottle height≤340mmIf using square bottles, then bottle separating system will be addedFilling temperature2℃-40℃ level control: float ball and pneumatic butterfly valve.Bottle labeling typePacking system Min, Spec.Palletizing systemManual/ automaticHot melt roll-fedPVC shrink labelFull label/half labelFilm shrink packingRobert packingCarton packing2*3 2*4 3*43*5 4*4 4*5 4*6 6-30bags/minLow positionGantry palletizerRobot palletizerUser Ambient ConditionsTemperature: 2-40℃, Humidity: no dewBottle feed-inConveyor with screw for glass bottleAdopt air-conveyor for PET bottle Detailed ImagesWashing Part:The bottle enters into the rinsing part of three-in-one machine through air conveyor.The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip. After the gripping, the bottle is turned upside down with 180 degree and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position againFilling valve: Long tube filling type with 2 times filling process to make sure perfect filling level Liquid tank, filling valves, controlling rings, upgrading cylinder.High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic. Capping Part: Rotative capping turret, suitable to the application of screw plastic caps on PET bottles The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads. The heads are raised and lowered by the action of a follower that is riding on a shaped cam.Blowing Machine with different options: 1. Semiautomatic Blowing Machine for 800BPH-2000bph from 0.2-2.5L bottle with 2 or 4 cavities. 2. Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity,etc from 2500BPH to 12000BPH for 500ml bottle.RO SystemBesides Water filling machine, this RO system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department.This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 100000L/hr.This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank.This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised.We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etcSemiautomatic Labeling Machine: 1. Steam Heating Shrink Tunnel can be applied to different and irregular bottle types, e.g. round,square and flat bottles.It adopts seamless tube, the distribution of low-pressure steam drum and the spout of steam use the separation style which make the tunnel smooth.2. Steam generator the water is fed into the series of wholly automatic electrical heating generator by high pressure potential vortex pump made of copper with short water-supply time and durable service. A floating ball for liquid level is fixed in the water tank to automatically control the water inlet.Working system is all automatically controlled.After connecting the water supply and power supple for 5 minutes or so,it can output the steam continuously with high working efficiency.Semiautomatic Shrink Packing MachineFlow: Putting on bottles by manual→ pushing bottles→ film covering and sealing→ shrinking→ coolingCapacity: 3-5packages/minMax. Packing size: 450*400*330mmMin. Packing size:250*60*140mmBottle diameter: 50mm-110mmPower: 20kw/12kw Company information Workshop detail Our team Our exhibition Project cases FAQQ1: How to find suitable water filling machine or complete water production line?A1: Looking for beverage filling machine in www.grandeemachine.en.china.cnQ2: How to start a water factory business ? What's my budget?A2: First confirm the source water, send the water samples to your local department and get an water analysis report, then tell us how many tons or liters per your you want to make, like 2000liters/hr, 4000liters/hr, 10000liters/hr,etc. Q3: How to confirm the bottle shapes that is very attractive for your customer ?A3: Confirm the plastic bottle size is 355ml, 500ml, 1000ml,1500ml, 2000ml,5000ml or 10000ml, then our engineer can design the bottle shapes for you. Q4: Which kinds of machines included in one complete water production line?A4: PE Resin, injection molding machine, automatic or semi auto plastic blowing molding machine, water filling machine, sleeve shrink labeling machine or self adhesive labeling machine or OPP labeling machine or rotary labeling machine, semiautomatic or full automatic L type shrink packing machine, high speed shrink packing machine, laser or ink printer, palletizer, pallet wrapping machine. Q5: Are you a trading company or a manufacturer?A5: We are the manufacturer of water / beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms . Q6: Do you have technical support after we purchased your machines?A6: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems. Q7: If you buy our machines, can you offer us wear-out spare parts?A7: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing. If you are interested in our machines, please send your inquiry
