J-Valves High Pressure Forged/Stainless Steel F304/F316 Cryogenic 800lb Sw/Bw Gate Valves

Product Description

Product Description

Product description

Product Name	J-Valves High Pressure Forged/Stainless Steel F304/F316 Cryogenic 800lb Sw/Bw Gate Valves
Material	A105N/F304/F316
Size	1/2''-2''(DN15~DN50)
Port	Full Port
Working Pressure	800LB~1500LB option
Connection Ends	SW, BW ends option
Working Temp.	-27ºC~425ºC
Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
Features	Integral forging,Rising stem,Solid disc,Can choose globe check,Bolted bonnet
Design standard	API602
Inspection & Testing	According to API598
Brand	J-VALVES

Shipment

Delivery Time	15-30 Days
Package	Standard Exporting Plywood Case
Shipping Port	Ningbo/Shanghai sea port, China.
Shipping Terms	EXW, FOB, CFR, CIF, etc.
Payment Terms	T/T, DP, LC at sight.
Payment condition	30% prepayment, 70% balance paid before shipping or against copy of BL.
Country of Origin	China
Production Capacity	8000 Ton/year
Certificates	ISO, CE, TS, API6D
MOQ	10 PCS/size(Special material depends on)

Product Parameters

Design & Manufacture standard	API 6D, API 608, BS 5351/DIN3357/JIS B2071
Pressure & Temperature standard	ASME B16.34/DIN3230
Face to face dimension standard	ASME B16.10/DIN3202/JIS B2002
Ends Connection standard	ASME B16.5, ASME B16.47/DIN2543-2545-2501/JIS B2220
Test & Inspect standard	API 598, API 6D/DIN2401/JIS B2003

Testing Pressure(Mpa)

Pressure	150LB	300LB	600LB	900LB	1500LB	2500LB
Strength Testing	3.0	7.5	15.4	23.0	37.5	63.0	Mpa
Seal Testing	2.2	5.5	11.2	16.9	27.5	46.2
Air Testing	0.6	0.6	0.6	0.6	0.6	0.6

Detailed Photos

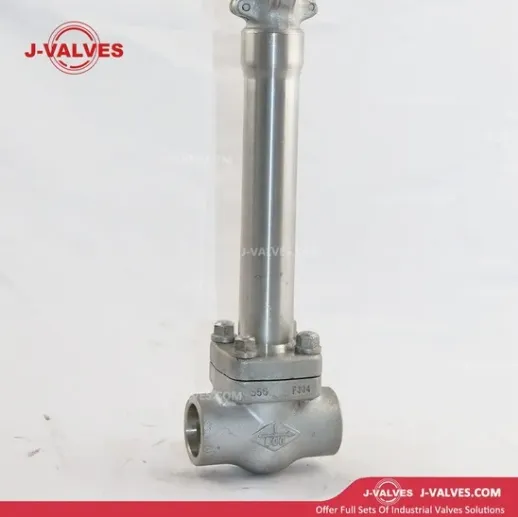

J-Valves High Pressure Forged/Stainless Steel F304/F316 Cryogenic 800lb Sw/Bw Gate Valves are engineered for extreme conditions.
Constructed from F304 and F316 stainless steel, they provide outstanding corrosion resistance. F316, with added molybdenum, is especially resistant to pitting and crevice corrosion. The forging process enhances their mechanical properties, ensuring robustness and reliability.
Rated at 800lb, these valves are designed to handle high - pressure applications. The Sw (socket - weld) and Bw (butt - weld) end connections offer secure and leak - tight joints, crucial for cryogenic environments where even a minor leak can be dangerous. They are ideal for industries like liquefied gas storage and transportation, as they can maintain their integrity at extremely low temperatures, ensuring safe and efficient fluid control.
For more other materials, please contact us.

Relevant Product

Technical Drawing
1.FOUNDRY CASTINGS
2.VALVES RAW MATERIALS
3.VALVES MACHINING
4.VALVES PRODUCTION PROCESS INSPECTION
5.VALVES ASSEMBLY
6.VALVES PRESSURE TESTING
Packaging & Shipping


Company Profile
J-VALVES is an Industrial Valves manufacturer located in Wenzhou, Zhejiang, China, our factory area is 15,000+ square meters, our company has 100+ employees including sales, QC and technicians, etc. Our team has 15+ years of export experience. We are committed to providing comprehensive Industrial Valve Solutions worldwide.
J-VALVES wide range of products includes Ball Valves, Gate Valves, Globe Valves, Check Valves, Butterfly Valves, filters, Plug Valves and Control Valves. Our products are made of Stainless Steel, Carbon Steel, Forged Steel, Alloy Steel, Duplex Steel, Bronze Alloy, Titanium Alloy, Monel Alloy and Nickel Alloy, etc. They are suitable for petroleum, construction, metallurgy, chemical industry, electric power, hydraulics and environment.
J-VALVES advantage is that we have a complete industrial chain, short production cycle of castings and fittings, abundant models and mature technology. In addition to standard valves, our team of technical engineers can also design and manufacture valves according to market demand.
J-VALVES factory holds certificates such as American Petroleum Institute API 6D, API 600, API 602, API 607, CE, ISO9001, ISO14001, ISO45001, SIL3, and ISO15848. These certifications are a testament to our commitment to quality and excellence in the production of industrial valves.
J-VALVES is always oriented to customers' needs, and has built a perfect pre-sale, sale and after-sale service system, providing all-round support from selection guidance to installation and commissioning, and then to after-sale maintenance. With reliable product quality and attentive service, J-VALVES won the trust and praise of customers around the world. J-VALVES hope to bring more excellent products to the world, and set up a good reputation for China's valve industry.

Relevant Certificates

Our Advantages
FAQ
1.How to guarantee your quality? When we install, if there is some quality problems, how to solve it?
We have QC department, quality inspector will check every step when processing and make reports to clients for checking. If any quality problems, we will check and reply you within 24 hours to solve it. Please contact us for any quality problems.
2.What's the temperature and pressure for valves?
For metal seat, temperature range from -196ºC to 425ºC. For soft seat ball valve, temperature range from -196ºC to 200ºC. Pressure range from PN6 to PN420(150LB~2500LB).
3.What's the materials of valves?
Stainless Steel, Forged Stainless Steel, Alloy Steel, Duplex Steel, Titanium Alloy, Nickel-aluminum, Bronze Alloy, etc. Details materials requirements could consult us at any time.
4.How about delivery time?
Our factory is near to Ningbo & Shanghai seaport, generally speaking, export to Asia takes about 7-10 days, export to Europe, Middle East, Africa, North America, South America, etc. takes about 30-35 days by sea.
5.What's the medium for your valves?
Mostly are used in water, gas and oil. When inquiry, it is better to offer your medium, we could suggest materials and valves type for clients.
6.Can ball valves regulate medium?
No, ball valves only can not use for regulating, it is a kind of isolating valve.
7.What are the quarter turn valves?
Ball valve, Butterfly Valve, and Plug valve are rotary motion control valves. They just need a quarter turn to come into action.
8.What's the direction of valves?
Ball Valve and gate valve are bi-directional valves, globe valve, check valve and y strainer have arrow on valve body to indicate direction.
9.What's the difference between rising stem and non-rising stem of gate valve?
The rising stem gate valve can be seen from the appearance whether the valve is closed or open. The lead screw can be seen while the non-rising stem gate valve can not. Non-rising stem gate valve handwheel will go and up when rotate handwheel, rising stem gate valve will not. And The rising stem gate valve requires a larger installation space because of the stem; the height of the Non-rising stem gate valve is small, and it will not take up too much space during installation.
10.What's the difference of gate valve and globe valve?
Gate valve is bi-directional valve, globe valve in single way valve and has fixed direction when install. And globe valve has better sealing than gate valve, when globe valve close, fluid medium add pressure on disc to keep better sealing. Gate Valve wedge is parallel with flange, when close, both side fluid medium add pressure on wedge.
11.Check Valve Introduce.
Check Valve is unidirectional valve, also called one way valve, non-return valve. Because medium flow decide its direction. It has swing type, lift type(piston and ball), vertical type, butterfly type. Wafer type check valve has three types, spring return type, single disc type and double disc type. Anyway, could choose valve type according to medium, pressure and temperature. Masoneilan Valve will give you the best suggestions.
12. What's the type of butterfly Valve?
Generally speaking, for connection ends, butterfly valve has lug type, wafer type, double flange type; for design structure, butterfly valve has concentric type, double eccentric type, triple eccentric type.
