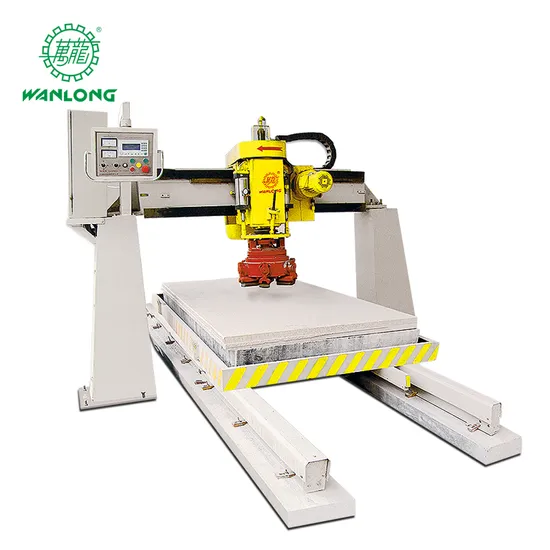

Multi-Functional Marble Slab Surface Grinding and Processing Machine
| US$9,000.00-12,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
QDM-900 1200 1800
Control
CNC
Automation
Automatic
Precision
High Precision
Application
Ceramics, Glass, Jadestone, Cement Brick, Concrete Curb, Marble, Coarse & Fine Grinder
Type for Grinding Machine
Disc Grinding Machine
Grinding Machine Type
Granite Polishing Machine
Grinding Method
Wet Grind
Certification
API, CCC, SONCAP, GOST, ISO, CE, Stone Machine
Condition
New
Main Motor Power
15kw
Voltage
220/380/415V
After Sales Service Provide
Engineer Available Service Machinery Overseas
Max. Processing Size
3000X1800X120mm
Max. Heads No.
1 Head
Water Consumption
4 M3/H
Approximate Weight
3 Tons
Transport Package
Seaworthy Wooden Case for Automatic Cutting Machin
Specification
6500X3100X2000mm
Trademark
Wanlong
Origin
China
HS Code
84642000
Production Capacity
5000sets Per Year
Product Description
QDM900/1200/1800 Bridge Single Head Automatic Polishing Machine| Model | QDM-900 | QDM-1200 | QDM-1800 | |
| Main motor power | mm | 15 | 15 | 15 |
| R.P.M. of polishing head | r/min | 560 | 560 | 560 |
| Traverse feeding speed of polishing head | mm/min | 0-5600 | 0-5600 | 0-5600 |
| Lengthways feeding speed of polishing head | mm/min | 0-4300 | 0-4300 | 0-4300 |
| Supplied by user | Mpa | 0.35-0.5 | 0.35-0.5 | 0.35-0.5 |
| Required air source | m3/min | 0.15-0.30 | 0.15-0.30 | 0.15-0.30 |
| Production capacity | m2/h | 2-2.5 | 2.5-3 | 3-3.5 |
| Max. polishing size (LxWxH) | mm | 3000x900x120 | 3000x1200x120 | 3000X1800X120 |
| Water consumption | m3/h | 4 | 4 | 4 |
| Approximate weight | kg | 2000 | 2500 | 3000 |
| Overall dimensions (LxWxH) | mm | 6500x2200x2000 | 6500x2500x2000 | 6500X3100X2000 |
Configurations:
1. SIEMENS main motor with stronger seats.
2. PANASONIC PLC and inverter.
3. Strong cast iron HT200.
4. Touch sensitive Panel Easy for worker to operate.
5. 3-3.5sqm per hour for medium hard granite.
6. 12 months warranty
