River Brand 30 Ton Amphibious Excavator with The Model of XE220SL

Product Description

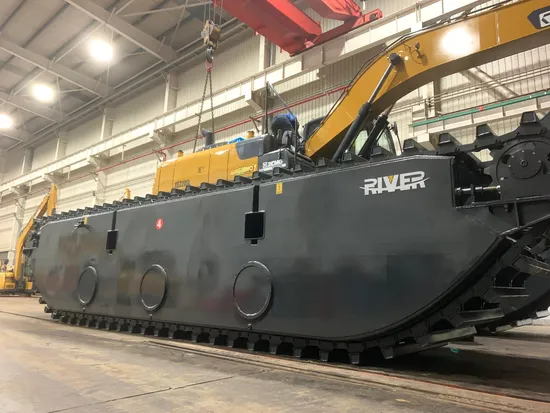

River Brand 30 Ton Amphibious Excavator with The Model of XE220SL

Technical Specification of XE220SL Amphibious Excavator (Tier IV Emission Standard)
Model	XE220SL
Operating weight	30600kg
Engine	QSB7
Power(kw/rpm)	135/2050
Displacement	6.7L
Cyliners	4
Type	Direct injection, four-stroke, water-cooled, turbocharged
Maximum torque/speed	500/1300
Operating weight	30600kg
Long reach front	10630mm
Bucket capacity	0.8m³
Hydraulic System
Main pump	Piston pump*2
Main pump rated flow L/min	2*209
Main safety valve pressure MPa	34.3/37
Travel system pressure MPa	34.3
Slewing system pressure MPa	28
Pilot system pressure MPa	3.9
Fuel tank(L)	1250
Hydraulic oil tank(L)	220
Working Range
Maximum digging height	12420mm
Maximum unloading height	9505mm
Maximum digging depth	7480mm
Maximum digging radius	12090mm
Minimum turning radius	4185mm
Pontoon Undercarriage Dimension
Length (mm)	8140
Width (mm)	1500
Height (mm)	1800
Overall machine width (mm)	4500mm

Usage of Midium-sized River XE220SL Swamp Buggy
XE220sl amphibious excavators made by RIVER is a Tier IV Emission Standard Machine, which are primarily used for dredging, land reclamation, swamp and wetland construction, waterway clearing, and environmental restoration projects.
This amphibious excavator comes with an 11-meter extended arm. However, we can customize the extension length to meet your specific requirements, which will alter the digging range, the long reach front can be 11 meters, 13 meters, 15 meters or even longer. If you have any customization needs, please contact us, and we will provide you with a comprehensive solution!
Main Applications of XE220SL Swamp Buggy
1. Wetland Restoration: Ideal for restoring marshy areas, removing invasive species, and reshaping terrain.
2. Dredging Operations: Efficiently clears sediment from rivers, lakes, and ponds, reaching inaccessible areas.
3. Aquaculture Construction: Essential for building ponds, creating access channels, and installing aquaculture infrastructure.
4. Flood Control: Crucial in managing water levels, clearing debris, and reinforcing embankments during flood events.
5. Environmental Remediation: Safely removes contaminated soil and debris from water bodies in polluted sites.
The Supplying Range of Swamp Buggy
We offer a range of models and brands of amphibious excavators spanning from 5 to 50 tons, along with specialized amphibious undercarriage compatible with excavators within the same weight range. Additionally, if you require modifications for a second-hand excavator, feel free to reach out to us for tailored solutions.
The Advantage of Amphibious Excavator Made by River
1. With over two decades of expertise in river dredging, we've spearheaded numerous construction projects, tailoring our products closely to user requirements.
2. We sell surpass 300 units of amphibious excavators per year, earning us the trust of a growing clientele and accolades from Everbright customers, validating our market prowess.
3. As an accredited supplier for renowned excavator manufacturers, our product standards surpass industry benchmarks, setting us apart from competitors.
4. By meticulously overseeing the sourcing of raw materials, we ensure that each piece of equipment undergoes rigorous quality control, guaranteeing optimal performance upon leaving our factory.
The Advantage of Lightweight Design Pontoon Undercarriage
