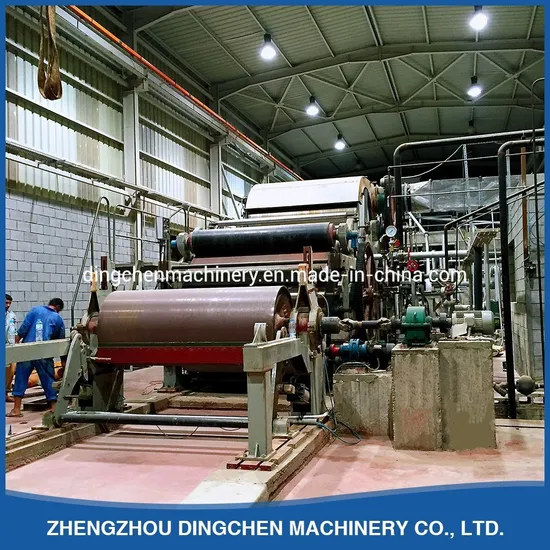

Corrugated Paper Machine, Kraft Paper Machine, Test-Liner Paper Machine

Corrugated Paper Machine, Kraft Paper Machine, Test-Liner Paper Machine

US$200,000.00-1,000,000.00 1 Piece (MOQ)

Basic Info.

Condition
New
Certification
ISO 9001:2000
Automation
Automatic
Suitable for
Paper
Paper Thickness
Thick Paper
Model No.
3800mm
Raw Material
Waste Paper Waste Carton
Used Fields
Virgin Craft Paper, Making Kraft Bag Paper
Output Paper
Virgin Kraft Paper, Corrugated Paper
Capacity
2-60tons Per Day Accepted
Technical Training
Support
Sales Service
Support
Boiler
Gas, Coal, Diesel Boiler Can Be Choosed
Transport Package
National Standard
Specification
ISO
Trademark
Dingchen machinery
Origin
Qinyang City, Henan Province in China
HS Code
84392000
Production Capacity
30 Sets Per Year

Product Description

Corrugated Paper/Kraft Paper/Toilet Paper/Testliner Paper/Fluting Paper/ Recycled Paper Making Machine
Paper Machine Buying guide
In order to recommend paper machine and make detailed technical proposal for you as soon possible ,please tell us
the following technical parameters:
(1)what kind of paper do you want to produce?
(2)what kind of raw material you will use?
(3)how many tons do you want to produce per day(24hours)?
(4)what is the output paper width of jumbo roll?--mm;
(5)What is the output paper weight(thickness)?--gsm.
Thanks for your cooperation!
Kraft Paper Making Machine Technical parameters:
Main products Fluting paper Corrugated Paper Testliner Paper Kraft Paper Duplex Board Paper
Test liner Ration 90-150g / m2
Capacity 200t/d
Net paper width 3800mm
Gross paper width 3860mm
Working speed 250-380 m / min
Design speed 400 m / min
Gauge 4900 mm
Roll of dynamic balance G2.5
Cylinder of dynamic balance G4
Batch-off roll of dynamic balance G1.6
Drive mode AC motor variable frequency speed regulation segment drive
Paper machine layout form Single layer layout
Pattern Left hand machine
Banner moisture difference ≤±1%
Banner quantitative difference ≤±1.5%
Dryness of Craft Paper
Paper dryness out of wire part 20-22% (± 1%)
Paper dryness out of press section 44-46% (± 1%)
Before sizing 92%
Paper roll machine 92%
Lateral shrinkage About 3.5%
Fresh water, clarified water
Requirements clear, colorless, sand removal
Water pressure 3.0MPa, 2.0MPa, 0.5MPa
PH value 6-8
Power Supply
AC voltage high pressure,380/220V±5%
Control point pressure 220/24V
Frequency 50HZ±1%
rinting Paper/A4 Paper/Wrinting Paper Making Machine
Main products Printing Paper/A4 Paper/Wrinting Paper/Copy Paper
Paper weight 60-90g / m2
Capacity 5-100t/d
Net paper width 1092-3200mm
Paper Machine Raw Material
Paper is sorted into different grades such as waste paper, old carton box, reed, wheat straw, bamboo, bagasse, newspapers, duplex, white cutting, boards, core pipes, etc suitable for manufacturing different grades of Fluting paper Corrugated Paper Testliner Paper Kraft Paper Duplex Board Paper.
Company Information Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.have won customers' consistent affirmations.We have a large scale of products regarding paper machinery, including:A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressurescreen, screen basket, pulp pump etc.)B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier papermachine, head box, cylinder mould, dryer cylinder, roller etc.)C.Paper making finished devices (Paper calender, pope reel,size press,paper rewinder etc.)Meet customers' requirements and exceed customers' expects.We wish to found long-termcooperation with your companyTechnical Advantage1.Experienced producing team2.Advanced technological strengthProduct Advantage1.Through the international authentication2.The same material the most preferential price3.A lot of varieties for the customer to chooseService Advantage1.Technical consultation2.Project evaluation3.Detailed design of factory4.Installing and testing the whole production line5.Training engineers and workers6.Supplying spare parts for long timeThe business process1.send your requirements:raw material,capacity,paper grammage2.we make the solution to you3.come visit and negotiate4.sign contract5.first payment6.production7.pay spare money8.delivery9.installation ,training,test run10.production consultlation
Packaging & Shipping
Our Services

FAQ
Other machine 1.Toilet paper machine2.Cultural paper machine3.Kraft paper machine
4.Paper core tube machine
5.Toilet paper converting/rewinding machine
