Eg8247W5 Gpon ONU 2.4GHz with 4ge 1tel 1USB 1CATV 4 Antennas Optical Modem

Product Description

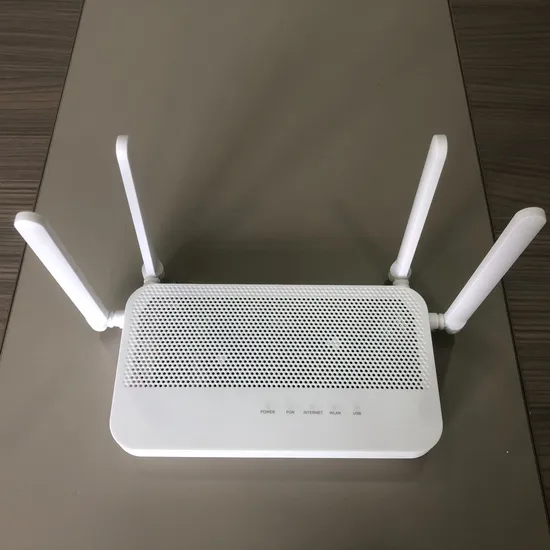

Product Description Dual Band Catv ONU For EG8247W GPON ONU 4GE+4WiFi+POTS+CATV EG8247W5 4GE+1POTS+2.4G/5G Wifi+RF Catv Router Modem The EchoLife EG8247W5 is a routing-type ONT in the all-optical access solution. It uses the GPON technology to implement ultra-broadband access for users.It provides 4 GE ports, 1*POTS ports, 1*USB ports, 1*CATV ports and 2.4GWiFi ports. The high forwarding performance ensures the user experience of voice, data and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability. Product Parameters

Item	EG8247W5
Network-side Port	GPON
User-side Ports	4*GE+1*POTS+1*USB+CATV+2.4G&5G WiFi, 5dBi
Indicators	POWER/PON/INTERNET/USB/WLAN
Working environment	Operating temperature: 0ºC to 40ºC
	Environment humidity: 5% to 95% (noncondensing)
Static power consumption	9.7 W
Maximum power consumption	28W
WLAN	IEEE 802.11 b/g/n (2.4G) IEEE 802.11 a/n/ac (5G) 4 × 4 MIMO (2.4G) 4 × 4 MIMO (5G) Antenna gain: 5 dBi WMM/Multiple SSIDs/WPS 2.4G&5G concurrent Air interface rate: 300 Mbit/s (2.4G), 867 Mbit/s (5G)
GPON port	Class B+ Receiver sensitivity: -27dBm ~ -29dBm Overload optical power: -8 dBm Wavelengths: US 1310 nm, DS 1490 nm Wavelength blocking filter (WBF) of G.984.5 Flexible mapping between GEM Port and TCONT GPON: consistent with the SN or password authentication defined in G.984.3
Power adapter input	100-240 V AC, 50/60 Hz
System power supply	11-14 V DC, 2 A

Company Profile Anhui Zhuhuai Import and Export Trading Co.,Ltd. is committed to promoting the development of global optical fiber, optical cable and switch trade. We have a team of energetic and passionate professionals, adhering to the values of "Integrity, Innovation, Interconnection and Progress", with the vision of "Linking the World, Boda World". Our business covers intelligent buildings, overseas optical fiber, fiber optic cables and switches. We always adhere to the customer demand-oriented, through innovation and excellent quality, to provide customers with the best service. Our products are exported to many countries and regions such as Africa and Southeast Asia, and are highly trusted and praised by our customers.
Business field Our business field covers the research, development, production and sales of fiber optic cables as well as switches. Among them, fiber optic cable products include fiber optic cables, fiber optic patch cords, fiber optic adapters, etc., and switch products include Ethernet switches, POE switches, etc.. These products are widely used in the network construction of telecom, mobile, Unicom and other carriers; not only that, but also in the network upgrade and transformation of government, enterprises, schools and other organizations often use our products.
FAQ Q: Are you a factory or trading company? A: we are a manufacturer & trading company Q: How to proceed an order for the products? A:Firstly,let us know your requirements or applications;
Secondly,we quote according to your requirements or suggestions;
Thirdly,customer confirms the samples and places deposit for formal order;
Lastly,we arrange the production. Q: Whats your main products? A:Outdoor fiber optic cables;indoor fiber optic cables;FTTH Drop cables ;ADSS; indoor armored patch cords fiber cable SC/LC/FC/ST;MTP/MOP optical patch cord. Q: Do you have certificate for raw material A:We build long term relationship cooperation with quality ISO9001,ROHS raw material supplier. Q: What''s your products'' advantages? A:Good quality and competitive prices. Strictly quality control when producing.
Professional team work, from design, development, producing, assemble, packing and shipping.Good after-sale service.
Professional online technical support can be provided. Moreover, if any problem of the goods, we will help to solve the problem or provide replacement of the goods. Q: What payment method do you accept? A:T/T(Bank transfer), Western Union, Money Gram, Paypal, etc. Q: What is your delivery time? A:7-15 days for common fiber cables, 10-20 days for your customized requirements. Q: Do you accept OEM,ODM? A:Yes, we accept them .
