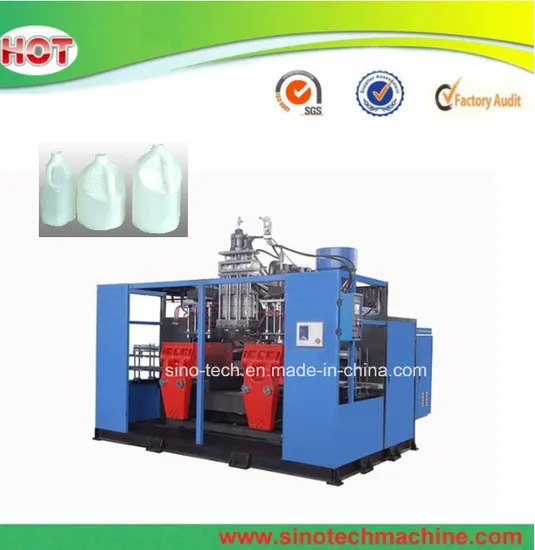

Automatic Plastic Bottle Extrusion Blow Molding Machine

Automatic Plastic Bottle Extrusion Blow Molding Machine

US$18,000.00 1 Set (MOQ)

Basic Info.

Model NO.
TDM-80
Raw Material
PP, PE, HDPE...
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, SGS, ISO9001
Production Name
Automatic Plastic Bottle Making Machine
Usage
Produce Various of Barrels, Cans, Kettles and etc.
Blow Moulding Type
Extrusion Blow Moulding
Suitable
Oil Bottles, Detergent Bottles, Cosmetic Bottle, Wate
Certificate
Ce, SGS, ISO9001
Transparent Lever Line
Available
Abroad Service
Available
Transport Package
Iron Tray or Wooden Case
Specification
CE, ISO9001
Trademark
SINO-TECH
Origin
Made in China
HS Code
8477401000
Production Capacity
Depending on Your Sample

Product Description

Auto plastic Extrusion blow moulding machine
1. The screw adopts high potency melt to make sure the material well mixed.
2. Adopt frequency control of motor system to reduce the power consumption.
3. Adopt horizontal movement frame to improve stability and speed.
4. The oil cylinder is in the center of the moldboard, uniform stress for quality products and increase life span.
5. High stench guild rod controller the mold open and clamp, to enhance the steadily and high efficiency.
6. The extrusion head use spreader or screw type to well mixed the thickness and easy to change different color.
7. Advanced design to eliminate the melt material degrade in the runner, to avoid the perform draw-down and the welding line.
8. The precise time control system assured good quality, suitable weight and reduces production cycle.
9. Freely to move the extrusion foundation backward or forward to make the exchange of the mold easy.
10. Multi-function bottom blowing type for shaped products.
Item Code Item Standard Code Manual Note
Extruder
(Main extruder)
Max. Capacity 250L
Main screw φ 120mm High efficiency of mixing
Screw L/D 32: 1
Screw material 38CrMoALA
Max. Extruder consumption 350KG/Hr Take EHMWDPE for example, change with material density
Twisting transition method Electrical machinery, Gear box, DC Motor Hard gear with DC motor
Driving motor 132KW
Screw rotate speed 5---60r/min
Ahead/back adjusting Yes
Up/down adjusting Yes
Temperature control zone 5 Japan MTSUBISHI
Heating power 5φ 10KW
Cooling for blower 5
Cooling function Yes Cooling water
Clamping unit (Mold opening/closing unit) Structure With patented two-bar timing clamping structure in high speed and high force, to achieve quality products.
Clamping directions Ball rail For high precise location for longer service life.
Clamping speed 250mm/sce; 15m/min
Platen dimension 1320*1650 mm (W*H)
Max. Mold dimension 1100*1720 mm (W*H)
Mold opening stroke 1000 mm
Platen distance 800~1800 mm Min. ~Max.
Clamping force 770 KN
Mould thickness scope 810~1000 mm
Fixing pattern of mold Mold press platen
Mold opening/closing stroke control Inducing Switch+moving Discriminate mold opening/ closing end, mold opening/ closing slow speed,

Any question,please call me.
