US$16,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Separation Mode
Sedimentation Type
Operating Type
Continuous Type
Centrifuge Type
Disc Centrifuge
Machine Type
Grain Processing Equipment
Application
Corn/ Cassava Starch
Transport Package
Wooden Case
Specification
material: stainless steel
Production Capacity
500sets/Year
Packaging & Delivery
Package Size
1500.00cm * 1000.00cm * 1600.00cm
Package Gross Weight
1020.000kg
Product Description

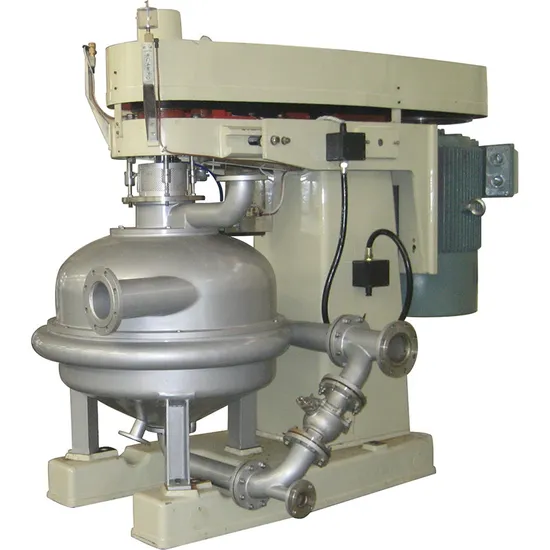

Big Feed Capability Centrifugal Filter Separator High Rotation Stability for Starch Industry
Advantage of starch separator from Shenzhou
1. Adopting top-suspension driving, which makes the separator with high rotation stability, and largely improves the using life of bearings and main shaft.
2. Adopting automatic control of lubricating oil circuit, which protects and prolongs the using life of driving system.
3. Adopting big nozzles, which has big feed capability, reduces the chances of block, assuring the continous production.
4. Fitted with hydraulic system for lifting drum, which makes more easily to check the drum and replace nozzles.
5.The material of drum adopts imported high-strength corrosion-proof stainless steel, which assures the safety and stability of separator.
Specification of starch separator from Shenzhou Group
Model
| Treatment capacity (L/H)
| Speed of drum
| Motor power (Kw)
| Weight(Kg)
| Outline dimension (mm)
|
DPF520 | 25-45 | 4650 | 37 | 1550 | 1617*1240*1565 |
DPF600 | 30-60 | 2850-4800 | 75/55 | 3500 | 2000*1000*2050 |
DPF800 | 22-115 | 2750-3300 | 132/110 | 7800 | 2800*1500*2200 |
DPF935
| 45-225
| 2250-3050
| 250-220
| 11000
| 3200*1800*3100
|
Description of starch separator from Shenzhou Group
In the starch separation process, the separator rotates in high speed the creates the centrifugal force, so the seoaration efficiency id improved.At the same time maximized the production efficiency.
We devote ourselves to the most proffessional and efficient in starch processing industry, it collects all the advantages of various separator such as small vibration, large capability, stable running and so on.
Application of SHENZHOU Starch seprator
It's mainly used in pre-concerntration starch, separation of starch and gluten, concerntration of gluten(protein), clarify of process water in the after step and so on.
Starch Centrifuge Separator is mainly used for starch refining production with corn, cassava, potato and wheat as raw materials. It is mainly used for pre-concentration of raw pulp, separation of gluten and starch, gluten concentration and washing and clarification of subsequent processes. It can also be used for pre-concentration, separation, concentration and clarification of two different materials in pharmaceutical, chemical and food industries suitable for the function of the machine. In the starch separation process, the Starch Centrifuge Separator rotates in high speed then creates the centrifugal force, so the separation efficiency is improved. At the same time maximize the production efficiency. It collects all the advantages of various separator such as small vibration, large capacity, stable running and etc. It's mainly used in pre-concentration starch, separation of starch and gluten, concentration of gluten (protein), clarify of process water in the after step.
After service from Shenzhou
1. Months guarantee period from machine arriving date.
2. Sufficient spare parts in stock are available .
3. Technicians are availabled for overseas service.
4. The customer could get trained by our experienced tecnician.
Shenzhou Starch separator package show:
