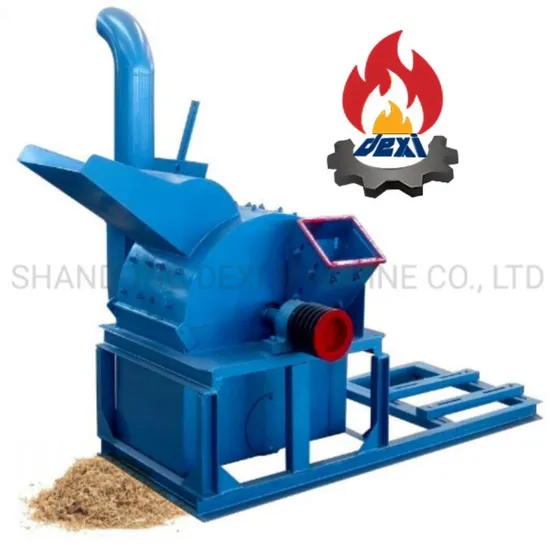

Waste Wood Crusher Machine to Making Fine Wood Sawdust Directly

Product Description

Product Description
PFJ Type wood crusher machine is multi-functional crusher machine, has 2 different feeding hopers, one for feeding some small size like wood chips, another feeding hopper for wood log or big size wood branches, the output will be fine sawdust.
When the PFJ wood crusher machine is working, the cutter disc rotor rotates at high speed to cut the material into small wood chips. The wood chips are accelerated in the rotating airflow of the cutter head, repeatedly impacted, cut and rubbed, and at the same time are hit by the hammer on the cutter head rotor, so that the wood chips are completely crushed.
The crushed sawdust is affected by the suction force of the fan, and the crushed material enters the cyclone separator with the air flow, and is subjected to the centrifugal force of the cyclone and the centripetal force of the air flow. The crushed material falls from the bottom of the cyclone when the fan is turned off, and the rest The dust is discharged from the top of the cyclone, which can be connected to an additional dust collector for dust removal.
Detailed Photos

Product Parameters

Model	Power (KW)	Capacity (kgs/h)	Feeder size (mm)	Qty of blades (pcs)
PFJ-150	11/15	300-500	150x150	4
PFJ-180	15/18.5	500-700	180x180	4
PFJ-230	30/37	600-1000	230x230	4

Customer visiting

Packaging & Shipping
Company Profile
Shandong DEXI machine is a company specialization production and sales wood pellet machine, animal feed pellet machines and organic fertilizer machines… and we also provide the related products for pellet making line, such as wood shredders, sawdust machines, disc slicers, drum chippers, wood debarker, sawdust dryers, wood planers and other agricultural and forestry/wood processing equipment.
We are more than 14 years exporting rice experience. Products have exported to more than 100 different countries and regions, got the customer's high praise and good reputations.
Any demand for such equipment, feel free to contact us.
