Pet Bottle Stretch Blowing Molding Machine with Automatic Packing

Product Description

A .LTYM-2500B Stretch Blow Moulding System

LTYM-2500B stretch Blow Molding Machine (2-cavity,for maximum 2L bottle) (2,2L)
Model	Parameter		Qty	Unit price (USD)	Total price (USD)
LTYM-2500B stretch blowing molding machine	2000-2800BPH for 12g 30mm 250ml bottle in stable production;12g 38mm 250ml 3000		1 set
Auxiliary Machines
HP AC high pressure aircompressor	2.4/30		1 set
HP Air dryer Group	3.0/30	Including Three Air filters, Air dryer and 3.0/30 1m3 air tank31.0/30	1 set
Air Chiller	3P		1set
Blow Mould	2-cavity Aluminum 7075	30mm2000ml	1 set
Total Price USD FOB

B.Brief Introduction
LTYM-SS series is the most stable two-step fully-automatic pet stretch-blow molding machines(reheat). It has 2 to 8 cavities and the maximum capacity of the products is 2L. It can blow bottles in shapes: carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET and PP etc.
1).High Automatization
2).High Intelligence: The machine can be controlled through touch screen and running status is shown on it.
3).High Quality: Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
4).High Speed: 3500BPH(4-cavity), 6500-7200BPH(6-cavity)
5).No Contamination: Closed production zone, good self-lubrication system avoid contamination.
6).Low Cost: Low consumption of electricity, air and water.
7).High Transparency: Easy maintenance, absolute safety, visual inspection, low noise.
C. Machine Features
C.1. Stable performance with advanced PLC.
C.2. Conveying preforms automatically with conveyor.

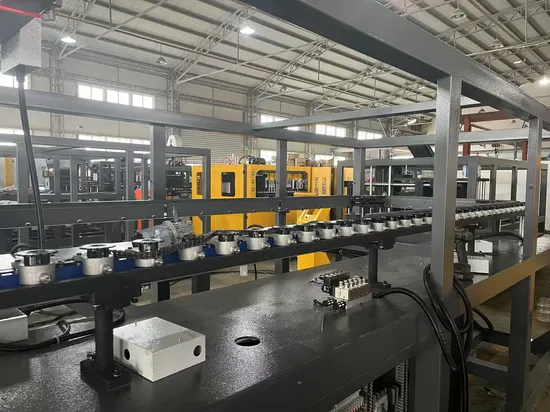

C.3. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
C.4. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
C.5. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
C.6. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
C.7. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
C.8. Strong clamping force with high pressure and double crank links to lock the mold.
C.9. Two ways of operating: automatic and manual.
C.10. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
C.11. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
C.12. Contamination is avoided for the bottle body.
C.13. Ideal effect of the chilling with the chilling system.
C.14. Easy installation and starting
C.15. Low rejection rate: less than 0.2 percent.
D.Technical Parameters:

Model		Unit	LTYM-SS2500	LTYM-2500B
Clamping System	Cavity Quantity	cavities	2	2
	Clamping Force	KG	35000	45000
	Mold Stroke	mm	90	110
	Stretching Rod Stroke	mm	300	400
	Stretching Rod Dia.	mm	12	12
	Bottom Mould Stroke	mm	50	50
	Pitch Distance	mm	76.2	120
	Preform Holder Quantity	PCS	62	52
Container Spec.	Max.Container Volume	ml	650	2000
	Max.Container Height	mm	260	330
	Max.Container Diameter	mm	68	115
	Max Preform Height	mm	100	140
	Max.Neck Diameter	mm	38	38
Output		BPH	2000-3000	2800
Electrical System	Heating Oven Quantity	Zone	2*2	4*4
	Number of Lamp	PCS	2*8	4*8

	Heating Power	KW	15	20
	Installed Power	KW	32	48
	Voltage	Voltage	Customized	Customized
	Actual Power	KW	25-30	30-35
Air System	Operating Pressure	Mpa	0.7-0.9	0.7-0.9
	Blowing Pressure	Mpa	2.5-3.0	2.5-3.0
	High Pressure Air Consumption	L/min	2.4/30	2.4/30
Chiller System	Temperature Range	Degree	9-13	9-13
	Pressure	Mpa	0.4	0.4
	Capacity	HP	3	3
Machine	Machine Dimension	M	2.8*1.9*2.2	3.3*1.8*2.2
	Machine Weight	KG	2000	2500

E.Configuration List

Name	Origin	Brand
Inductive Sensor	Japan	Omron
Magnetic Sensor	China	Segula
Proximity Sensor	China	Segula
Power Switch	France	Schneider
Breaker	France	Schneider
Intermediary Relay 24V	France	Schneider
AC Contactor 220V	France	Schneider
Signal Amplification	China	Touchwin
Touchscreen(PLC)	China	XinJie
24V Power Box 24V	Taiwan	Delta
Heating Lamp	China	Jieneng
Motor in Preform elevator and unscramble	China	Taili
Adjustable Voltage Module	China	Aoyi
Temperature Regulator	China	Yatai
Throttling Valve	Taiwan	Airtac
Movement Valve	KOREA	ARK
Automatic type	China	XinJie
Stretching Cylinder
Main Driving, Bottle	China	XinJie
Clamping Cylinder
stretching, Mould clamping)	China	XinJie
Rail	Taiwan	PML
Cylinder for Pushing Preform	JAPAN	SMC
Cylinder in robot for evelating preform	JAPAN	SMC
Cylinder in robot for preform transfer	JAPAN	SMC
Preform Rotary Cylinder in Robot	JAPAN	SMC
Cylinder for Robot Clip	Taiwan	Mindman
Sealing Cylinder	Taiwan	Lind

F.One Year Free Charge Spare Parts List

No	Item	Qty
1	Infrared lamp	10pcs
2	Stretch cylinder sealer	4pc
3	HP Air pipe	10m
4	LP Air pipe	10m
5	Sealing cylinder seals	4pcs
6	24V magnet valve coil24V	2pcs
7	Robot clip	4 PAIRS
8	Magnetic switch	1pc
9	Preform holder	4SETS
10	Approximity Sensor	1pc
11	Air Connector	20pcs
12	Instruction	1pc
13	Temperature controller module	1pc
14	relay 24V 24V	1set
15	Tool box	1set
16	Inner hexagon spanner(4,6,8,10,12)	1set
17	Solid wrench(8,10,12,13)	1pc for each
18	Slot type screwdriver(3inch, 4inch)	1pc for each
19	Phillipe screwdriver(3inch, 4inch)	1pc for each

G.Other Terms and Conditions
i) Delivery: Within 40 days from the date of receipt of 50% downpayment
ii) Origin: P.R. China.
iii) Payment: 50% by T/T in advance 50% before delivery by T/T.
v) Insurance: To be covered by buyer.
vi)Validity: 4 weeks from the date of issue of this offer.
vii) Packing: Export standard seaworthy Packing.
viii) Installation: Our engineer will travel to buyer's country within 10-20 days after receipt of confirmation in the written form from client informing that the goods arrived in site and civil works is ready for installation. The client has to buy round tickets and arrange all local facilities including food, lodging, and transportation during their staying period in buyer's country. The buyer would pay USD 120/day for each engineer during journey.
ix) Warranty: One year from the date of Installation or acceptance of the Plant whichever comes first.
Note: If the client needs our manufacturer to provide the training program depending on the experience of the local people and the client requirement as the local people has no experience in this kind of plant, the client has to send their people (about 4 technical engineers/workers) to China to receive the training in their factories. The training time will be 20-30 days. The cost in this regard will be discussed later after confirmation of this proposal.
