Medical Flexible Reinforced Plastic Convoluted Corrugated PTFE Hose with Stainless Steel Wire Braid

Product Description

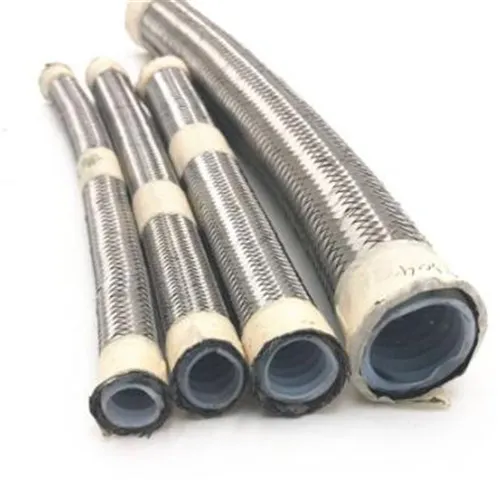

Flexible Reinforced PTFE Convoluted Corrugated Hose with Stainless Steel Wire Braid
Product Description Construction: Tube: smooth bore PTFE
Cover: SS304 / SS316 Braided
The shape of hose: Smooth or corrugated
Temperature: -54ºC to +220ºC
Application: Mainly used for conveying various chemicals, ships, automobiles, Marine industry machinery hydraulic systems, etc.
Coil length: 20m-100m (Random Length).
Standard: SAE100 R14
Connector: JIC,NPT,BSPFitting, flange etc.

Item code	Inner Diameter		Outer Diameter	Working Pressure	Min. Bending Radius	Approx. Weight
	inch	mm	mm	bar	mm	Kg/m
PS-8	5/16"	8.0	13.5	97	20.3	0.15
PS-10	3/8"	10.0	14.5	76	22.5	0.17
PS-12	1/2"	13.0	19.5	50	25.4	0.31
PS-16	5/8"	16.0	24.5	45	76.2	0.47
PS-19	3/4"	19.0	27.3	38	88.9	0.57
PS-25	1"	25.0	35.0	30	99	0.8
PS-32	1-1/4''	32.0	33.0	25	112	0.98

Flat PTFE Hose
The Model type PTFE Hose is a smooth bore PTFE hose with a stainless steel braiding, available up to 1-1/4" diameters. The diameters listed reflect nominal sizing.
It is lightweight, handles a very broad range of chemicals at relatively high temperatures and pressures, and will not deteriorate in service. It is used in countless tough industrial applications where continual large bending is not required. Commonly provided with JIC, NPT or many other fittings.
Also available with a convoluted PTFE core for tighter bends
Corrugated PTFE Hose
The Model type PTFE Hose is a convoluted PTFE hose with a stainless steel braiding, available up to 4" diameters. The convolutions provide a far tighter bend radius than most smooth bore alternatives. It is lightweight and handles a very broad range of chemicals at relatively high temperatures and pressures, including full vacuum.
It is used in countless tough industrial applications where a smooth bore is not required. Also available in conductive PTFE.
Commonly provided with JIC, NPT or many other fittings.
Detailed Photos

Production Process

Company Profile We make all kinds of flex-related products, such as flexible metal hoses, PTFE hoses, expansion joints, braidings, hose fittings, and related machines, such as elastomer hose forming machine, hydraulic forming machine, wire braiding machine, rewinding machine, bellow forming machine, etc. We are the lead manufacturer of flex-related products in China.
We supply metal hoses and braid with the widest selection of products ranging from the braided hose for value-oriented customers to super flexible hoses to ultra-high pressure and high-temperature hoses that satisfy the industry's most demanding applications. Working closely with customers and suppliers helps us build quality products that meet or exceed compatibility and functional requirements, safety, and environmental standards and deliver dependable, repeatable performance and value.

Packaging & Shipping
FAQ Q1. Who is COMFLEX?
COMFLEX is a reliable manufacturer and exporter of flexible metal hose, hydraulic hose, rubber hose, and PVC hose in China for more than 30 years in the market.
Q2. What are you offering?
All kinds of metal hoses and rubber hoses
Q3. How Can I get to COMFLEX?
COMFLEX is close to Shanghai, you can fly to Shanghai Pudong Airport, then we will pick you up.
Q4. What is the delivery time for one 20ft container?
Usually, it is 20 days after receipt of the deposit.
Q5. What is your payment term?
L/C, T/T, Western union.
Q6. What is your price term?
The price is based on FOB, CFR or CIF.
Q7. What is your port?
Shanghai
Q8. Quality control, warranty, and guarantee
We control the quality of raw materials. We only work with stated enterprises and their quality is stable; Our workers have rich experience, and our production machinery is advanced; Before packaging, we make very strict tests and inspections by QC.
