Zlj 1000 *830 Prensa Vulcanizadora PARA Banda Transportadora

Zlj 1000 *830 Prensa Vulcanizadora PARA Banda Transportadora

US$4,000.00
1-4 Pieces
US$3,800.00
5+ Pieces

Basic Info.

Model NO.
Zlj 1000 *830
Certification
CE
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Horizontal
Application
Conveyor Belt Splicing and Joint
Keyword
Vulcanizer Press
Material
Alloy Aluminum
Pressure
1.5MPa
Cooling
Water Cooling
Heating
Electric
Function
1200mm Rubber Conveyor Belt Splice and Joint
Name
Rubber Conveyor Belt Joint Vulcanizing Press
Transport Package
Standard Export Package
Specification
As Equipment Size
Trademark
THEMAX
Origin
China
HS Code
84778000
Production Capacity
200sets/Month

Product Description

Zlj 1000 *830 Prensa Vulcanizadora PARA Banda Transportadora
Application of rubber belt vulcanizer : 1. Steel Cord Belt Intermediate Rubber is an uncured rubber for hot vulcanized belt splicing.

2. It is designed to use as an inter-core cord rubber replacement material in splicing steel cord conveyor belts or a tie gum in fabric belts.
3. The material is designed to bond to cured intercore rubber and wire cords in all standard grade steel cord conveyor belts, as well as fabric belt cured skim rubber and general bond improvement material for general grade fabric conveyor belts.

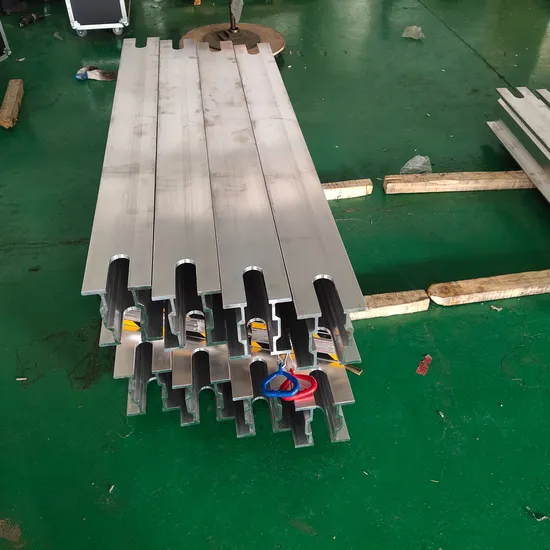

The ZLJ sectional has uniform pressure bag and aluminum/steel bolt and high grade aluminum platens and beams with restraining system set as standard. Such belt splicing system designed to be portable and easy to set-up and remove from the site.
We can manufacture to all sizes and pressure up to 200 psi required for different fabric belts and steelcord belts.
Technical Parameters:
* Vulcanizing temperature: 145ºC (adjustable 0~200ºC)
* Temperature-rising time (from normal temp to vulcanizing temp):≤50 mins(around 25~30 mins normally)
* Improved cooling system: using pressure pump for cooling:only 5mins (cooling from 145 to 75 degrees)
* Belt width: from 650mm to 3000mm 200PSI alike Uniform Pressure Bag for Conveyor Belt Press
* Degree of the heating platen:22 °/17 °/ 20 ° (rectangle and other degree is optional)
* Waterbag/ air pressure Press for 100PSI, 200PSI etc.
* Surface pressure for textile and steel cord belts, Up to 1.8Mpa.
* 100 p.s.i. (7 kg/cm sq.) units suitable for splicing fabric ply belting
* 200 p.s.i. (14 kg/cm sq.) units suitable for splicing steel cord conveyor belting
* Customization/OEM:Different heating platen size and combination

Main Parts A=Length of platen along belt

B=Width of platen across the belt on the bias

C=Right angle dimension across the belt, plus edge overlap

D=Bias angle

E=Max Splice length

Specifications of ASVP series Belt Joint Vulcanizing Machine
100 PSI(7kg/cm sq.) units suitable for splicing steelcord conveyor belting
Model
Number
Max Belt Width(in) Platen Dimensions Max Splice Length Spanner Bars Qty Bolt/Nut Assy. Main Component Weights
A(mm) B(mm) C(mm) QTY Type Length Platen Bar Bolt/
Nut
Assy.
Total
Weight
in mm in mm in mm in mm in mm in mm kg kg kg kg
ASVP 1930 24 610 19 480 30 760 28 705 13 330 2 sets EA 42 1065 4 25 24 8 225
ASVP 1937 30 760 19 480 37 940 34 870 13 330 2 sets EA 49 1245 4 31 28 8 255
ASVP 1943 36 915 19 480 43 1090 40 1015 13 330 2 sets EA 55 1395 4 36 31 8 281
ASVP 2643 36 915 26 660 43 1090 40 1015 20 510 3 sets EA 55 1397 6 49 31 8 405
ASVP 2843 36 915 28 710 43 1090 40 1015 22 560 3 sets EA 55 1397 6 53 31 8 416
ASVP 3343 36 915 33 840 43 1090 40 1015 27 685 4 sets EA 55 1397 8 62 31 8 522
ASVP 3743 36 915 37 940 43 1090 40 1015 31 785 4 sets EA 55 1397 8 70 31 8 544
ASVP 1950 42 1065 19 480 50 1270 46 1175 13 330 2 sets EA 62 1574 4 42 35 8 311
ASVP 2850 42 1065 28 710 50 1270 46 1180 22 560 3 sets EA 62 1574 6 61 35 8 461
ASVP 3350 42 1065 33 840 50 1270 46 1180 27 685 4 sets EA 62 1574 8 72 35 8 579
ASVP 4250 42 1065 42 1065 50 1270 46 1180 36 915 5 sets EA 62 1574 10 92 35 8 722
ASVP 2856 48 1220 28 710 56 1420 52 1320 13 330 2 sets EA 68 1727 4 47 38 8 336
ASVP 3756 48 1220 37 940 56 1420 52 1320 22 560 3 sets EA 68 1727 6 69 38 8 499
ASVP 4256 48 1220 42 1065 56 1420 52 1320 31 785 4sets EA 68 1727 8 91 38 8 655
ASVP 2656 48 1220 26 660 56 1420 52 1320 36 915 5 sets EA 68 1727 10 103 38 8 783
ASVP 3358 48 1220 33 840 58 1475 54 1370 20 510 3 sets EA 70 1778 6 66 39 8 498
ASVP 3758 48 1220 37 940 58 1475 54 1370 27 686 4 sets EA 70 1778 8 84 39 8 643
ASVP 4558 48 1220 45 1140 58 1475 54 1370 31 785 4 sets EA 70 1778 8 94 39 8 672
ASVP 2858 48 1220 28 710 58 1475 54 1370 39 990 5 sets EA 70 1778 10 114 39 8 824
ASVP 2862 54 1370 28 840 62 1575 57 1460 22 560 3 sets EA 74 1879 6 76 42 8 538
ASVP 3365 54 1370 33 915 65 1650 60 1530 27 685 4 sets EA 77 1955 8 94 43 8 700
ASVP 3665 54 1370 36 1015 65 1650 60 1530 30 760 4 sets EA 77 1955 8 103 43 8 723
ASVP 4068 55 1395 40 480 68 1725 63 1600 34 865 4 sets EAX 80 2032 8 119 55 9 870
ASVP 1969 60 1525 19 610 69 1755 64 1625 13 330 2 sets EA 81 2057 4 57 46 8 392
ASVP 2469 60 1525 24 710 69 1750 64 1625 18 455 3 sets EA 81 2057 6 73 46 8 549
ASVP 2871 60 1525 28 840 71 1800 66 1675 22 560 3 sets EAX 83 2108 6 87 57 9 664
ASVP 3371 60 1525 33 915 71 1800 66 1675 27 685 4 sets EA 83 2108 8 103 47 8 748
ASVP 3671 60 1525 36 1115 71 1800 66 1675 30 760 4 sets EAX 83 2108 8 112 57 9 866
ASVP 4471 60 1525 44 1065 71 1800 66 1675 38 965 5 sets EA 83 2108 10 137 47 8 952
ASVP 4273 60 1525 42 1065 73 1850 68 1720 36 915 5 sets EAX 85 2159 10 134 59 9 1073
ASVP 1984 72 1830 19 480 84 2135 78 1975 13 330 2 sets EAX 96 2438 4 70 66 9 509
ZLJ conveyor belt vulcanizing machines can be used by one or multiple combinations according to the joint length of the belt.The main configuration of a single vulcanizing machine is as following:
Name Amount
The whole machine 1 set
Ratchet wrench 2 piece
steel pad 1 set
Clamping device 1 set
Electric control box 1 set
Power cable 1 root
Control cable 2 root
Thermal resistance 2 pieces
QL electric water pump 1 set
SD Hand pressure pump (Optional) 1 set
Pressure pipe 2 root
Water cooling system (Optional) 1 set


The dimension and shape of the machine can be customized by your requirements.
STYLE design available
Model
Belt width(mm)
Total Power(kw)
Dimensions
(L*W*H mm)
Net Weight
(kg)
Max weight of single
Component after separation(kg)
ZLJ-650*830
650
9.5
1370*830*630
430
45
ZLJ-650*1000
10.8
1370*1000*630
500
66
ZLJ-800*830
800
11.2
1520*830*630
535
70
ZLJ-800*1000
13.5
1520*1000*630
575
79
ZLJ-1000*830
1000
14.1
1720*830*630
595
82
ZLJ-1000*1000
15.7
1720*1000*630
620
95
ZLJ-1600*830
1600
21.5
2320*830*800
1270
120
ZLJ-1600*1000
22.3
2320*1000*800
1460
146
ZLJ-2000*830
2000
27.2
2720*830*950
1760
154
ZLJ-2000*1000
30.0
2720*1000*950
1860
182

OUR PORDUCT
STANDARD EXPORT PACKAGE
About Us Qingdao Antai Mining Machinery Co.,Ltd--China Manufacture of conveyor belt vulcanizing machine Established in 2000 ,Qingdao Antai Mining Machinery Co.,Ltd. is a branch of Antai Heavy Industries Group.Based on 30 years of experience in design and development in the field of industrial equipment and over 17 years in the field of heavy-duty conveyor belts hot splice, the group has successfully achieved a stable position both domestically and internationally.
Over the years, the company's strict quality control and customer-centric guiding ideology help a lot with the development both domestic and overseas. As one of the largest and sustainable development companies in China , our company's quality standard has been appraised by the Ministry of industry and commerce as the industry standard of conveyor belt vulcanizing industry after a series of rigorous evaluation tests.
We have our own R&D team.In 2010, Antai mining Machinery successfully developed an advanced, with independent intellectual property rights of the vulcanizing machine heating elements and pressure components to reduce product failure rate. By now,our heating and pressure components have been widely used by domestic vulcanizing machine manufacturers, greatly improve the international competitiveness of china made vulcanizing machine

FAQ 01) Q: Normal delivery time?
A: We have table produce line, hot sale products normally HAVE STOCK. If customized, need about 15 working days
02) Q: Will you test the machine before shipping?
A: Yes, each machine, we will install and test before shipping. And testing pressure is higher than working pressure.
03) Q: Can you print our logo or without any logo?
A: It's no problem OEM. Before order, please send us the clear document of your logo, also the authorization paper to allow us to print your logo.
04) Q: Whether can visit your workshop and to see how to process the machine?
A: No problems, you are always welcomed to visit us, before order or before shipping.If need to see how to process the machines,
please inform us what type machines you want to see, we will try to prepare the similar machines ready before you come.
05) Q: What's the payment term?
A:Normally we accept T/T 30% as deposit before production, pay the rest before delivery.
We also accept VISA vis Credit Assurance, Paypal and L/C.
