Basic Info.
Machining Process
Hydraulic
Vibrating Amplitude
Motor
Certification
ISO9001: 2000
Transport Package
Nude Package
Production Capacity
50unit/Month
Product Description

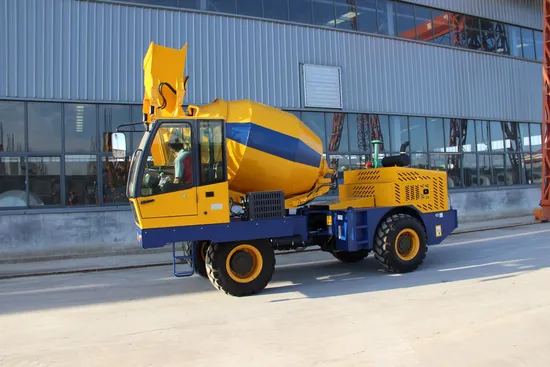

Self loading mobile concrete mixer truck for sale price
Detail photoes
Equipped with driving camera, automatic water feeding & metering system, electronic water suction pump, etc. The mixing drum can be slewed hydraulically through 270 degrees for high discharge over 1.8m on the four sides of the vehicle. The drum can also be lifted up 20° by two hydraulic cylinders at bottom for the convenience of concrete discharge. The vehicle size is small, which is suitable for limited site and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer's houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc High strength steel plate, which enhances the load capacity and high stability of vehicle. The material of rolling ring and mixing drum adopts 16mn high strength steel which uses forging normalizing manufacturing process. Mixing blade is designed with varying pitching angles, which simplifies the feeding device, ensures the speed faster and mixing performance better.
Engine | | |
Model | | YCD4J22G |
Type | | Direct injection,4 cylinders,turbo charge |
Displacement | cc | 4330 |
Cooling | | Water |
Max. Power | kw | 85 |
Max.Torque | nm | 390 |
Transmission | | |
Walking Pump | | Closed piston Eaton walking pump |
Speed | | 2 forward gears 2 reverse gears |
Gear 1 Speed(forward&reverse) | km/h | 0-5 |
Gear 2 Speed(forward&reverse) | km/h | 5-22 |
Wheel | | |
Tires | | 15.5/65-18 |
Max. Load | kg | 5150 |
Brake | | |
Wheel Brake | | Air brake |
Parking Brake | | Negative type with internal wheel hub discs on the front axle |
Water System | | |
Water Pump | | 24V "Self-priming" volumetric water pump with quick-suction |
Internal Suction Pump Max.Capacity | L/min | 90 |
External Suction Pump Max.Capacity | L/min | 150 |
Tanks Total Capacity | L | 2×285 |
Water Feeding Contral | | Electromagnetic button inside cabin |
Mixing and Unloading | | |
Type | | Double-cone drum with double-spiral mixing screws and convex bottom |
Geometrical Drum Volume | L | 5300 |
Drum Rotation Speed | rpm | 20 |
Concrete Producing Volume | m³/Batch | 3.5 |
Drum Rotation Degree | degree | 270 |
Hydraulic System | | |
Pump Brand | | Eaton |
Max. Flow Rate | L/min | 64/39/20 |
Maximum Pressure | mpa | 42 |
Mixing Motor | | Eaton (closed circuit) |
Control | | Multi-function joystick |
Loader | | |
Volumetric Capacity | L | 600 |
Control | | Mechanical lever |
Cabin | | |
Standard | | Heater,tilting front window,suspension seat |
Service Refill Capacities | | |
Fuel Tank | L | 120 |
Hydraulic System Capacity | L | 220 |
Engine Oil | L | 16 |
Weight | | |
Operating Weight | kg | 5500 |
Max. Gross Weight | kg | 12000 |
Load-carry Capacity | kg | 6250 |
Successful Project
self loading concrete mixer truck in the Philippines
self loading concrete mixer truck in Cuba
self loading concrete mixer truck in Myanmar
Cooperative Partners
Product Overview
self loading concrete mixer truck features 1. The main hydraulic components are all imported;
2. Save electricity 100 degrees every day without a blender;
3. Don't need concrete mixer truck anymore ;
4. No need wheel loader to load material anymore ;
5. The counterweight mounted on the heavy duty saddle can be hydraulically slewed at 270°and automatically locked by a hydraulic brake.
6. Thickness and material of mixing tank with high strength steel 4-5mm
Self loading mixer truck advantages
1.Save labor. Self loading concrete mixer truck only need 2 workers to operate., no more need of 12 transporter, 4 loaders, 1 operator , 3 distributors and 2 water loader in generally . So you can save the money back in three months.
2. Produce high quality concrete. Aimix self concrete mixer truck have weighing system to keep the concrete is of good quality. 3.The Voltage can be changed according your request.
Packing & Delivery
Packaging
|
Size
| 3800(L) * 1680(W) * 2500(H)
|
Weight
| 5500KG
|
Packaging Details
| One 40'HC container can pack 2 units with disassemble the cabin, drum, tires, etc. by Sea. One 17.5M truck can pack 4units with assembled by land.
|
Established in 2005, Qingzhou Hongyuan Vehicles Co., Ltd is a professional manufacturer and exporter of
wheel loaders. We are located in Qingzhou City, Shandong Province, with convenient transportation access.All
of our products comply with international quality standards and are greatly appreciated in a variety of different
markets throughout the world. We have over 100 employees to reach an annual sales e that exceeds
USD10,000,000, and we are currently exporting 100% of our product worldwide.We also have approved Real CE
Certificate through Germany TUV company.
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to
guarantee total customer satisfaction. We have successfully studied and developed Wheel Loader ZL06,ZL08,ZL10,ZL12,ZL15,
ZL16,ZL18,ZL20,ZL30,ZL50, etc. Series mini loader and medium size wheel loader with more
than 30 kinds of Accessories. We also developed Self loading concrete mixer truck, Telescopic loader, Backhoe loader, Off-road forklift,
Sugarcane loader, Site Dumper, etc. As a result of our high quality products and outstanding customer service, we have
exported to Germany, Sweden, Finland, Poland, Norway, Hungary, Austria, Belgium, Netherlands, Estonia,
Moldova, Turkey, Iraq, Libya, Uganda, Russia, Japan, Korea, Malaysia, Indonesia, Vietnam, Cambodia, Australia,
Canada, USA, Brazil, Argentina, Uruguay etc.
If you are interested in any of our products or would like to discuss a customer order, please feel free to
contact us. We are looking forward to forming successful business relationships with new clients around the
world in the future.
FAQQ: How can we guarantee quality?A:Always a pre-production sample before mass production;Always final Inspection before shipment.Q:What can you buy from us?A:Construction Machinery.Q: Why should you buy from us not from other suppliers?A:As a combination of production and trade ,industry and trade integration of business enterprises., we have our own skid steer loader, backhoe loader, wheel loader, telescopic loader, mini excavator and self loading concrete mixer.Q:What services can we provide?A:Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Arabic,French,Russian.
