Automatic Competive Mini Vegetable Sunflower Palm Coconut Peanut Edible Cooking Oil Processing Refining Machine Plant Small Scale Cooking Crude Oil Refinery
| US$1,899.00-1,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
VIC-50A
Type
Oil Refinery
Application
oil processing
Voltage
380V
Appearance
Horizontal
Press Materials
Edible Oil
Press Series
Fourth
Condition
New
Customized
Customized
Performance
Automatic
Structure
Fixed
Usage
Oil Refinery
Materials
Stainless Steel
English manual
Yes
Delivery Time
5-7 days
Capacity
80 KG/TIME
Power
7.47kw
Name
oil refinery machine
Transport Package
Wooden Fumigated Box
Specification
CE, ISO
Trademark
VIC
Origin
China
Production Capacity
100set/Month
Packaging & Delivery
Package Size
160.00cm * 62.00cm * 140.00cm
Package Gross Weight
140.000kg
Product Description
Automatic Competive Mini Vegetable Sunflower Palm Coconut Peanut Edible Cooking Oil Processing Refining Machine Plant Small Scale Cooking Crude Oil Refinery Product DescriptionApplication:
This is mini oil refinery have the decolorizing port, refinery port, refined oil pot, with the auto temperature equipment, can achieve crude oil degumming, deacidification, drying and decolorization function.
The final oil reach national edible oil standard, directly filling to sale for small-scale processing and oil processing plant.
Advantages:
1.The machine is made of stainless steel, can achieved, dealkalization, dehydration function, according to user needs can also be heated bleaching.
2.Large-scale oil refining equipment miniaturization most economical, oil temperature artificially controlled, all displayed by the meter.
3.Work continuously and efficiently without stop
4.The operation is easy and safe with protector.
5.One process will take about 2.5-3 hours.
Technical data:
| Model | VIC-50A | VIC-75B | VIC-75C |
| Capacity/ time | 80kg | 200kg | 200kg |
| Required time/batch | 3.5hours | 3hours | 2.5hours |
| Heating Power | 2kwX3/6kw | 3kwX6/18kw | 3kwx9/27kw |
| Size | 1.5x0.58x1.35m | 3.12x0.83x1.55m | 3.9x0.83x1.550m |
| Weight | 140kg | 300kg | 350kg |
| Gas pump power | 1.1kw | 1.1kw | 1.1kw |
| Mixer power | 0.25X1/0.25kw | 0.25X2/0.5kw | 0.25X3/0.75kw |
| Oil pump power | 0.37kw | 0.75kwx2 | 0.75kwx3 |
More pictures and details
Product structure:
| 1 | Mixing motor | 2 | Mixing tank |
| 3 | Machine frame | 4 | Oil pump inlet oil valve |
| 5 | Discharge degumming valve | 6 | Moving wheels |
| 7 | Filtering tank oil recycling pipe | 8 | Gear oil pump |
| 9 | Three way valves | 10 | Gas pump |
| 11 | Finished oil inlet pipe | 12 | Discharge degumming valve |
| 13 | Finished oil tank | 14 | Control panel |
| 15 | Discarge gas valve | 16 | Filter tank |
| 17 | Filter tankPressure meter | 18 | Air in valve |
| 19 | Safe air out valve | 20 | Product marks |

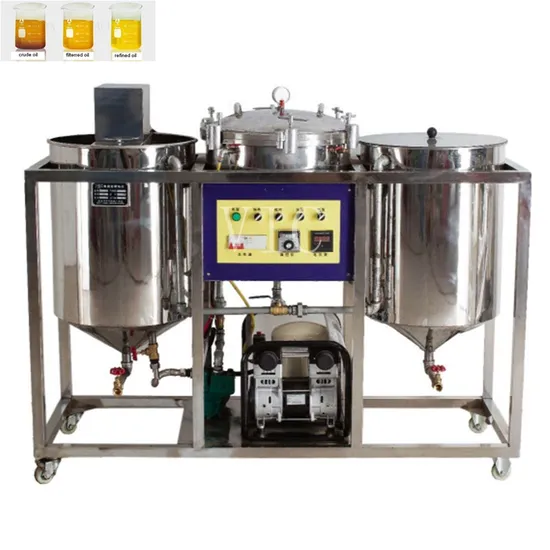

VIC-50A oil refienry
Control system
Air pump
VIC-75B oil refinery machine
VIC-75C oil refinery
VIC-100S Oil refinery equipment with deodorization
Final oil
Package picture
Factory view
Company certification
After-sales service
